1ED3323MC12N

8.5 A, 5.7 kV (rms) single-channel isolated gate driver with short-circuit protection and active Miller clamp, UL 1577 & VDE 0884-11 certified
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1ED3323MC12N
1ED3323MC12N
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Isolation Type
    Galvanic isolation - Reinforced
  • Output Current (Sink)
    8.5 A
  • Output Current (Source)
    6 A

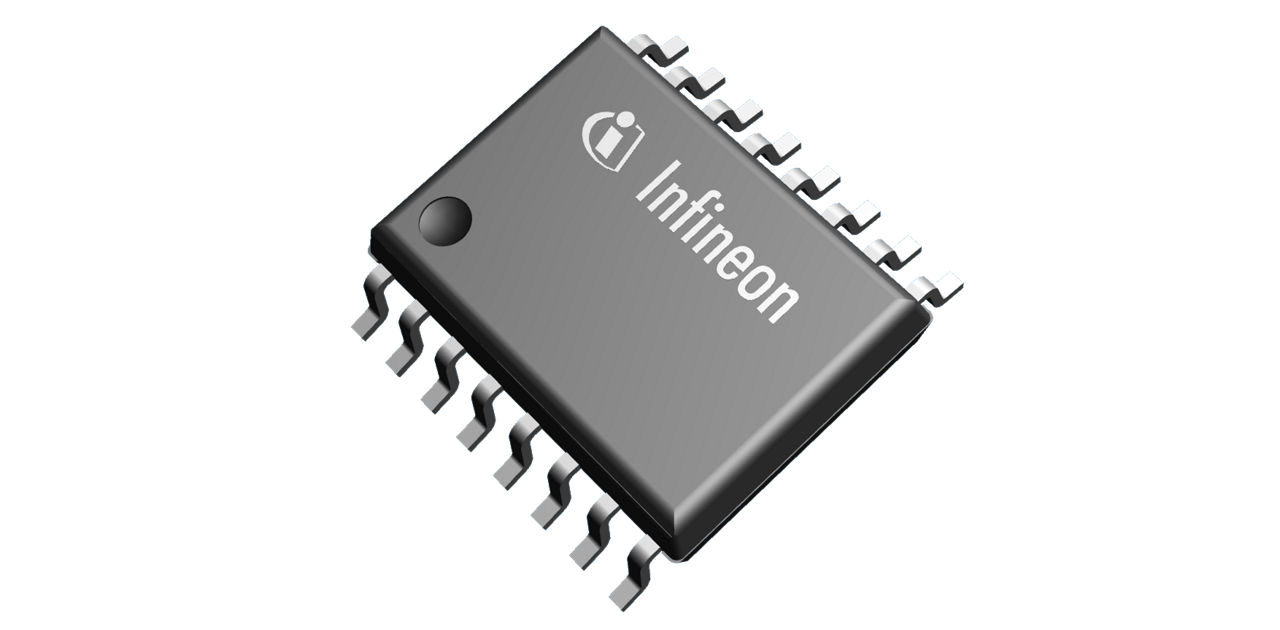

  • Package
    PG-DSO-16
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    85 ns
  • Turn On Propagation Delay
    85 ns
  • VBS UVLO (On)
    12 V
  • VBS UVLO (Off)
    11 V
  • Voltage Class
    2300 V
Recommended
OPN
1ED3323MC12NXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-16
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-16
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ Enhanced single-channel isolated gate driver with +6 A / -8.5 A typical sourcing and sinking peak output current in a DSO-16 wide body package with 8 mm creepage for IGBTs, MOSFETs and SiC MOSFETs. 1ED3323MC12N belongs to the EiceDRIVER™ Enhanced 1ED332x family (F3 family). 1ED3323 offers short-circuit protection (DESAT) for IGBTs and SiC MOSFETs. The driver IC operates over a wide supply voltage range, either unipolar or bipolar and has tight part-to-part propagation delay matching.

Features

  • Single channel isolated gate driver
  • For up to 2300 V Si & SiC switches
  • Galv. isolated coreless transformer
  • +6A/-8.5A typ sink/source peak out.
  • Precise VCEsat detection (DESAT)
  • Soft turn-off
  • 40 V absolute max. output voltage
  • 85 ns propagation delay
  • High CMTI >300 kV/μs
  • Short-circuit clamping
  • Active Miller Clamp
  • DSO-16 300 mil wide-body package
