1ED3250MC12H

10 A, 5.7 kV (rms) single-channel isolated gate driver with two-level slew-rate control and active Miller clamp, UL 1577 & VDE 0884-11 certified
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1ED3250MC12H
1ED3250MC12H
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Input Vcc
    3.1 V to 17 V
  • Isolation Type
    Galvanic isolation - Reinforced
  • Output Current (Sink)
    10 A
  • Output Current (Source)
    5 A

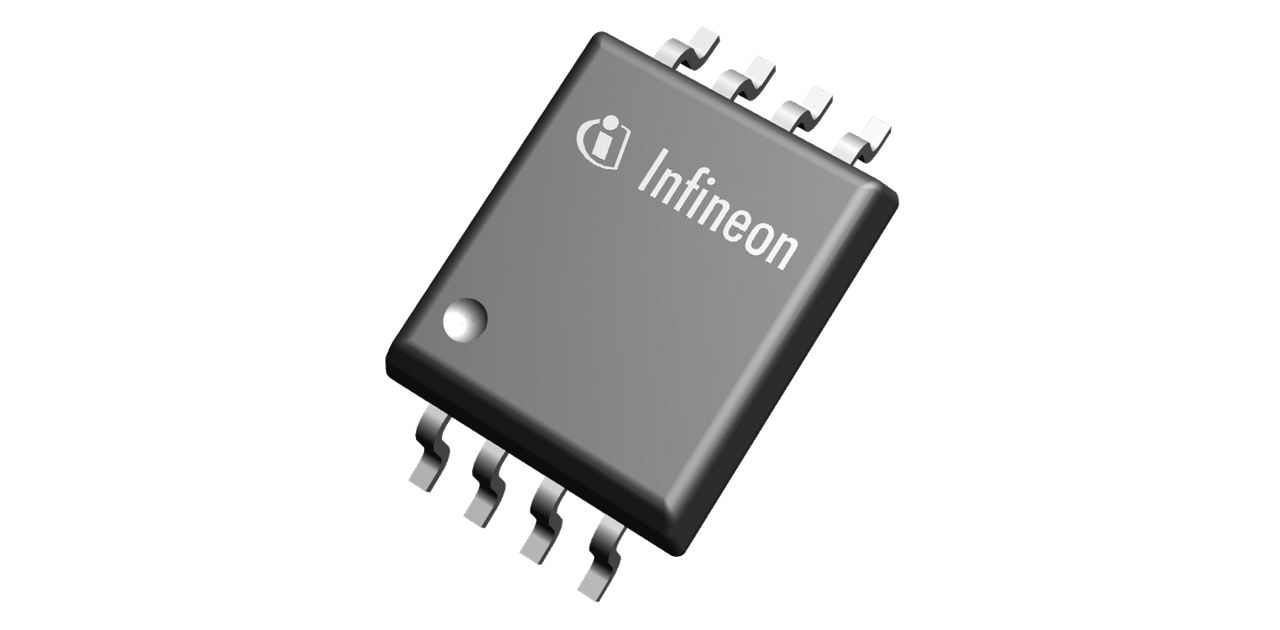

  • Package
    PG-DSO-8
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    110 ns
  • Turn On Propagation Delay
    110 ns
  • VBS UVLO (On)
    12.5 V
  • VBS UVLO (Off)
    10.4 V
  • VCC UVLO (On)
    3.1 V
  • VCC UVLO (Off)
    2.5 V
  • Voltage Class
    2300 V
Recommended
OPN
1ED3250MC12HXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ Compact single-channel isolated gate driver with two-level slew-rate control, active Miller clamp and 10 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance for IGBTs, MOSFETs and SiC MOSFETs. It offers two separate outputs with 10 A typical peak output current to control two independent gate resistances for turn-on thus enabling two-level slew-rate control.

Features

  • Single channel isolated gate driver
  • 2-level slew-rate control (2L-SRC)
  • For up to 2300 V Si & SiC switches
  • 2300 V funct. offset volt. capable
  • Galv. isolated coreless transformer
  • 10 A typ sink & source peak output
  • 40 V absolute max. output voltage
  • Max. 110 ns propagation delay
  • High CMTI >200 kV/μs
  • Active Miller Clamp
  • Short-circuit clamping
  • DSO-8 300 mil wide-body package
