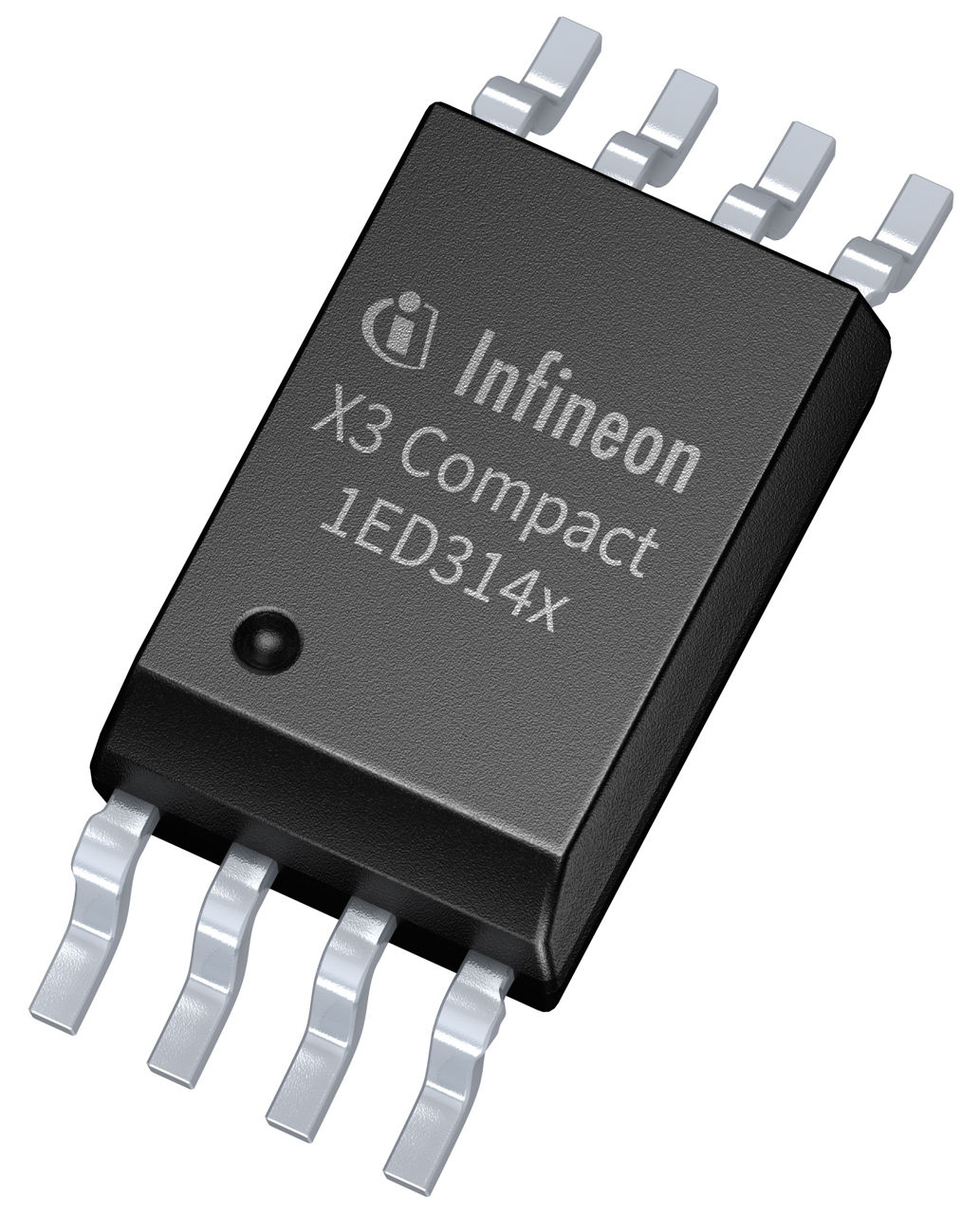

1ED3144MC12H

5.7 kV single-channel gate driver IC with reinforced isolation, 6.5 A output current, UVLO referenced to GND2, 12.5 V UVLO
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1ED3144MC12H
1ED3144MC12H
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Input Vcc
    3 V to 15 V
  • Isolation Type
    Galvanic isolation - Reinforced
  • Output Current (Sink)
    6.5 A
  • Output Current (Source)
    6 A
  • Package
    PG-LDSO-8
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    40 ns
  • Turn On Propagation Delay
    40 ns
  • VBS UVLO (On)
    13.6 V
  • VBS UVLO (Off)
    12.55 V
  • Voltage Class
    2300 V
Recommended
OPN
1ED3144MC12HXUMA1
Product Status active and preferred
Infineon Package
PG-LDSO-8
Package Name N/A
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-LDSO-8
Package Name -
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • For up to 2300 V IGBT, Si & SiC switches
  • 2300 V funct. offset volt. capable
  • Galv. isolated coreless transformer
  • Up to 6.5 A typical peak output current
  • 40 ns propagation delay
  • 35 V abs. max. output supply voltage
  • High CMTI > 300 kV/µs
  • Active shutdown, short circuit clamping
  • 3.3 V and 5 V input supply voltage
  • 12.5/13.6 V UVLO protection w/ hysteresis
  • UVLO referenced to GND2

Benefits

  • 8 mm in.-to-out. creepage & clearance
  • 7 ns max part-to-part prop. delay skew
  • CTI 600 package
  • Overtemperature protection
  • IEC 60747-17 (planned), UL 1577
  • VIORM = 1767 V (peak, reinforced)
  • VISO = 6.84 kV (rms) for 1 second
  • VISO = 5.7 kV (rms) for 1 min
