1ED21271S65F

650 V high-side gate driver IC with over current protection (OCP), multi-function RCIN/Fault/Enable (RFE) and integrated bootstrap diode (BSD)
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1ED21271S65F
1ED21271S65F
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Input Vcc
    8 V to 22 V
  • Isolation Type
    Functional levelshift SOI (Silicon On Insulator)
  • Output Current (Source)
    4 A
  • Output Current (Sink)
    4 A
  • Package
    PG-DSO-8
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    55 ns
  • Turn On Propagation Delay
    55 ns
  • VBS UVLO (On)
    7.2 V
  • VBS UVLO (Off)
    6.8 V
  • VCC UVLO (Off)
    6.8 V
  • VCC UVLO (On)
    7.2 V
  • Voltage Class
    650 V
Recommended
OPN
1ED21271S65FXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

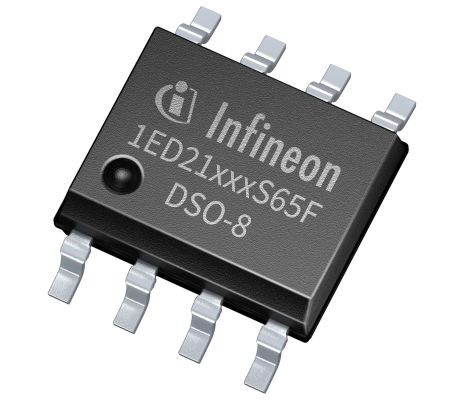

EiceDRIVER™ 650 V high side single channel gate driver IC with a typical 4 A source and 4 A sink current in DSO-8 package for IGBTs, MOSFETs and SiC MOSFETs.

Features

  • Infineon thin-film-SOI-technology
  • Maximum blocking voltage +650 V
  • Output source/sink current +4 A/ -4 A
  • Maximum supply voltage of 25 V
  • Integrated Bootstrap Diode
  • Negative VS transient immunity of 100 V
  • Over current & under voltage protection
  • Multi-function RFE pin functionality
  • Less than 100 ns propagation delay
  • DSO-8 package
  • RoHS compliant

Benefits

  • Excellent ruggedness and noise immunity
  • High current output stage
  • Power switch protection integrated
  • Fault feedback provided
