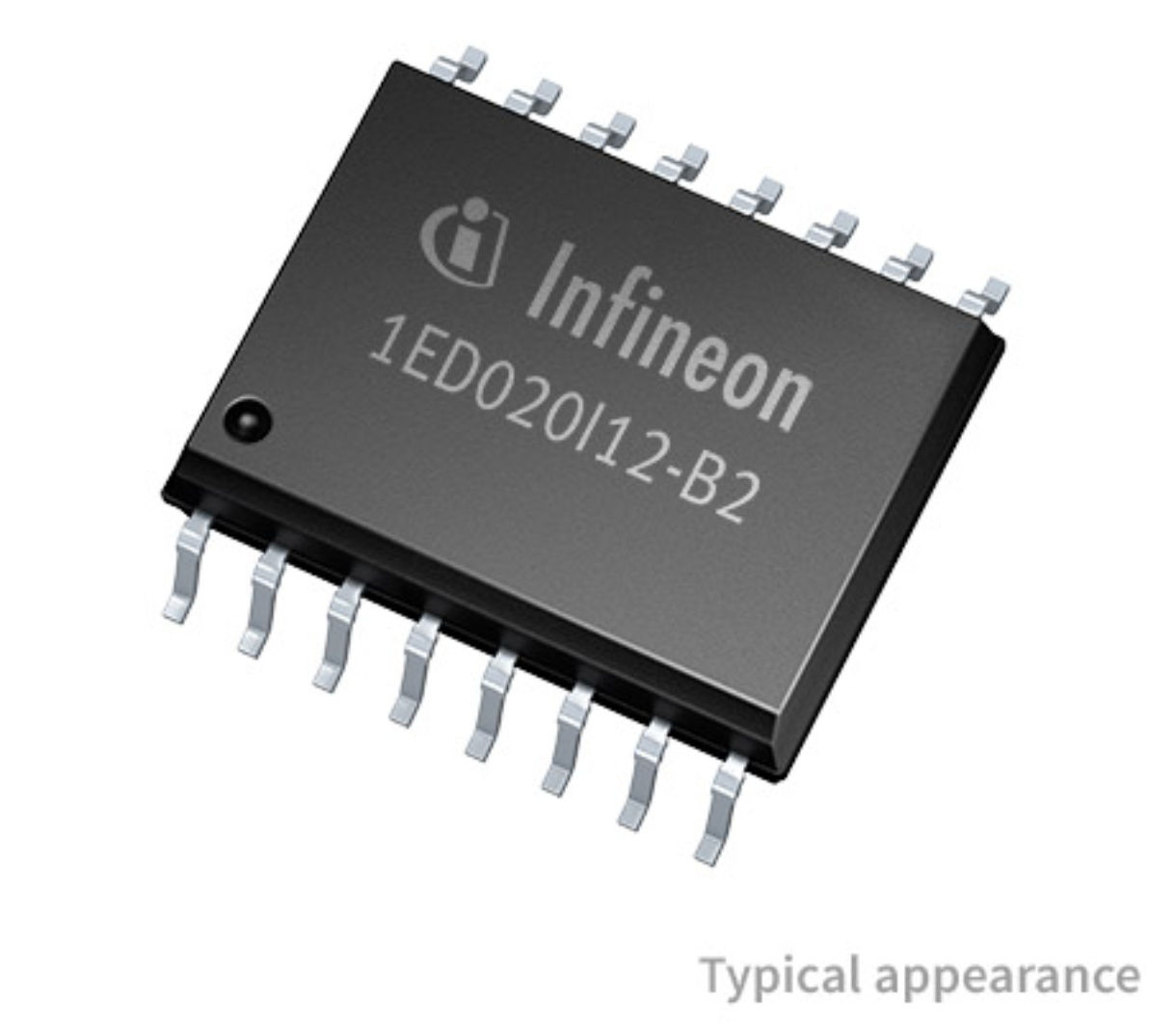

1ED020I12-B2

1200 V single high-side gate driver IC with UL certification, active Miller clamp, DESAT and short circuit clamping
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

1ED020I12-B2
1ED020I12-B2
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Input Vcc
    4.5 V to 5.5 V
  • Isolation Type
    Galvanic isolation - Basic
  • Output Current (Sink)
    2 A
  • Output Current (Source)
    2 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    165 ns
  • Turn On Propagation Delay
    170 ns
  • VBS UVLO (On)
    11.9 V
  • VCC UVLO (Off)
    3.8 V
  • VCC UVLO (On)
    4.1 V
  • Voltage Class
    1200 V
OPN
1ED020I12B2XUMA1
Product Status not for new design
Infineon Package
PG-DSO-16
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-DSO-16
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ 1200 V galvanic isolated single channel gate driver in DSO-16 wide body package that provides an output current capability of typically 2 A. All logic pins are 5 V CMOS compatible and could be directly connected to a microcontroller. The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology. The 1ED-B2 provides several protection features like IGBT desaturation protection, active Miller clamping, and active shut down.

Features

  • Single channel isolated gate driver
  • For up to 1200 V Si & SiC switches
  • 2 A rail-to-rail typ output current
  • Precise DESAT protection
  • Active Miller Clamp
  • Short circuit clamping
  • 28 V max. output supply voltage
  • 170/165 ns typ. propagation delay
  • 12/11 V output UVLO
  • ≥ 100 kV/µs CMTI
  • Certified according to UL 1577
  • Basic isol. tested acc. VDE 0884-10

Benefits

  • Tight propagation-delay matching: tolerance improves application robustness without variations due to aging, current, and temperature
  • Precise, integrated filters reduce propagation-delay variation over a wide range of operating conditions; reduce the need of external filters
  • Tight propagation delay allows minimum deadtime improving system efficiency and decreasing harmonic distortion
  • Wide body package with 8 mm creepage distance
  • Immunity against negative and positive transients, increases reliability of the end product
  • Low power losses for switching frequencies into MHz range

Diagrams

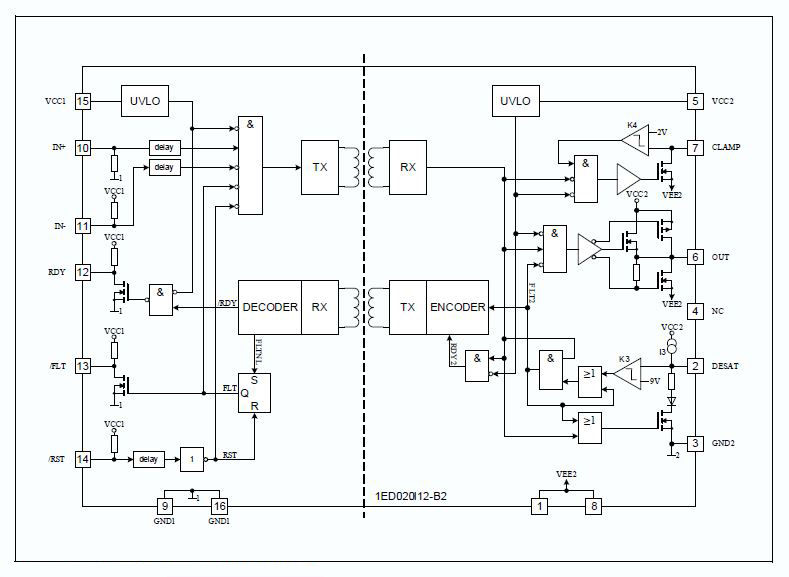

Circuit_diagram_1ED020I12-B2
Circuit_diagram_1ED020I12-B2
Circuit_diagram_1ED020I12-B2 Circuit_diagram_1ED020I12-B2 Circuit_diagram_1ED020I12-B2
×
