PG-UFLGA-34-1

Download 3D model

Package details

  • Package Material
    PG
  • Package Family
    PG-UFLGA
  • Terminals
    34
  • Variant
    1
  • Exposed Paddle
    No
  • Body Length (mm)
    4.0
  • Body Width (mm)
    6.0
  • Min. Terminal Pitch ()
    0.0
Infineon land grid array packages (LGA) are offered as various families. They are available as thin (T) and ultra thin (U) versions. Fine-pitch variants (F) are specifically designated. The LGA concept utilizes an overmolded laminate substrate to connect on the bottom of the package rather than around its perimeter. The leadless, bottom-terminated connection design allows for high-throughput board mounting using surface mount technology (SMT). Typical products are memories, gate driver ICs, GaN transistors, integrated power stages, switches, and tuners.

Image Gallery

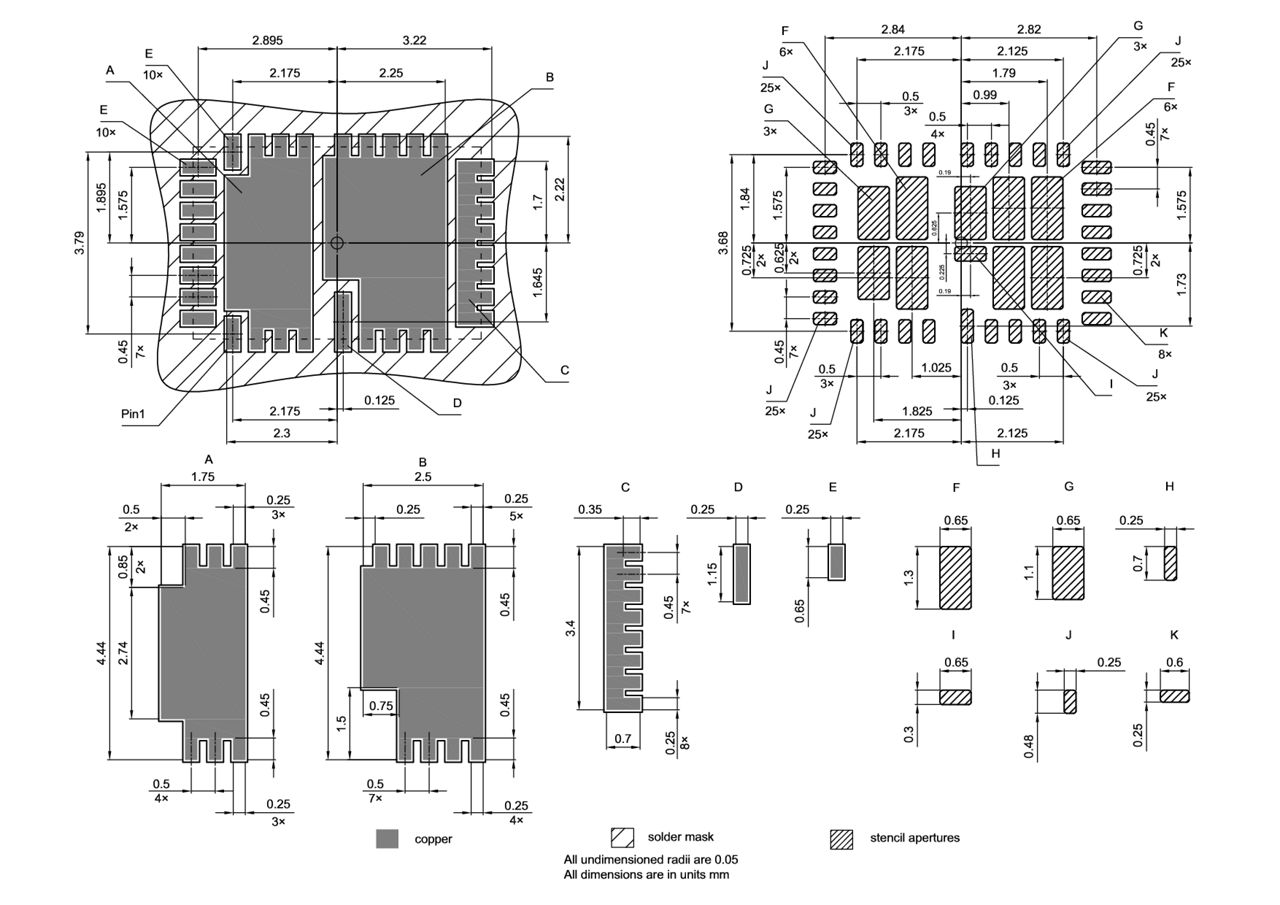

PG-UFLGA-34-1_Footprint Drawing
PG-UFLGA-34-1_Footprint Drawing
PG-UFLGA-34-1_Footprint Drawing PG-UFLGA-34-1_Footprint Drawing PG-UFLGA-34-1_Footprint Drawing

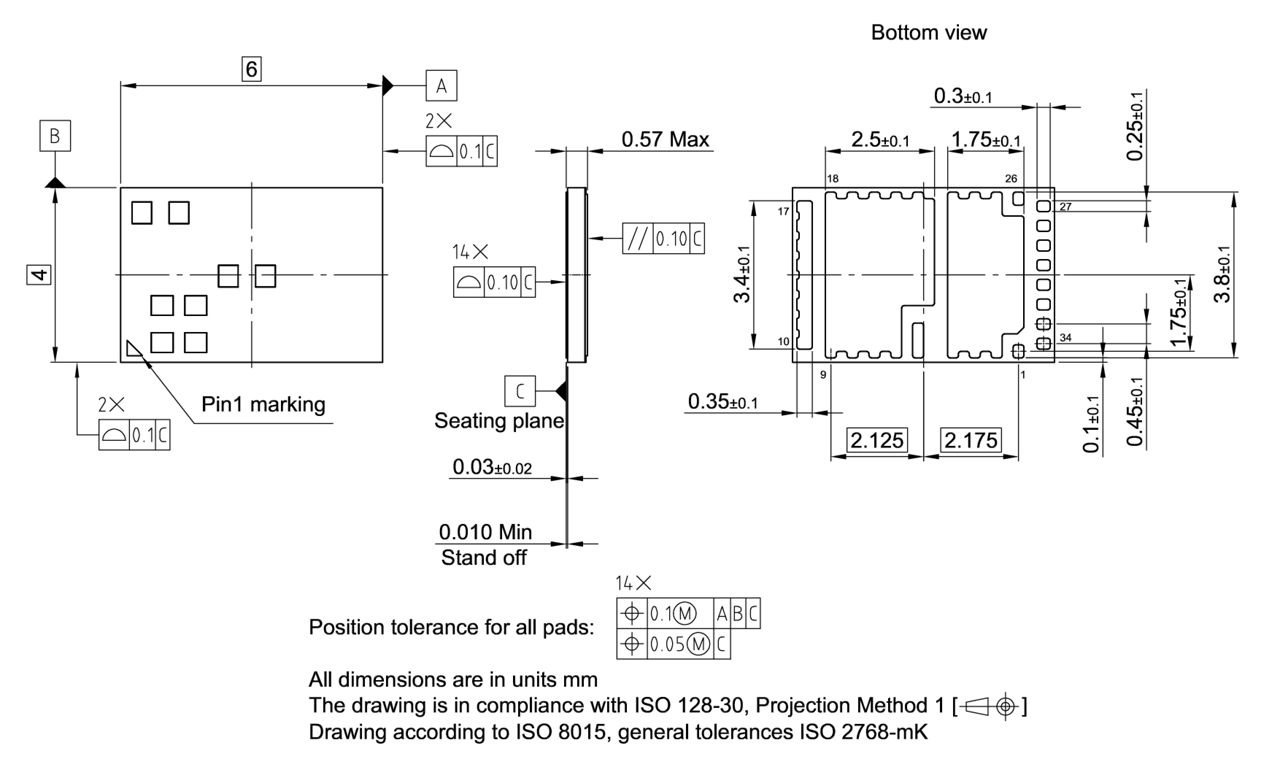

PG-UFLGA-34-1_Package Outline PG-UFLGA-34-1_Package Outline PG-UFLGA-34-1_Package Outline

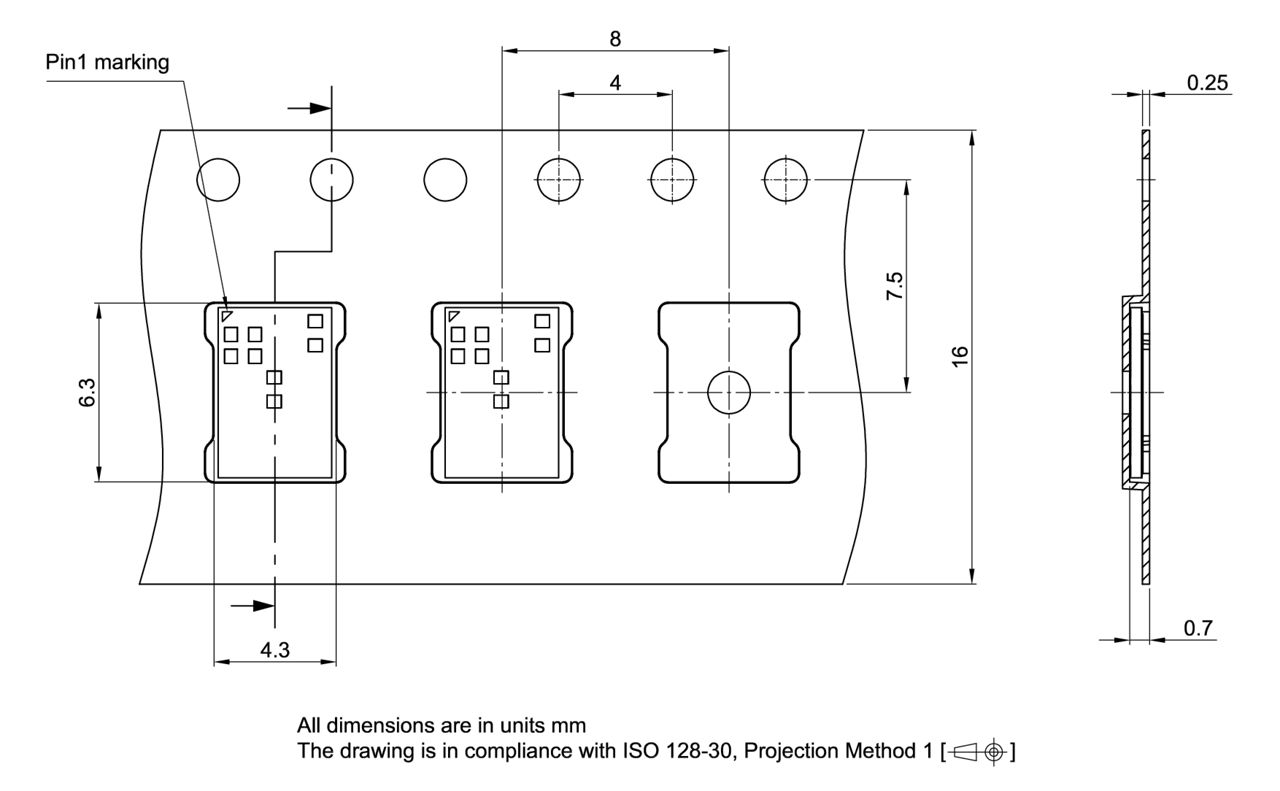

PG-UFLGA-34-1_Tape and Reel_2 PG-UFLGA-34-1_Tape and Reel_2 PG-UFLGA-34-1_Tape and Reel_2
×
