KIT_PSE84_EVAL

PSOC™ Edge E84 Evaluation Kit
board
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_PSE84_EVAL
KIT_PSE84_EVAL

Product details

  • Bluetooth Standard
    BT/BLE 5.4
  • CapSense
    PSOC™ 4000T CAPSENSE™ Co-processor
  • Core
    Cortex-M55 and Cortex-M33
  • Device
    PSOC™ Edge E84 MCU
  • External memory
    16MB Flash Memory, 16MB PSRAM Memory, 1 Gbit Octal-SPI NOR flash
  • Family
    32-bit PSOC™ Edge Family
  • Features
    3x User LED's and 2x User button
  • GPIOs/Shield Compatibility
    Arduino UNO, Infineon’s Shield2Go, mikroBUS
  • Hardware Compatibility
    N/A
  • Programmer/Debugger
    Onboard KitProg
  • Sensors
    XENSIV™ MEMS analog and PDM microphones
  • Software Support
    ModusToolBox and DEEPCRAFT™
  • WiFi Standard
    Wi-Fi 6/6E (802.11ax)
Recommended
OPN
KITPSE84EVALTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The PSOC™ Edge E84 Evaluation Kit is a hardware evaluation platform for rapid prototyping of applications based on the PSOC™ Edge MCU family. Featuring the PSOC™ Edge E84 MCU, high-performance, low-power, secured MCUs with advanced machine learning (ML) acceleration for next generation AI/ML applications, this evaluation kit provides easy access to all the device interfaces and capabilities.

Features

  • Cortex®-M55 CPU with Helium™ DSP
  • Advanced ML with Arm Ethos™-U55 NPU
  • Low-Power Cortex®-M33
  • NNLite ultra-low power NPU
  • Analog and Digital Microphones
  • State-of-the-Art Secured Enclave
  • DEEPCRAFT™ Support
  • Integrated Programmer/Debugger

Benefits

  • Edge AI acceleration for next-gen apps
  • End-to-end ML Solution w/ DEEPCRAFT™
  • Multiple sensors to collect data
  • Rich peripheral set to reduce BOM

Bill of Material

Documents

Documents

Design resources

Diagrams

KIT PSE84 EVAL Kit contains
KIT PSE84 EVAL Kit contains
KIT PSE84 EVAL Kit contains KIT PSE84 EVAL Kit contains KIT PSE84 EVAL Kit contains

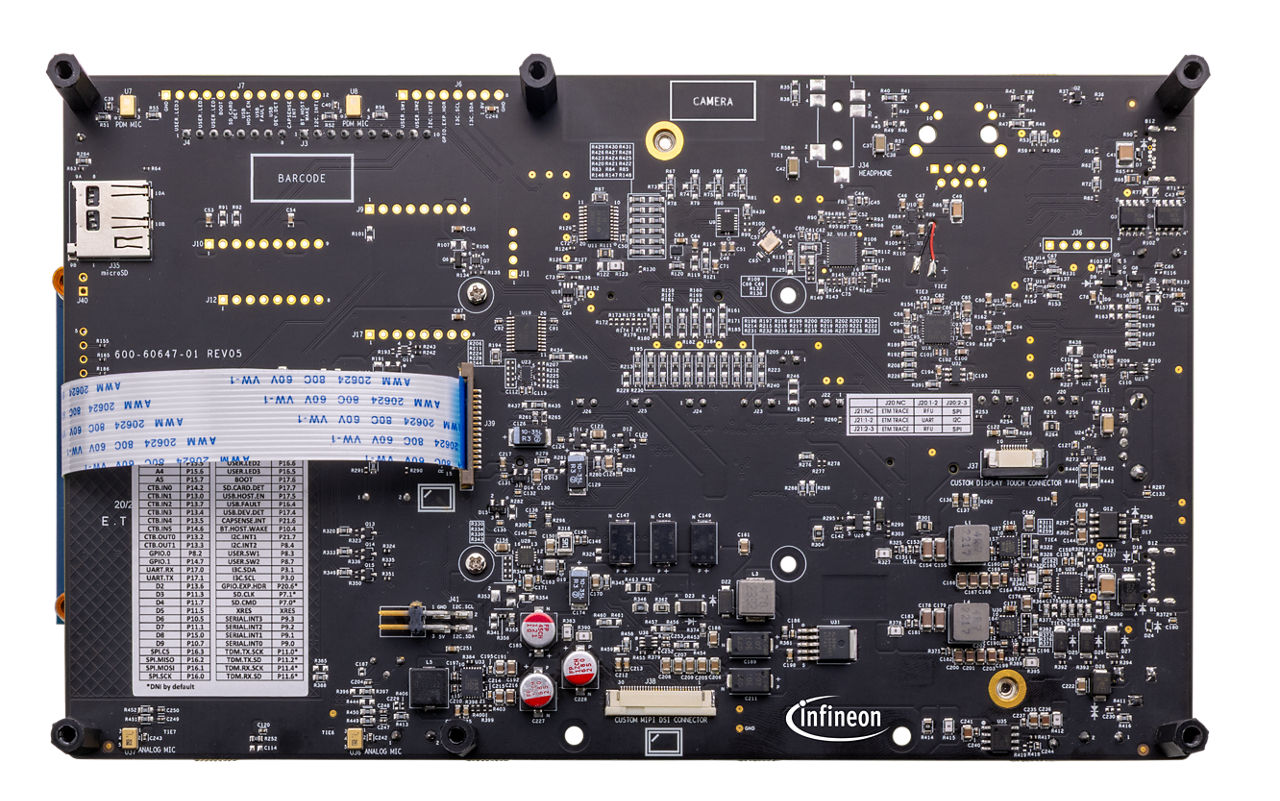

KIT PSE84 EVAL 3 KIT PSE84 EVAL 3 KIT PSE84 EVAL 3
KIT PSE84 EVAL 2 KIT PSE84 EVAL 2 KIT PSE84 EVAL 2

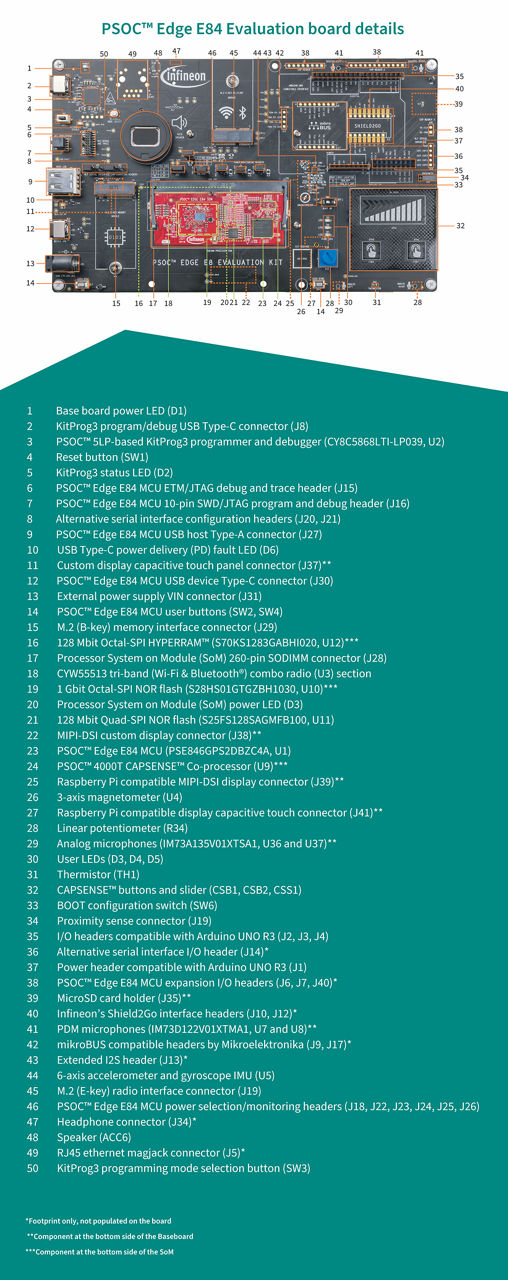

KIT_PSE84_EVAL board details KIT_PSE84_EVAL board details KIT_PSE84_EVAL board details
×
