KIT_PSE84_AI

PSOC™ Edge E84 AI Evaluation Kit
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_PSE84_AI
KIT_PSE84_AI
ea.

Product details

  • Bluetooth Standard
    BT/BLE 5.4
  • CapSense
    None
  • Core
    Cortex-M55 and Cortex-M33
  • Device
    PSE846GPS2DBZC4
  • External memory
    64MB Flash Memory, 16MB PSRAM Memory
  • Family
    32-bit PSOC™ Edge Family
  • Features
    2x User LED's, 1x RGB LED's and 1x User button
  • GPIOs/Shield Compatibility
    N/A
  • Hardware Compatibility
    N/A
  • Programmer/Debugger
    Onboard KitProg
  • Sensors
    Barometric Pressure Sensor (DPS368), 60GHZ Radar Sensor (BGT60TR13C)
  • Software Support
    ModusToolbox™ and DEEPCRAFT™
  • WiFi Standard
    Wi-Fi 6/6E (802.11ax)
Recommended
OPN
KITPSE84AITOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

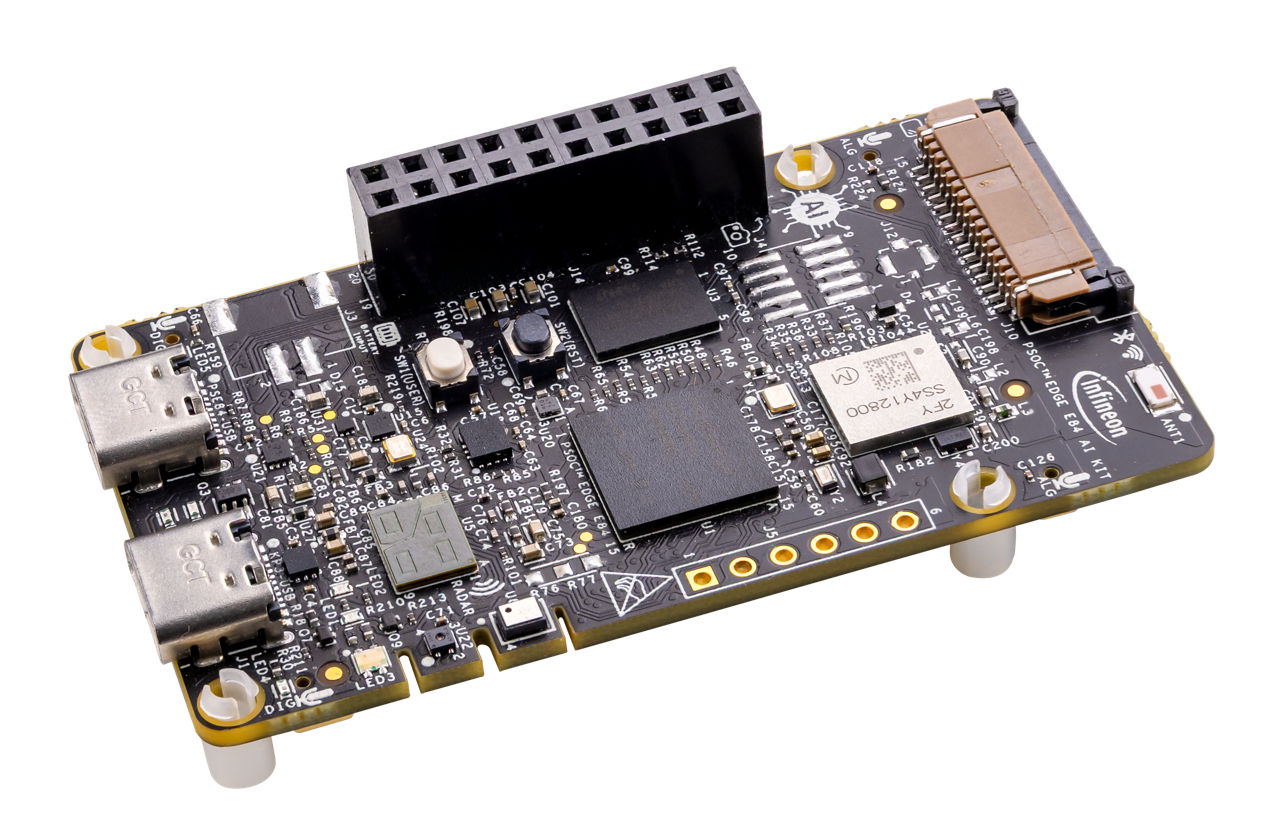

The PSOC™ Edge E84 AI Evaluation Kit is a hardware platform focused on Machine Learning (ML) and Edge AI. It enables customers to evaluate Infineon's ML platform DEEPCRAFT™ Studio, as well as ready to deploy ML models, and other software products. This evaluation kit is optimized for rapid prototyping and development of embedded systems, leveraging the versatile PSOC™ Edge E84 MCU.

Features

  • Advanced ML with Arm Ethos™-U55 NPU
  • Cortex®-M55 CPU with Helium™ DSP
  • Low-Power Cortex®-M33
  • NNLite ultra-low power NPU
  • Analog and Digital Microphones
  • XENSIV™ 60GHZ radar sensor
  • Digital barometric air pressure sensor
  • DEEPCRAFT™ Support

Benefits

  • Edge AI acceleration for next-gen apps
  • End-to-end ML Solution w/ DEEPCRAFT™
  • Multiple sensors to collect data

Bill of Material

Documents

Documents

Design resources

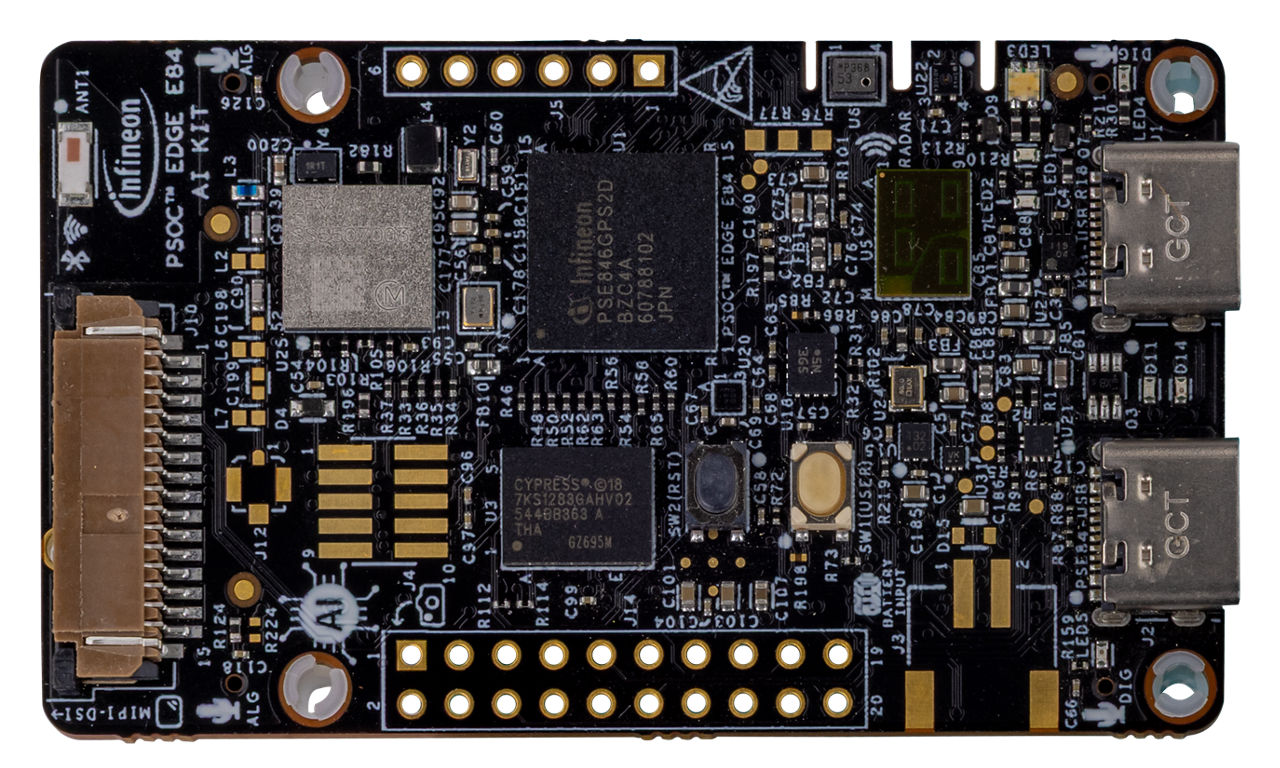

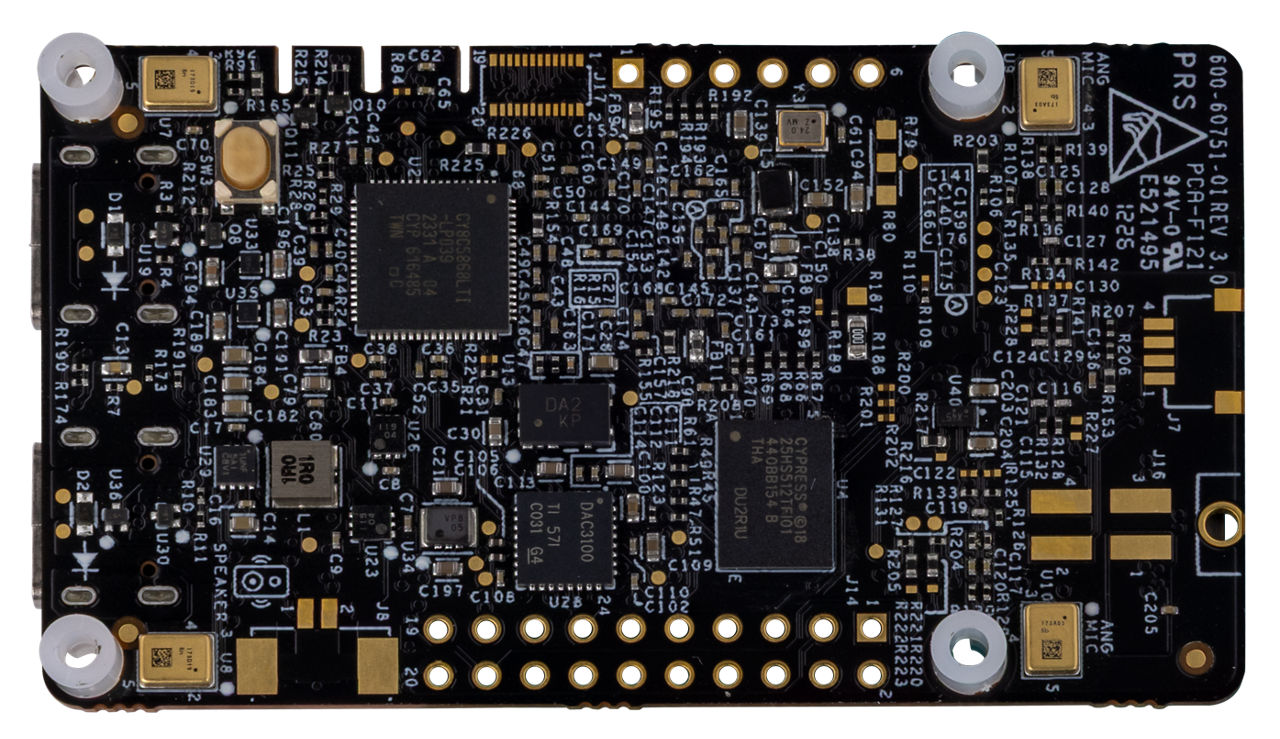

Diagrams

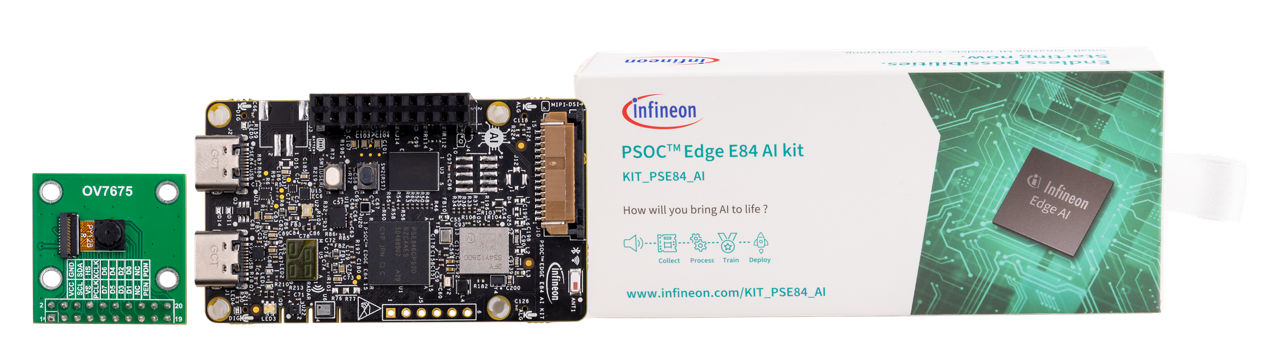

KIT PSE84 AI Kit contains
KIT PSE84 AI Kit contains
KIT PSE84 AI Kit contains KIT PSE84 AI Kit contains KIT PSE84 AI Kit contains

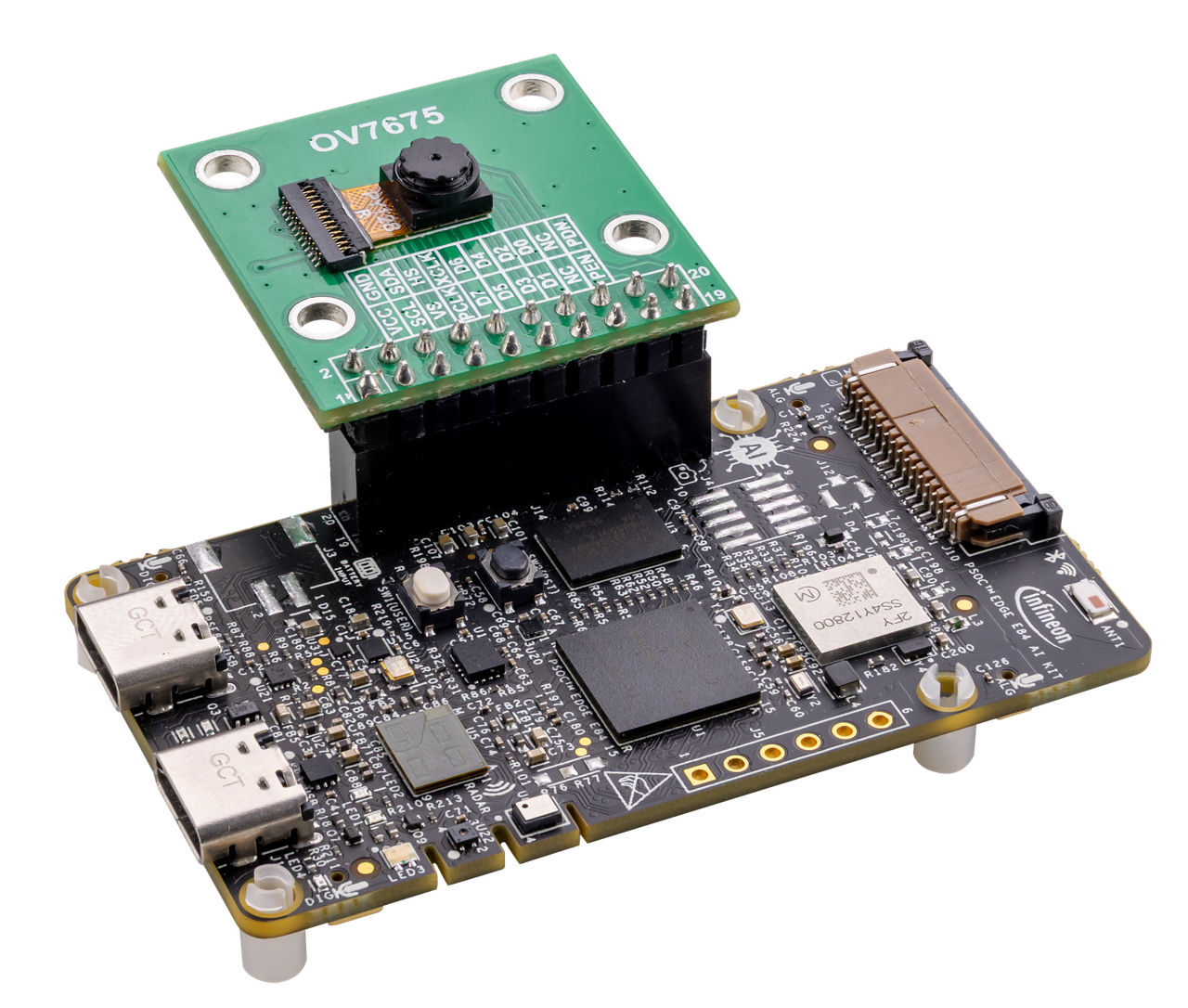

KIT PSE84 AI 2 KIT PSE84 AI 2 KIT PSE84 AI 2

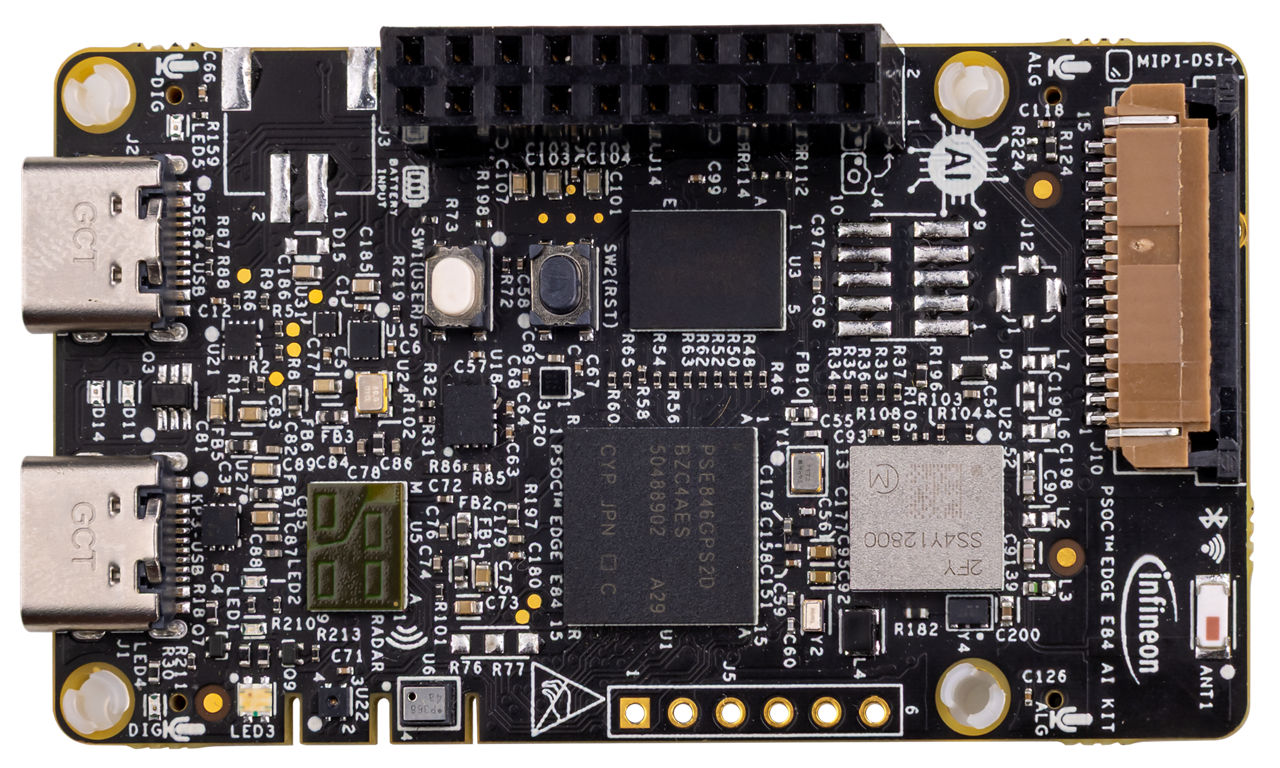

KIT PSE84 AI 3 KIT PSE84 AI 3 KIT PSE84 AI 3

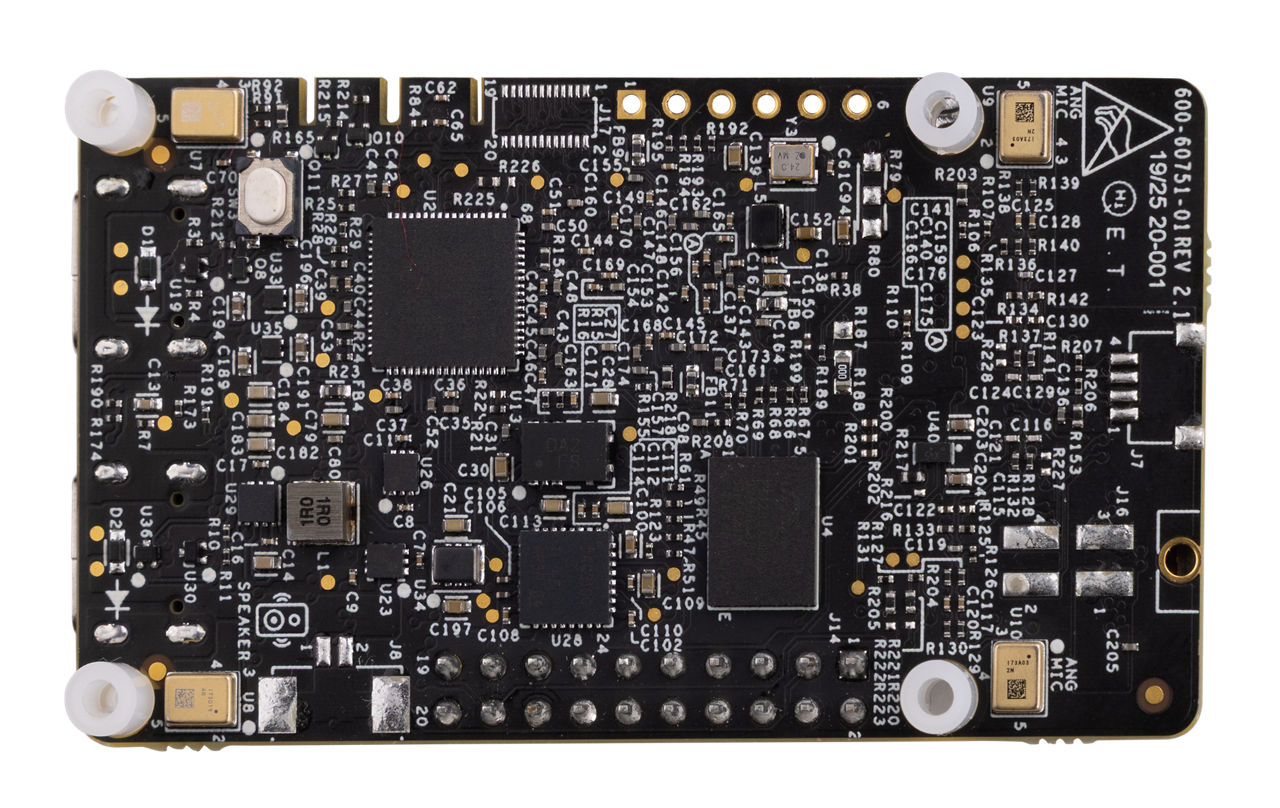

KIT PSE84 AI 4 KIT PSE84 AI 4 KIT PSE84 AI 4

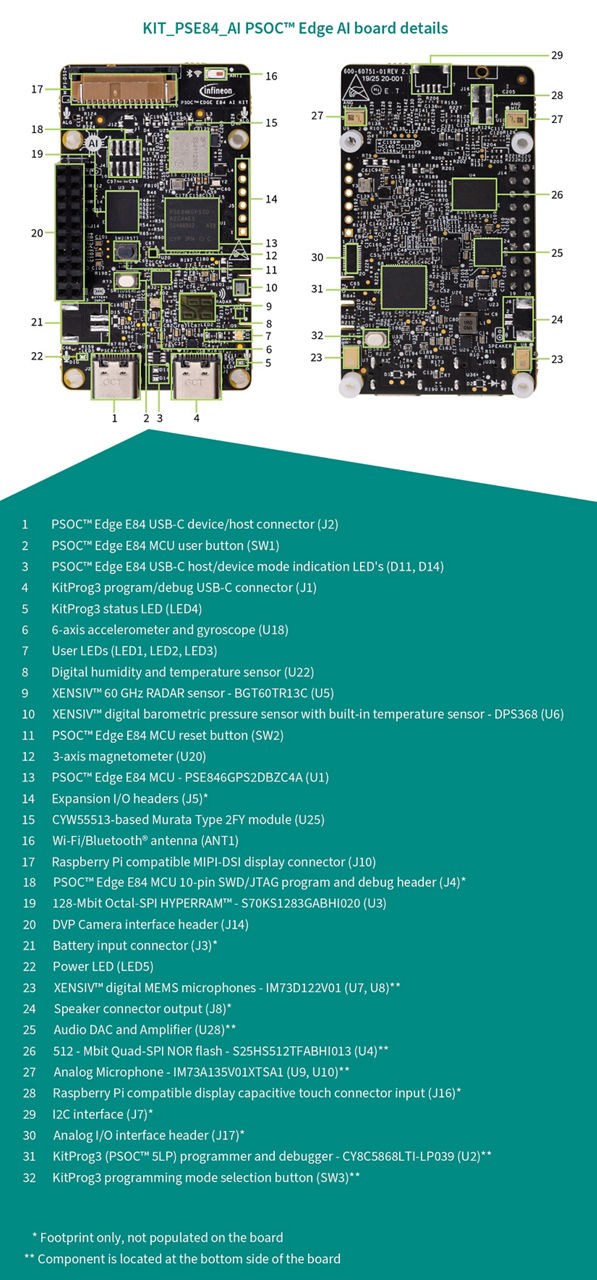

KIT_PSE84_AI board details KIT_PSE84_AI board details KIT_PSE84_AI board details
×
