KIT_LGPWR_BOM013

Kit power board for low voltage drives scalable power demoboard using IPTG014N10NM5
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_LGPWR_BOM013
KIT_LGPWR_BOM013
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Configuration
    IPTG014N10NM5
  • Dimensions
    75mm x 19mm
  • Family
    OptiMOS™ 5
  • Input Type
    DC
  • Output Current max
    273 A
  • Product Name
    KIT_LGPWR_BOM013
  • Qualification
    Industrial
  • Supply Voltage
    48 V
  • Target Application
    E-Bikes & Small E-Vehicles
  • Topology
    Half Bridge, B6 Bridge, Full Bridge, Buck, Boost, DC-DC converter
Recommended
OPN
KITLGPWRBOM013TOBO1
Product Status active and preferred
Infineon Package MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

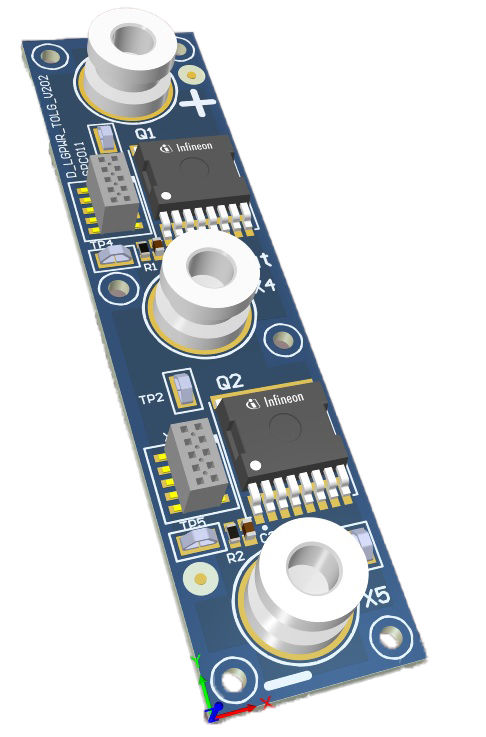

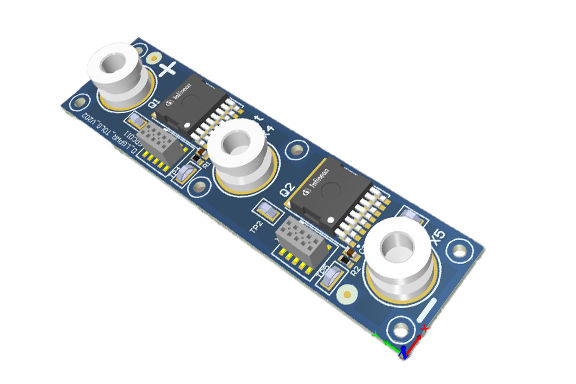

The 100 V OptiMOS™ MOSFET power board in a TOLG package serves as the LVD power demo platform's building block. It functions as a half-bridge, facilitating simple half-bridge power topology assembly. It features OptiMOS™ IPTG014N10NM5 in a TO-Leaded package for excellent performance. Boards demonstrate various power MOSFET performance using Infineon’s OptiMOS™ in D2PAK, D2PAK-7, and TO-Leadless packages.
