Infineon's ZONE CTRL 48V 12V Kit is for quick evaluation of multiple Zone Controller functions and supports proof-of-concept bring-ups in lab settings

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ZONE_CTRL_48V_12V
ZONE_CTRL_48V_12V

Product details

  • Applications
    Zone Control, Power distribution, Gateway, Load actuation
  • Board Type
    Reference Board
  • Family
    OptiMOS ™, MOTIX™, PROFET™, SPOC™, EiceDRIVER™, etc
  • Input Type
    DC
  • Interfaces
    CAN, ETH, LIN
  • Product Name
    ZONE CTRL 48V 12V
  • Target Application
    Power distribution, Communication
OPN
ZONECTRL48V12VTOBO1
Product Status coming soon
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The kit features a 48V and a 12V domain and supports a variety of use cases, such as power distribution, load actuation, 48V/12V power conversion, data routing, safety, and security. Through its modular approach, and by taking advantage of the intrinsic interoperability of Infineon’s broad product portfolio, it supports car manufacturers in making sound architectural decisions and finally making a customized, cost-effective chipset selection.

Features

  • Plug-n-play kit for 48V and 12V
  • Separate microcontroller board
  • Including 48V/12V DC/DC board
  • Broad Infineon chipset selection
  • Check architectural design decisions
  • Detailed evaluation of devices
  • Mixed-voltage test cases
  • Independent voltage-domain testing

Benefits

  • Modular concept with swapable DC/DC
  • Early support for ZCU development
  • Chipset synergies and benefits
  • Latest Infineon components, e.g.
  • 3x 12V SPOC™ high-side switches
  • 1x 48V PROFET™ high-side switch
  • 1x 12V MOTIX™ and BDC motor control IC
  • 1x 48V MOTIX™ BLDC SPI driver
  • 8x12V OptiMOS™ MOSFETs, 4x DualGate
  • 12x48V OptiMOS™ MOSFETs, 4x DualGate

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

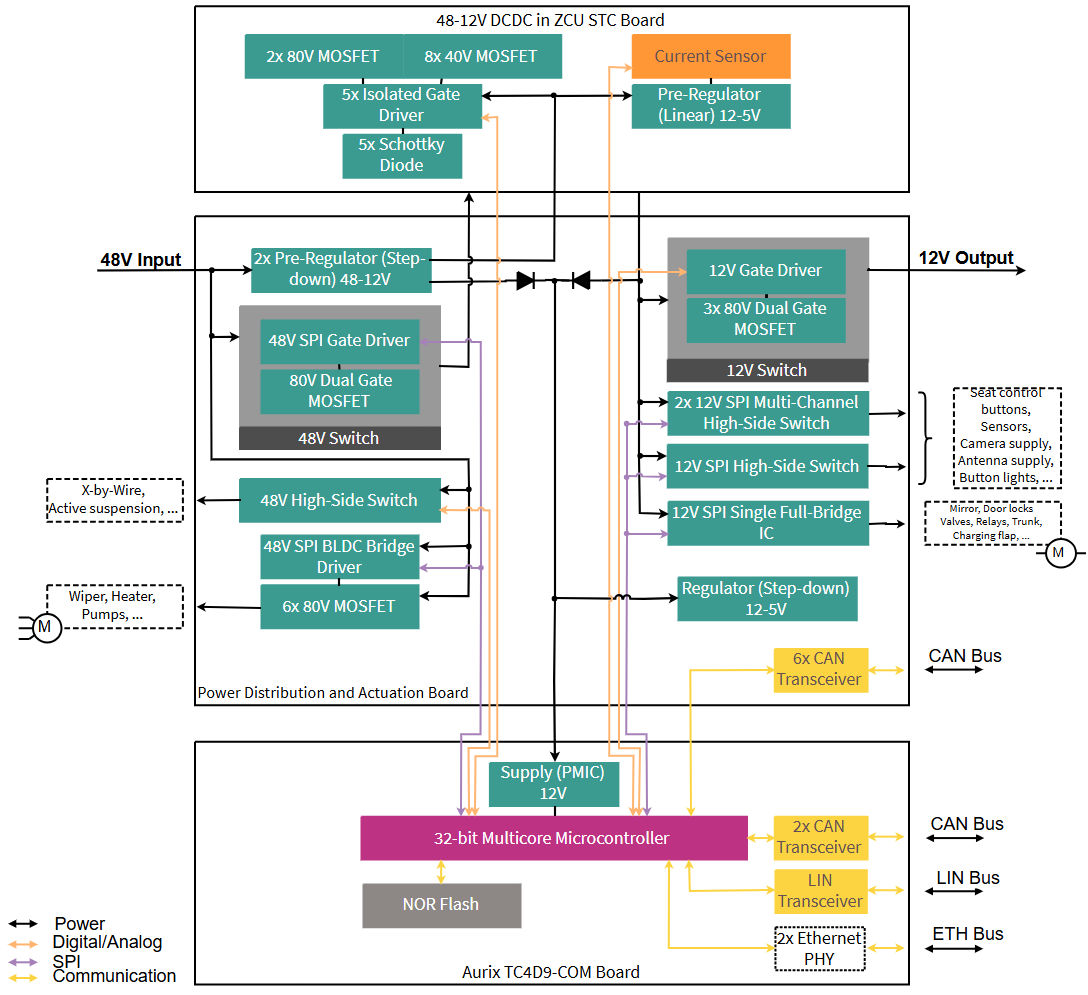

zck-bd-3board
