33 W USB-C power adapter solution using EZ-PD™ PAG1
PCB Design Data

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

VD_USB_PAG_33W_ADAPTER
VD_USB_PAG_33W_ADAPTER
PCB Design Data

Product details

  • Board Type
    Virtual Design
  • Description

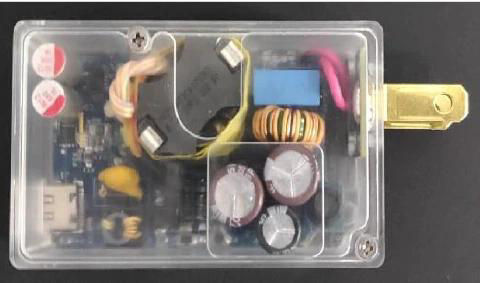

    The USB-C 33 W power adapter reference design board is built using EZ-PD™ PAG1S and PAG1P controllers. The solution meets the global efficiency standards including DoE level VI/ CoC tier 2 and the CE standard defined by CISPR32 class B.
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    AC, DC
  • Output Voltage
    3.3 V to 11 V
  • Pout
    33 W
  • Qualification
    Consummer
  • Supply Voltage
    240 V
  • Target Application
    Infotainment, Communication, Power Supplies
  • Topology
    Flyback
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The 33 W power adapter reference design utilizes EZ-PD™ PAG1S and PAG1P controllers, meeting global efficiency standards including DoE level VI/CoC tier 2 and the CE standard CISPR32 class B. Tailored for USB PD and QC power adapters, it supports legacy charging requirements, offering low BOM cost and high-performance PD/PPS/QC compliance. Hardware design files and firmware are available for customer use.

Features

  • Supports USB Type-C and USB PD 3.1
  • Fixed PDO: 5 V/3 A, 9 V/3 A
  • PPS: 3.3 V-11 V/3 A
  • Support firmware upgrade
  • Passes CoC tier 2 & DoE VI standards
  • Passes CISPR 32 class B CE standard

Benefits

  • Support firmware upgrade to PD3.2 SPR
  • Low BOM cost
  • Low standby power consumption
  • Programmable power solution
