VD_USB_CG3PA_39W_CAR

39 W 1C/1A cigarette lighter adapter solution using EZ-PD™ CCG3PA
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

VD_USB_CG3PA_39W_CAR
VD_USB_CG3PA_39W_CAR

Product details

  • Board Type
    Virtual Design
  • Family
    Universal Serial Bus (USB) – Power Delivery Controller
  • Input Type
    DC
  • Qualification
    Consumer
  • Target Application
    Infotainment, Communication, Power Supplies
OPN
Product Status paper design
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status paper design
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

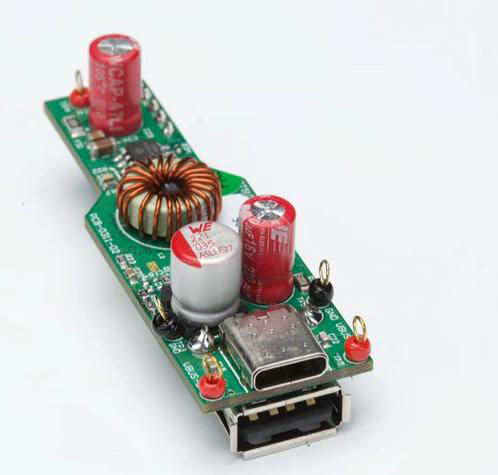

The CCG3PA 39W USB-C/USB-A car charger reference design supports 27W for USB Type-C and 12W for legacy Type-A ports. It features Infineon's EZ-PD™ CCG3PA(CYPD3175-24LQXQ) controller and ActiveSemi ACT5101/ACT2861 buck-boost power controller, regulating VBUS voltage, monitoring fault protection, and controlling VBUS discharge. Firmware is developed using CCGx Power SDK, with customization available using the EZ-PD™ Configuration utility.

Features

  • Supports USB Type-C and USB PD 3.1
  • Support 1C/1A
  • USB-C: 27 W, USB-A: 12 W
