TLS820F3EL V50 BOARD

User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS820F3EL V50 BOARD
TLS820F3EL V50 BOARD
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Family
    Linear Voltage Regulator (LDO), OPTIREG™ Linear
  • Input Type
    DC
  • Language
    SPICE
  • Mounting
    SMD
  • Output Current
    200 mA
  • Output Voltage
    5 V
  • Product Category
    Evaluation Boards
  • Product Name
    TLS820F3ELV50
  • Qualification
    Automotive
  • Supply Voltage
    3 V to 42 V
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
TLS820F3ELV50BOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

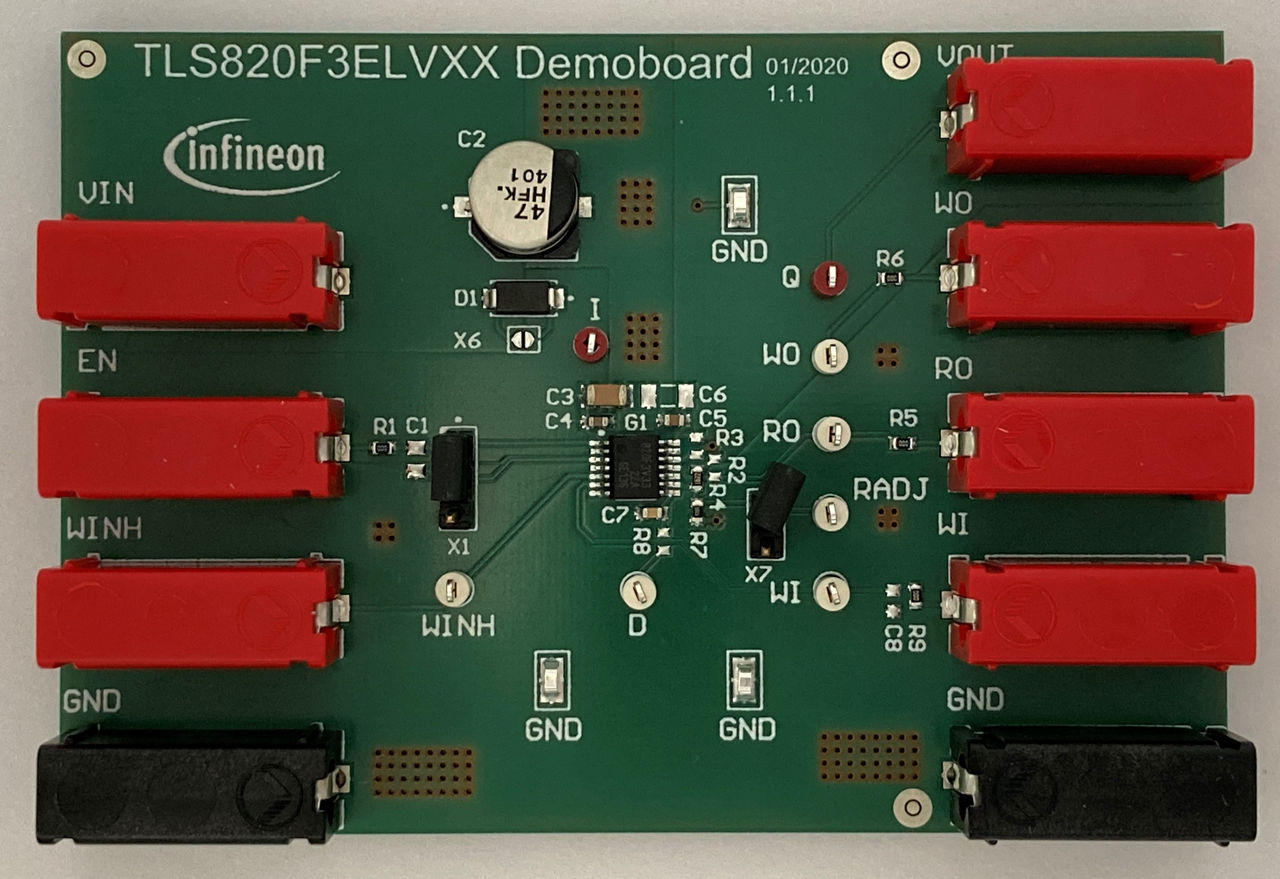

OPTIREG™ linear voltage regulator TLS820F3ELV50 demoboard is to be used during the design-in process for evaluating the TLS820F3ELV50 from Infineon Technologies AG.

Features

  • Output voltage 5.5 V ±2%
  • Current capability 200 mA
  • Input voltage range from 3 V to 42 V
  • Stable with 1 µF ceramic o/p capacitor
  • Ultra low current consumption: 26 µA
  • Very low drop out V: 100 mV at 100 mA
  • Watchdog inhibit
  • Separate outputs for reset and watchdog
  • Output current limitation
  • Overtemperature shutdown
  • Green Product (RoHS compliant)
