TLS125D0EJ BOARD

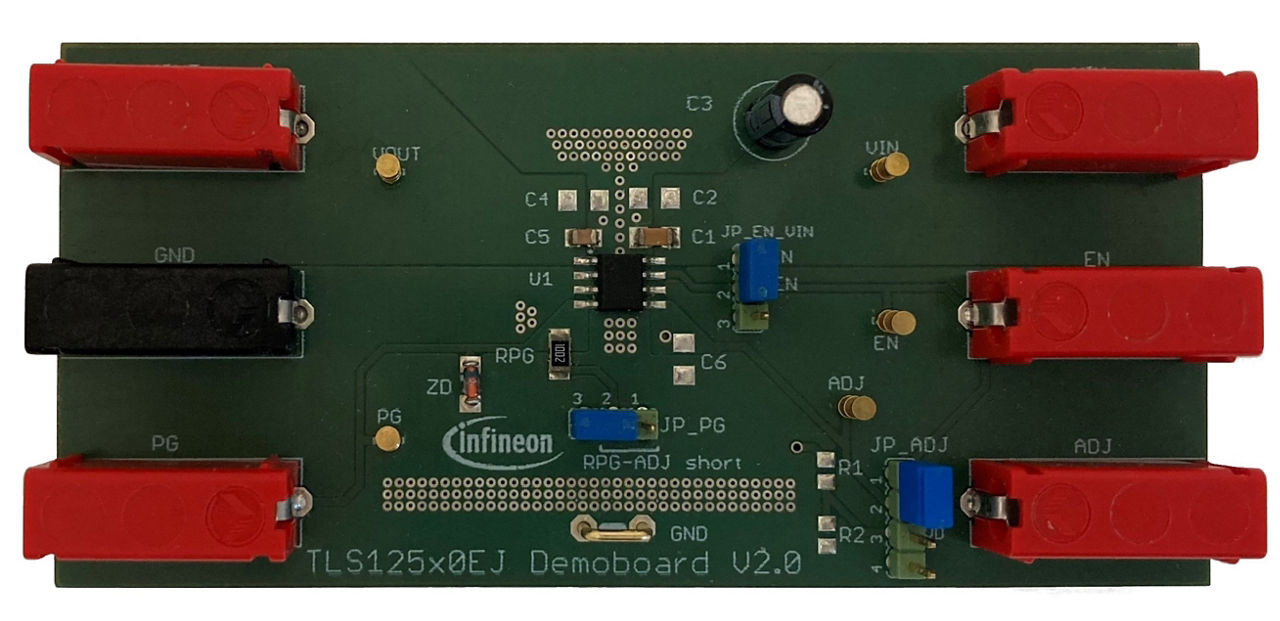

The TLS125D0EJ demoboard allows evaluation of the TLS125D0EJ in the PG-DSO-8 package.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS125D0EJ BOARD
TLS125D0EJ BOARD

Product details

  • Board Type
    Demo Board
  • Family
    Linear Voltage Regulator (LDO), OPTIREG™ Linear
  • Input Type
    DC
  • Language
    SPICE
  • Operating Voltage
    4 V to 40 V
  • Output Current
    250 mA
  • Output Voltage
    2 V to 14 V
  • Product Category
    Evaluation Boards
  • Product Name
    TLS125D0EJ BOARD
  • Qualification
    Automotive
  • Sub Application
    HVAC , EMS, TCU, EPS, Sensor Supply
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
TLS125D0EJBOARDTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The TLS125D0EJ is a monolithic integrated low-dropout voltage tracking regulator with high accuracy in small DSO-8 exposed pad package. The TLS125D0EJ is designed to supply off-board systems, for example sensors in powertrain management systems under the severe conditions of automotive applications. Therefore, the TLS125D0EJ is equipped with protection functions against reverse polarity and against short circuit to GND and battery.
