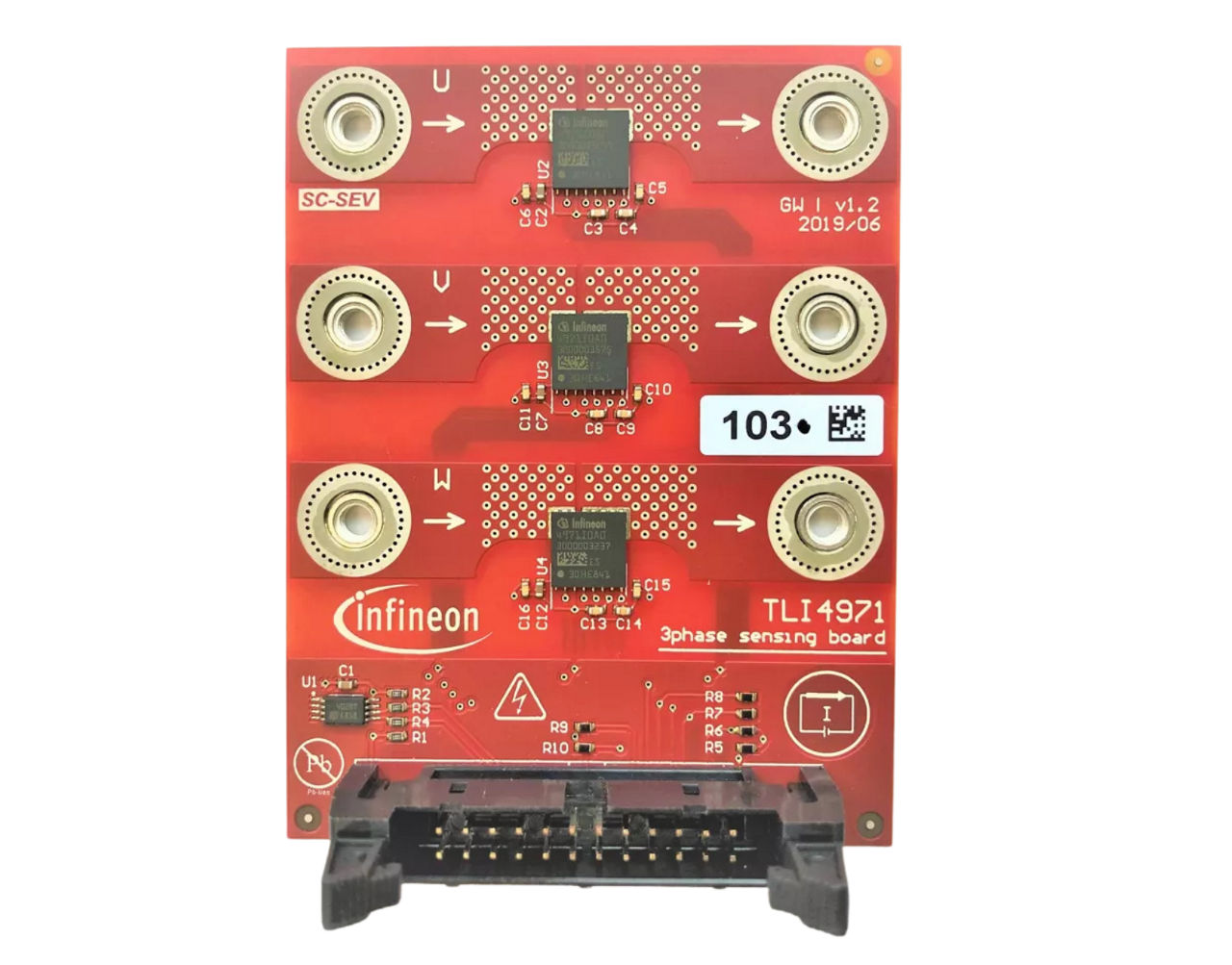

TLI4971 EVAL 120A

XENSIV™ - TLI4971 EVAL 120 A* board for evaluation of three-phase systems

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLI4971 EVAL 120A
TLI4971 EVAL 120A

Product details

  • Applications
    Electrical drives (up to 690V), Photovoltaic inverter, General purpose inverters, Overload and over-current detection, Current monitoring, Chargers, Power supplies
  • Device
    TLI4971
  • Family
    Current sensors
  • Qualification
    Industrial
Recommended
OPN
TLI4971EVAL120ATOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

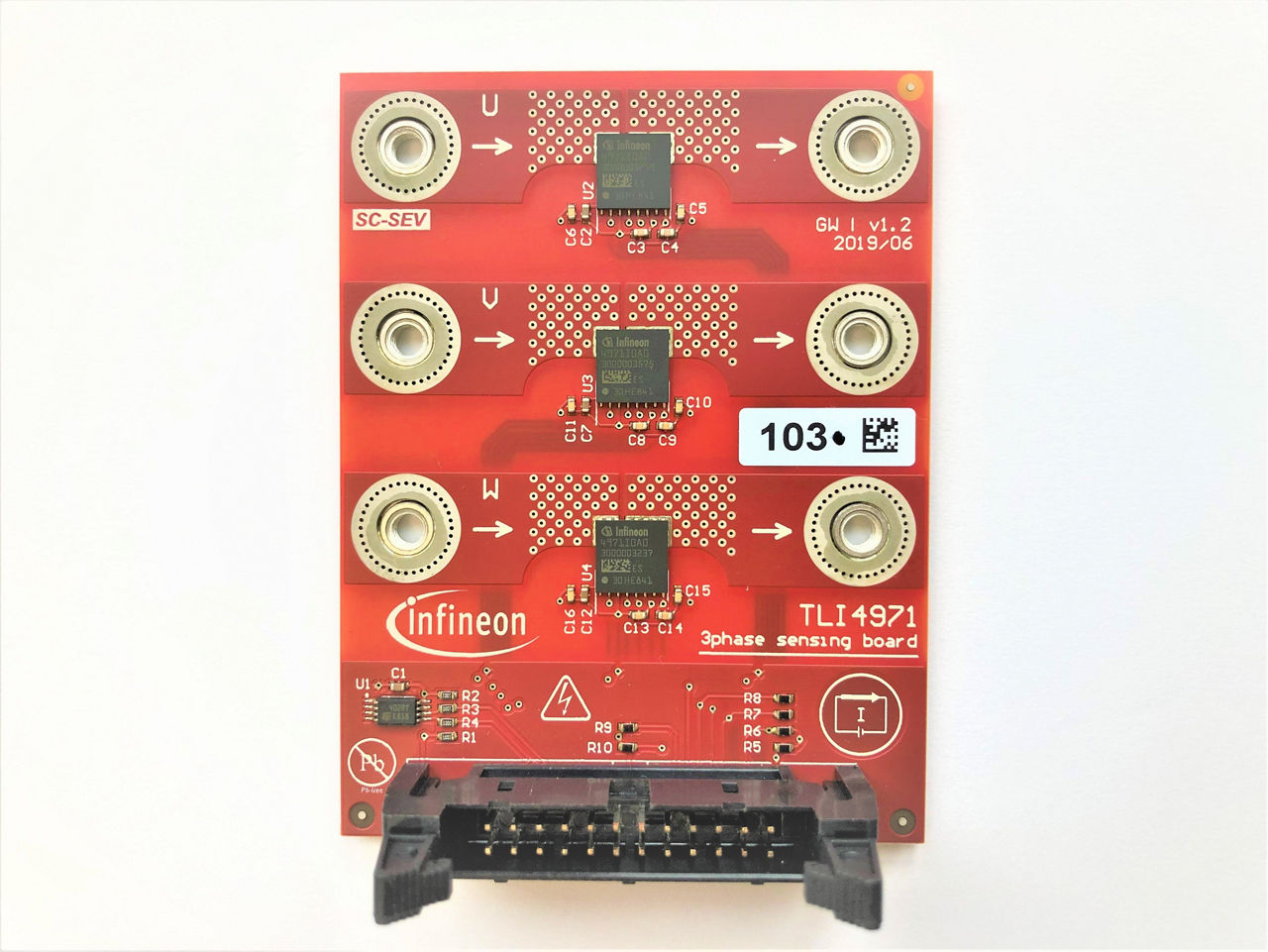

Evaluation board suitable for evaluating three-phase systems, with running currents up to 120A*. The board is equipped with three internal current rail TLI4971-A120T5-E0001 sensors assembled on top of the PCB. The board is to be used either standalone or interconnected with the Infineon TLE4972 current sensor programmer tool.

Features

  • EVAL 120A* board -TLI4971 current sensor
  • Evaluating three-phase systems
  • Standalone board
  • Interconnection with cur program. Tool
  • Sensor settings programmable
  • Dedicated SW/FW @ registration
