TLF35584QVVS1 BOARD

Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF35584QVVS1 BOARD
TLF35584QVVS1 BOARD
Data Sheet

Product details

  • Board Type
    Evaluation Board
  • Family
    DC-DC Converter, OPTIREG™ PMIC
  • Language
    SPICE
  • Output Voltage
    5.8 V
  • Product Category
    Evaluation Boards
  • Qualification
    Automotive
  • Sub Application
    Powertrain, Electrical Drive Train, Safety Chassis
  • Supply Voltage
    14 V
  • Target Application
    Automotive
Recommended
OPN
TLF35584QVVS1BOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

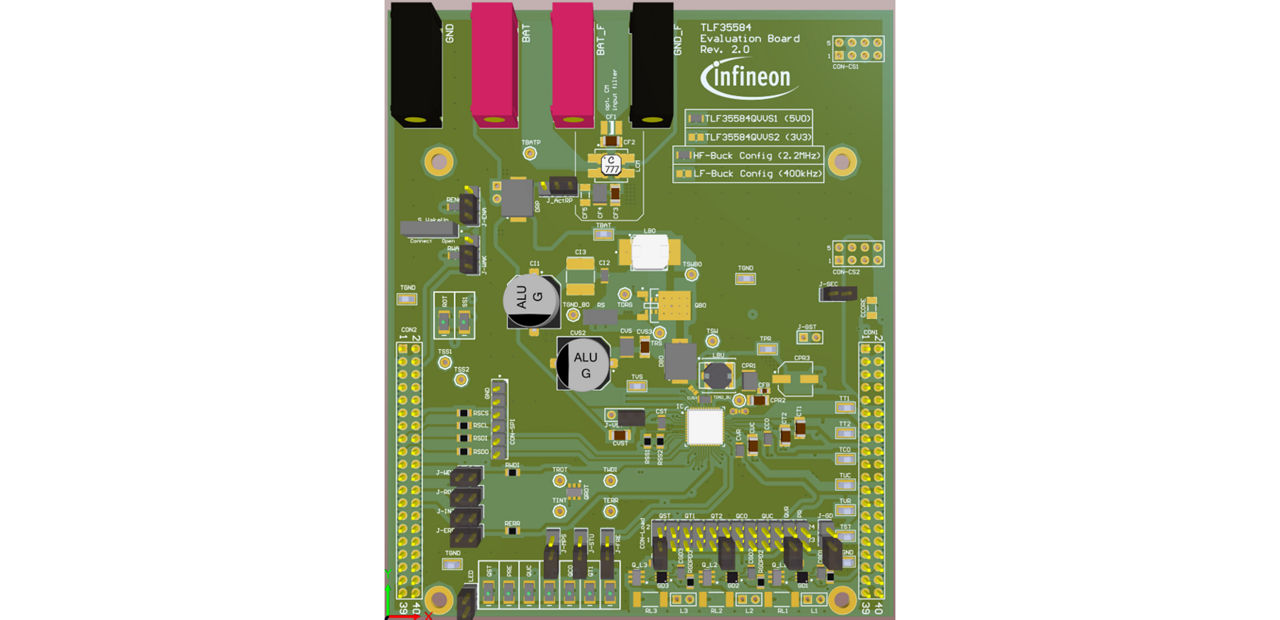

This application board tests analog performance of TLF35584QVHS1 and TLF35584QVVS1 safety system-supply for AURIX™ microprocessor. TLF35584 features step up/down pre-regulator, three linear post regulators, and two trackers. Board measures power supply rails with load resistors and SPI signals, INT interrupt, ERR, and WDI. Companion board TLF35584 MC enables digital performance testing. Contact sales rep or TAC for datasheet and support.

Features

  • OPTIREG™PMIC on one PCB
  • Optimized layout
  • Enable fast oscilloscope measurements

Benefits

  • TLF35x power supply analog testing.
  • Explore TLF35x Safety Systems Securely
  • Quick set-up to verify the configuration
