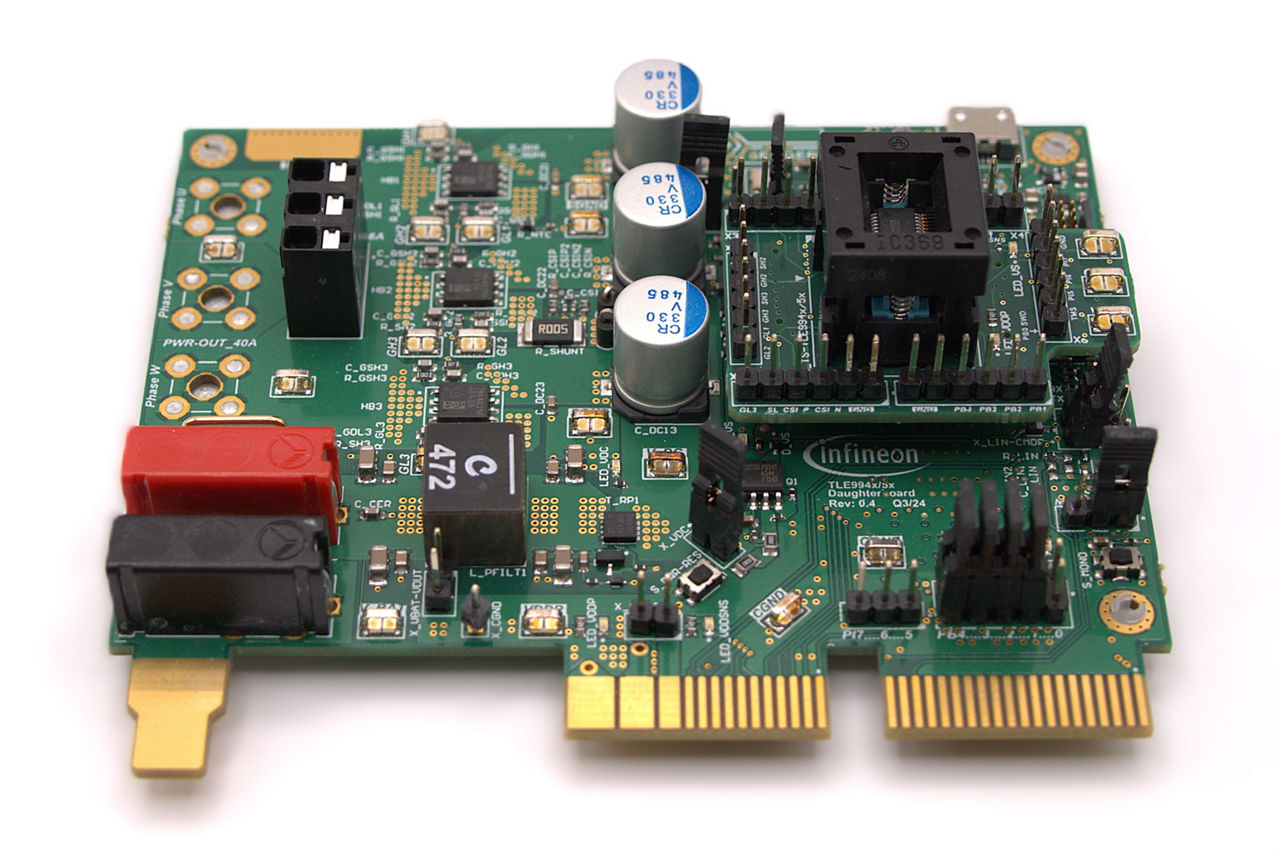

TLE995X EVALBOARD

The MOTIX™ TLE995x Evaluation Board is a flexible and user-friendly tool designed to evaluate and test MOTIX™ TLE994x and TLE995x families
User Manual
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE995X EVALBOARD
TLE995X EVALBOARD
User Manual

Product details

  • Family
    MOTIX™ 32-bit motor control SoC
  • Input Type
    DC
  • Product Category
    Evaluation Board
  • Qualification
    Automotive
  • Sub Application
    Water pump, electric coolant pump, oil pump, cooling fan, actuator control valve, power sliding door
  • Supply Voltage range
    5.5 V to 29 V
Recommended
OPN
TLE995XEVALBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The MOTIX™ TLE995x Evaluation Board is a comprehensive tool for evaluating and testing MOTIX™ TLE994x and TLE995x families. This board provides a flexible environment and is designed to help you get started with your application quickly. For added convenience, the board includes a spring socket for easy device insertion and removal. The respective MOTIX™ TLE994x or TLE995x device must be ordered separately.

Features

  • 3-phase MOSFET bridge
  • Sensorless/sensor-based motor control
  • Socket board for TSDSO package
  • Interface for analog sensors (ADC)
  • Interface for digital sensors (SPI)
  • Onboard debugging interface
  • Compatible with example software
  • Pin header for all signals

Benefits

  • Fast and easy development
  • Reduced development time
  • Flexible design

Applications
