TLE9879 EVALKIT

TLE9879 EvalKit allows direct connection to a BLDC motor
User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9879 EVALKIT
TLE9879 EVALKIT
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    110mm x 65,5mm
  • Family
    Motor Driver, Microcontroller, MOTIX™ MCU | 32-bit motor control SoC
  • Input Type
    DC
  • Language
    SPICE
  • Output Voltage
    14 V
  • Product Category
    Evaluation Boards
  • Product Name
    TLE9879 Evaluation Kit
  • Qualification
    Automotive
  • Sub Application
    Water pump, High efficiency pumps and fans, Sensor-less and sensor-based BLDC motor appl., Engine cooling fan, HVAC blower, Fuel pump
  • Supply Voltage
    12 V
  • Target Application
    Motor Control & Drives, Automotive
  • Topology
    B6 Bridge, 3-Phase Motor
Recommended
OPN
TLE9879EVALKITTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

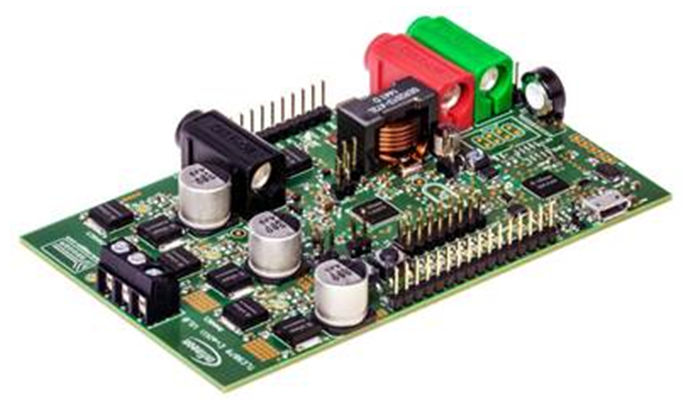

The TLE9879 EvalKit provides a comprehensive evaluation platform for the TLE9879QXA40, allowing direct connection to a BLDC motor via a B6-Bridge configuration. It includes B6-Bridge for BLDC motor drive, UART and LIN for communication, direct access to all device I/Os and J-Link debugger. This evaluation kit, featuring the superset device TLE9879QXA40, enables evaluation of the entire TLE987x product family.

Features

  • 3-phase N-MOS bridge
  • Single shunt in GND path
  • Integrated LIN (inside device)
  • Virtual ComPort via J-Link
  • Debug LEDs
  • Onboard Segger J-Link debugger
