TLE9855 EVALKIT

TLE9855 EVALKIT offers an evaluation of all devices within the TLE985x family
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9855 EVALKIT
TLE9855 EVALKIT
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Dimensions
    110mm x 65,5mm
  • Family
    MOTIX™ MCU | 32-bit motor control SoC, Microcontroller, Motor Driver
  • Frequency
    5 MHz to 40 MHz
  • Input Type
    DC
  • Interfaces
    Micro-USB, uIO, SWD, LIN
  • Mounting
    Direct mount
  • Output Current max
    10 A
  • Output Voltage
    5.5 V to 28 V
  • Qualification
    Automotive
  • Sub Application
    Electrical Fans, Electrical Pumps, Windowlift, Sunroof
  • Supply Voltage max
    28 V
  • Target Application
    Automotive
  • Topology
    Motor Control IC with Gate Driver
Recommended
OPN
TLE9855EVALKITTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

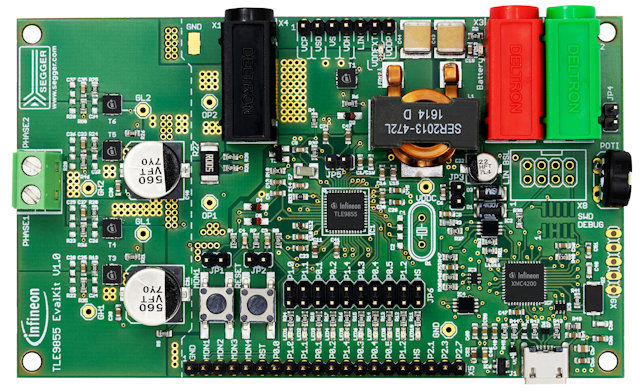

The TLE9855 EVALKIT is a user-friendly evaluation tool designed to help getting started with Infineon's TLE985x. This kit includes the TLE9855QX device, along with a fully functional application circuit featuring two MOSFET half bridges, allowing for instant DC motor drive evaluation.

Features

  • 2-phase N-MOS bridge
  • Single shunt in GND path
  • Integrated LIN transceiver
  • Debug LEDs
  • Onboard Segger J-Link debugger
  • EvalKit-PC connector: USB

Applications
