TLE984X EVALBOARD

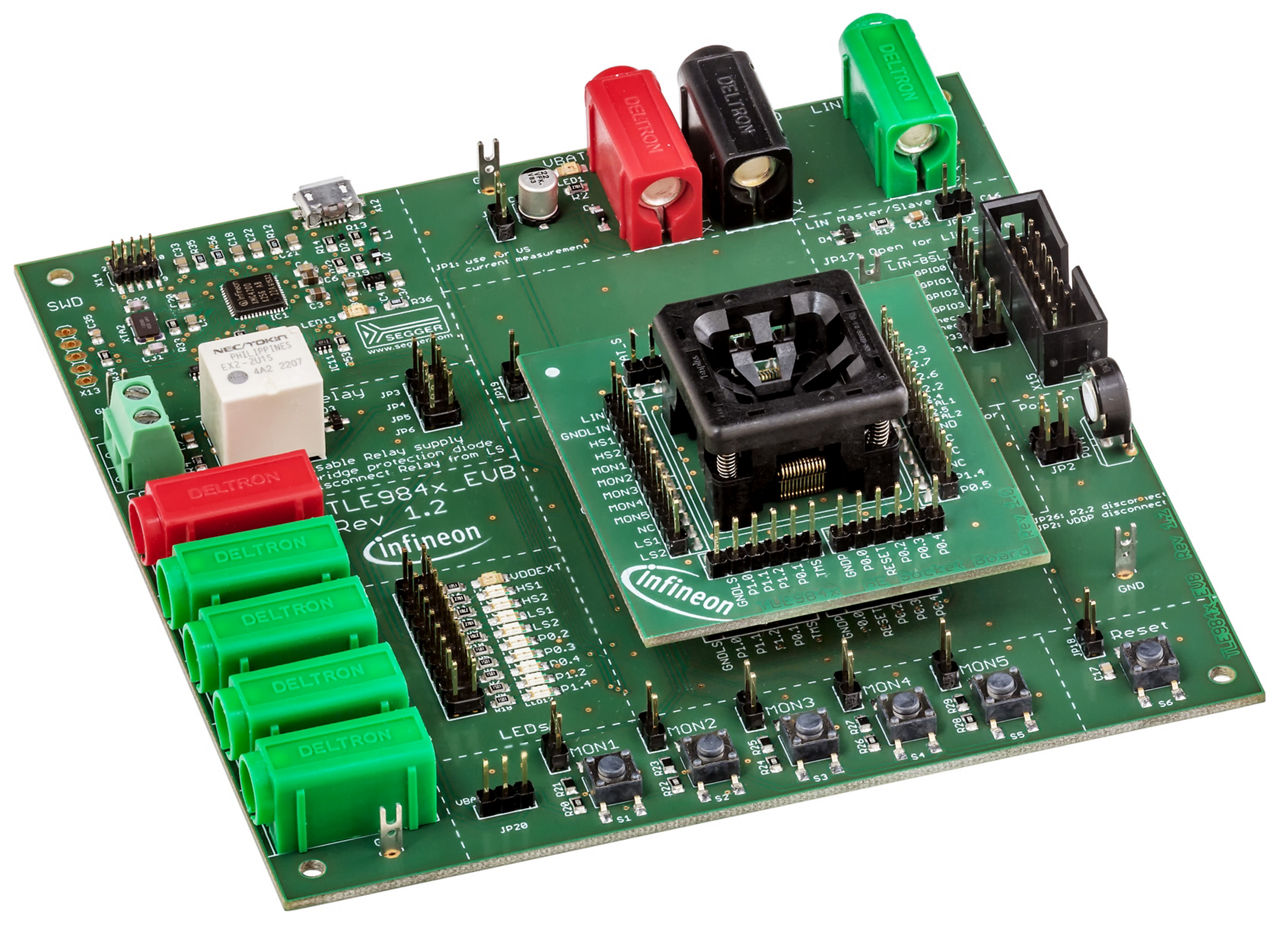

TLE984X EVALBOARD offers a fast and easy-to-use evaluation platform for the TLE984x family
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE984X EVALBOARD
TLE984X EVALBOARD
User Manual

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    130mm x 130mm
  • Family
    Motor Driver, MOTIX™ MCU | 32-bit motor control SoC, Microcontroller
  • Input Type
    DC
  • Output Voltage
    14 V
  • Product Name
    TLE984x Evaluation Board
  • Qualification
    Automotive
  • Sub Application
    Sunroof, Power Window Lift, Smart motor control via relay, Wiper
  • Supply Voltage
    12 V
  • Target Application
    Motor Control & Drives, Automotive
  • Topology
    Motor Control IC with Relay Driver
Recommended
OPN
TLE984XEVALBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE984x Evaluation Board provides a comprehensive evaluation platform for the TLE984x product family, allowing for complete assessment of all functions and peripherals. The relevant TLE984x product must be ordered separately.

Features

  • Double-relay for DC-motor connection
  • Onboard Segger J-Link Debugger
  • Debug connector SWD
  • Micro-USB-connection for Debugger
  • Debug LEDs
  • 5 MON buttons
  • Potentiometer, e.g. for ADC test
  • uIO Stick connector
