Active and preferred

TLE5012B_E1000_MS2GO

XENSIV™ - TLE5012B E1000 sensor 2GO kit is the automotive predefined variant with SSC & IIF communication protocols
User Manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE5012B_E1000_MS2GO
TLE5012B_E1000_MS2GO
User Manual

Product details

  • Applications
    Automotive
  • Board Type
    Evaluation Board
  • Family
    Angle Sensor
Recommended
OPN
TLE5012BE1000MS2GOTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

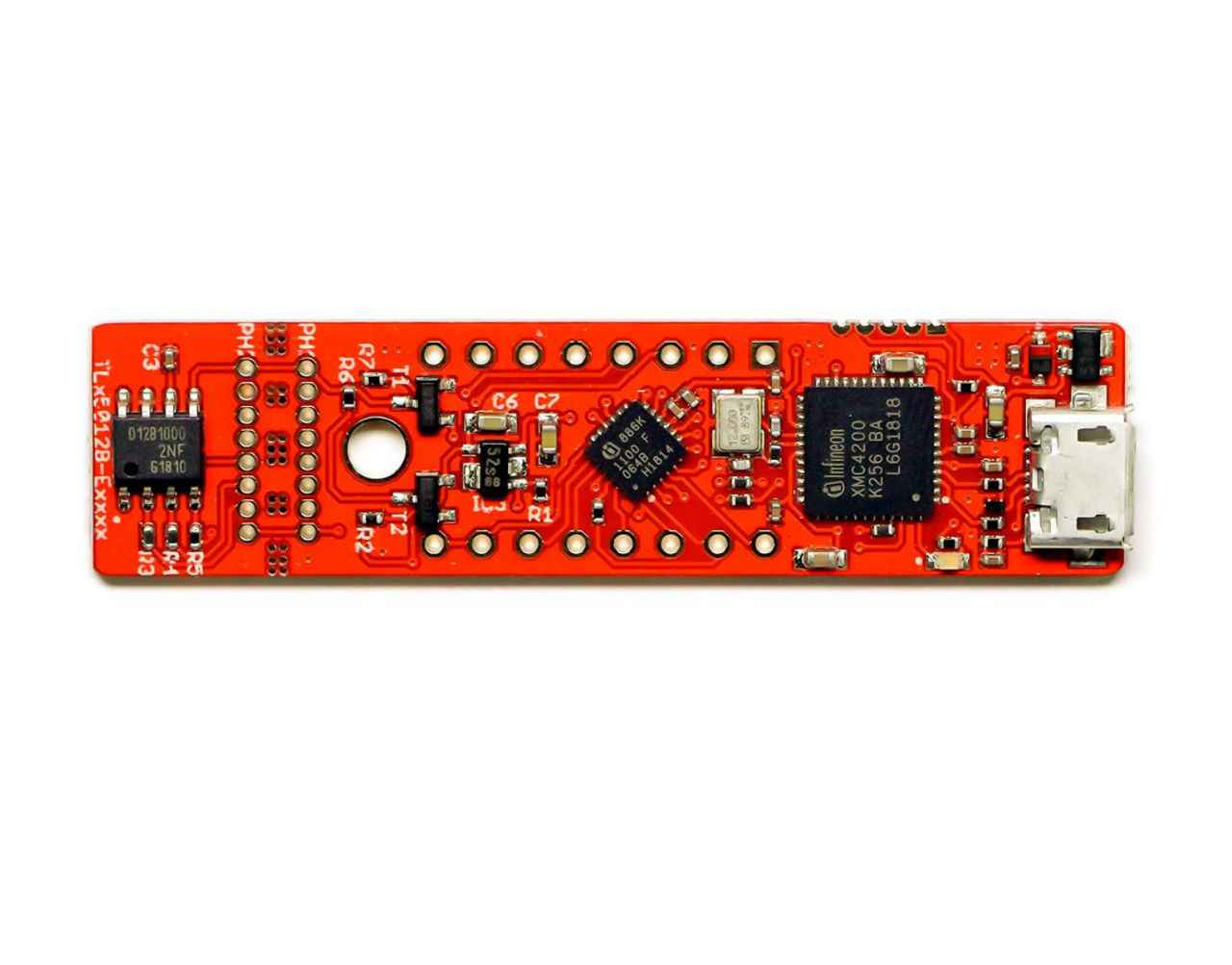

Infineon's XENSIV™ TLx5012B magnetic angle sensor 2GO kit is a budget-priced evaluation kit with a TLE5012B/TLI5012B digital GMR angle sensor interfaced with an XMC1100 Infineon Microcontroller (ARM Cortex M0 CPU). Sensor variants: TLE5012B E1000, E5000, E9000 (automotive), and TLI5012B E1000 (industrial). Allows decoding, acquisition of communication protocols, access to RAM registers, and software download.

Features

  • Featuring TLE5012B E1000 magnetic angle sensor
  • Budget-priced evaluation board
  • Complete set of on-board devices
  • Add on component adapters available
  • Free GUI available to download
  • Integration with break-away sensor PCB

Applications
