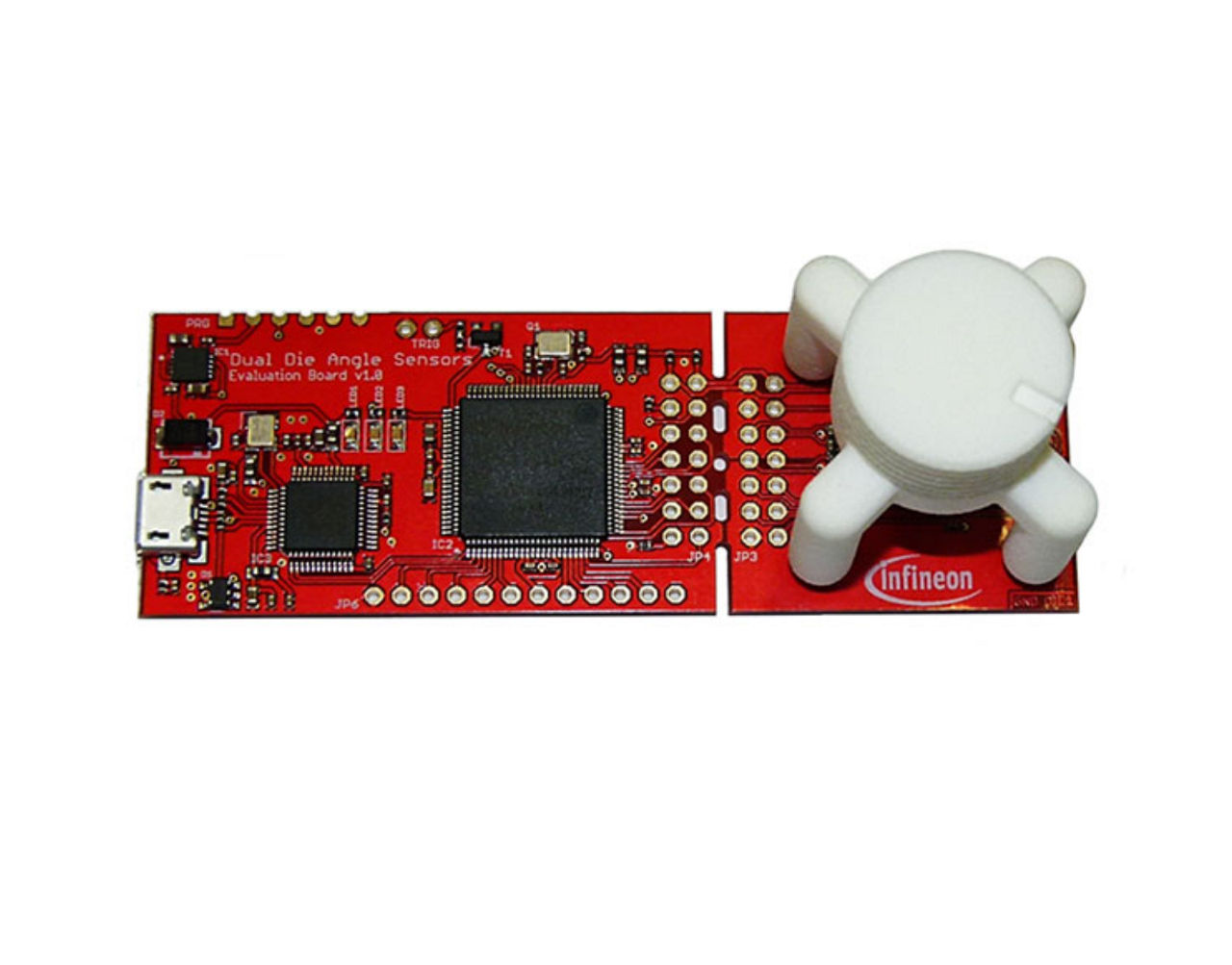

TLE5009 EVAL KIT

XENSIV™ - Evaluation Kit using a TLE5009A16D E1210 Dual SMD angle sensor – 3.3 V variant, 2 T point calibration
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE5009 EVAL KIT
TLE5009 EVAL KIT
ea.

Product details

  • Applications
    Automotive ASIL
  • Board Type
    Evaluation Board
  • Family
    Angle sensors
  • Product Name
    Evaluation Kit
Recommended
OPN
TLE5009EVALKITTOBO2
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
XENSIV™ - Evaluation kit using a TLE5009A16D E1210 dual SMD angle sensor – 3.3 V variant, 2T point calibration. As part of the ease-of-use approach Infineon is also providing a pre-mounted magnetic rotation knob, abandoning the need of designing, selecting and positioning a specific magnet. These kind of magnetic add-ons enable an ultra-fast evaluation and plug-and-play experience of Infineon’s well established magnetic sensor kits and boards.

Features

  • Evaluation Kit using a TLE5009A16D E1210
  • Fast and easy evaluation of angle sensors
  • Pre-mounted magnetic rotation knob
  • GUI for free download

Applications
