TLE4973_MS2GO

XENSIV™ - TLE4973 MS2GO for current sensors – plug and play
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4973_MS2GO
TLE4973_MS2GO
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Configuration
    XMC1100-Q024F0064 AB, TLE4973-R025T5-S0010, ESD8V0L2B-03L, BAS3010A-03W, TLS202B1MBV, BSL308C, XMC4200-Q48K256 BA
  • Family
    Sensor
  • Input Type
    DC
  • Qualification
    Automotive
  • Sub Application
    Electric drivetrain, Adapters and chargers, Onboard battery charger, Photovoltaic, Uninterruptible power supplies (UPS), Automotive Battery, Management System (BMS)
  • Supply Voltage
    4.75 V to 5.25 V
  • Target Application
    Automotive
  • Topology
    Others
Recommended
OPN
TLE4973MS2GOTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

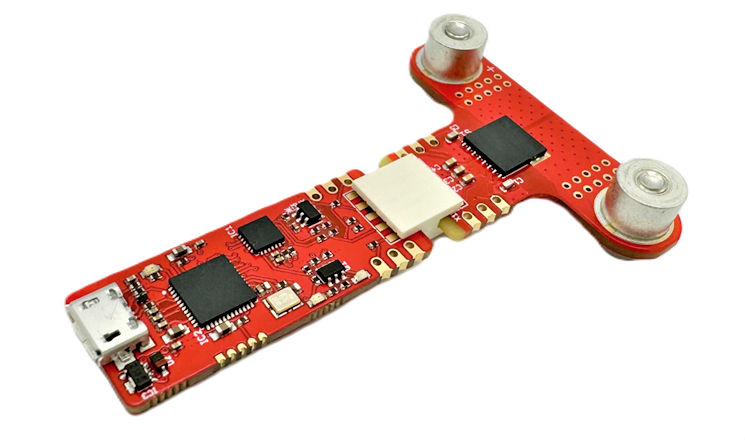

The TLE4973_MS2GO is equipped with the TLE4973-R025T5-S0010, and offers EEPROM programmability features over DCDI interface. This board may be used together with the XENSIV™ current sensors MS2Go evaluation app available for download in our Infineon Developer Center portal. The package includes the following components:
  • Sensor Board
  • Microcontroller board (based on XMC microcontrollers)
  • In plane edge connector
  • 2x M4 screws

Features

  • Internal current rail sensors
  • Currents up to 25A
  • For evaluating one-phase systems
  • Based on TLE4973-R025T5-S0010
  • Easy to use & modular hardware
  • Programmable sensor settings

Benefits

  • Graphical user interface @IDC
  • Pre-calibrated sensors
  • ATV Qualified Sensors AEC-Q100

Applications

Bill of Material
