TLE4972 EVAL INLAY

XENSIV™ - TLE4972 EVAL INLAY current sensor evaluation board suitable for evaluating three phase systems, with currents up to 420 A*
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4972 EVAL INLAY
TLE4972 EVAL INLAY
ea.
User Manual

Product details

  • Applications
    Automotive electrical drives, Auxiliary drives, Current monitoring, Overload and over-current detection, Automotive power train, Battery main switch, On board chargers, etc
  • Family
    Current sensors
  • Qualification
    Automotive qualified AEC-Q100
  • Type
    Demoboard
Recommended
OPN
TLE4972EVALINLAYTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

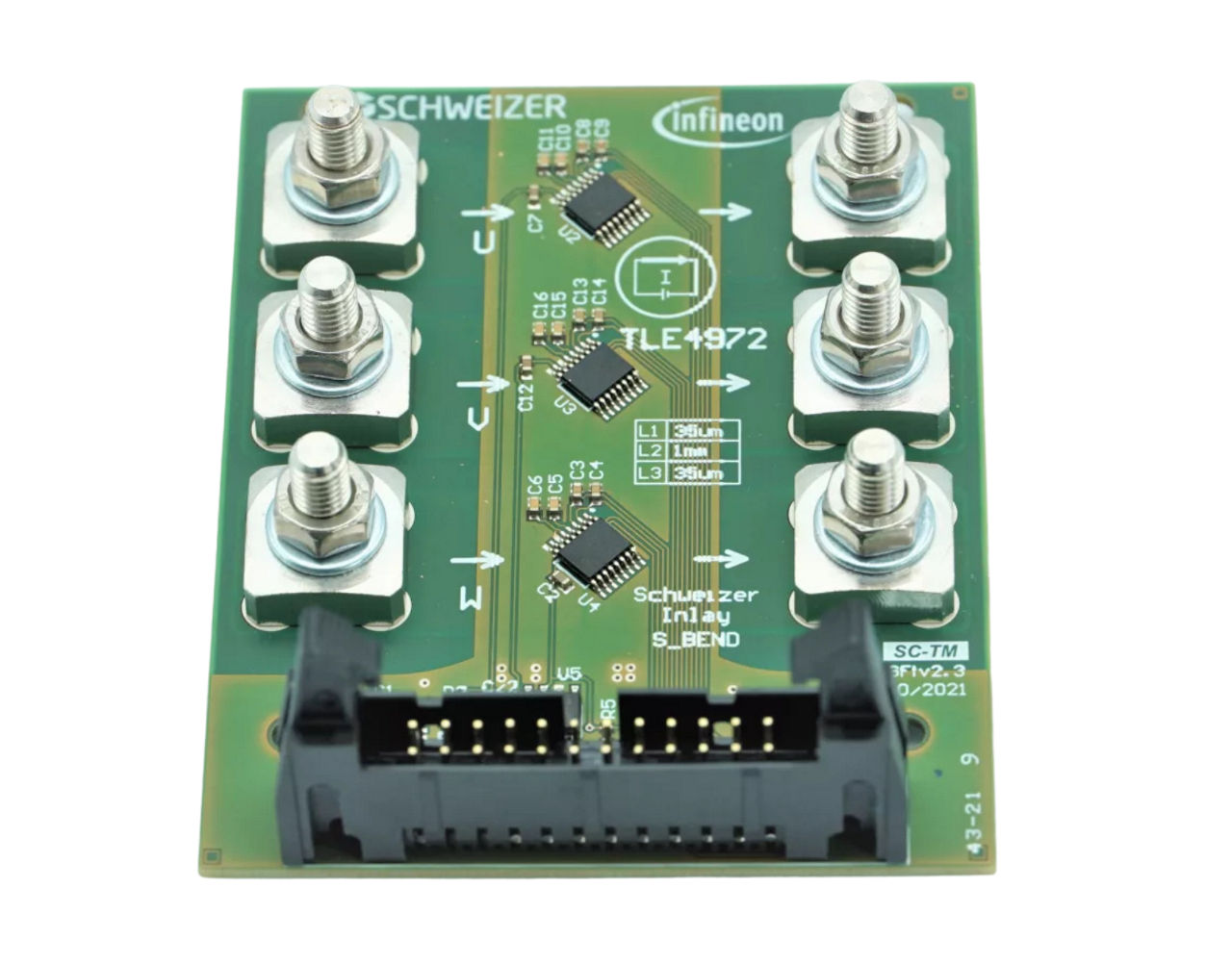

TLE4972 EVAL INLAY: Current sensor evaluation board for three-phase systems, up to 420 A*. Equipped with three TLE4972-AE35D5 Hall current sensors on 1 mm copper inlay PCB. Standalone or interconnected with Infineon TLE4972 current sensor programmer tool. High current connectors & M6 screws. Other variants available: EVAL STD PCB (191 A range), EVAL LAT BAR (540 A range), EVAL VER BAR (842 A range).

Features

  • EVAL INLAY eval board for TLE4972
  • Assembled Hall current sensor
  • Currents up to 420A
  • Dedicated SW/FW @ registration
