TLE4971 EVAL 50A

NEW
Three-phase measurement board for 50 A peak current developed for design in support of the TLE4971 and TLI4971 in the DSO 300 mil package.
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4971 EVAL 50A
TLE4971 EVAL 50A
User Manual

Product details

  • Board Type
    Evaluation Board
  • Configuration
    3 times TLE4971-A050W2-S0001
  • Dimensions
    8.5 cm x 6-5 cm
  • Family
    Sensor
  • Frequency max
    210 kHz
  • Halogen-free
    Yes
  • Input Type
    AC
  • Interfaces
    CUR SENSOR PROGRAMER (SP004441438)
  • Output Current max
    50 A
  • Qualification
    Automotive
  • Supply Voltage
    3.1 V to 3.5 V
  • Target Application
    Electrical drives, Photovoltaic inverter, General purpose inverters, Overload and over-current detection, Current monitoring, Chargers, Power supplies, On Board Chargers (OBC), Fast DC Chargers, Auxiliary HV Drives
  • Topology
    3-Phase Motor
Recommended
OPN
TLE4971EVAL50ATOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

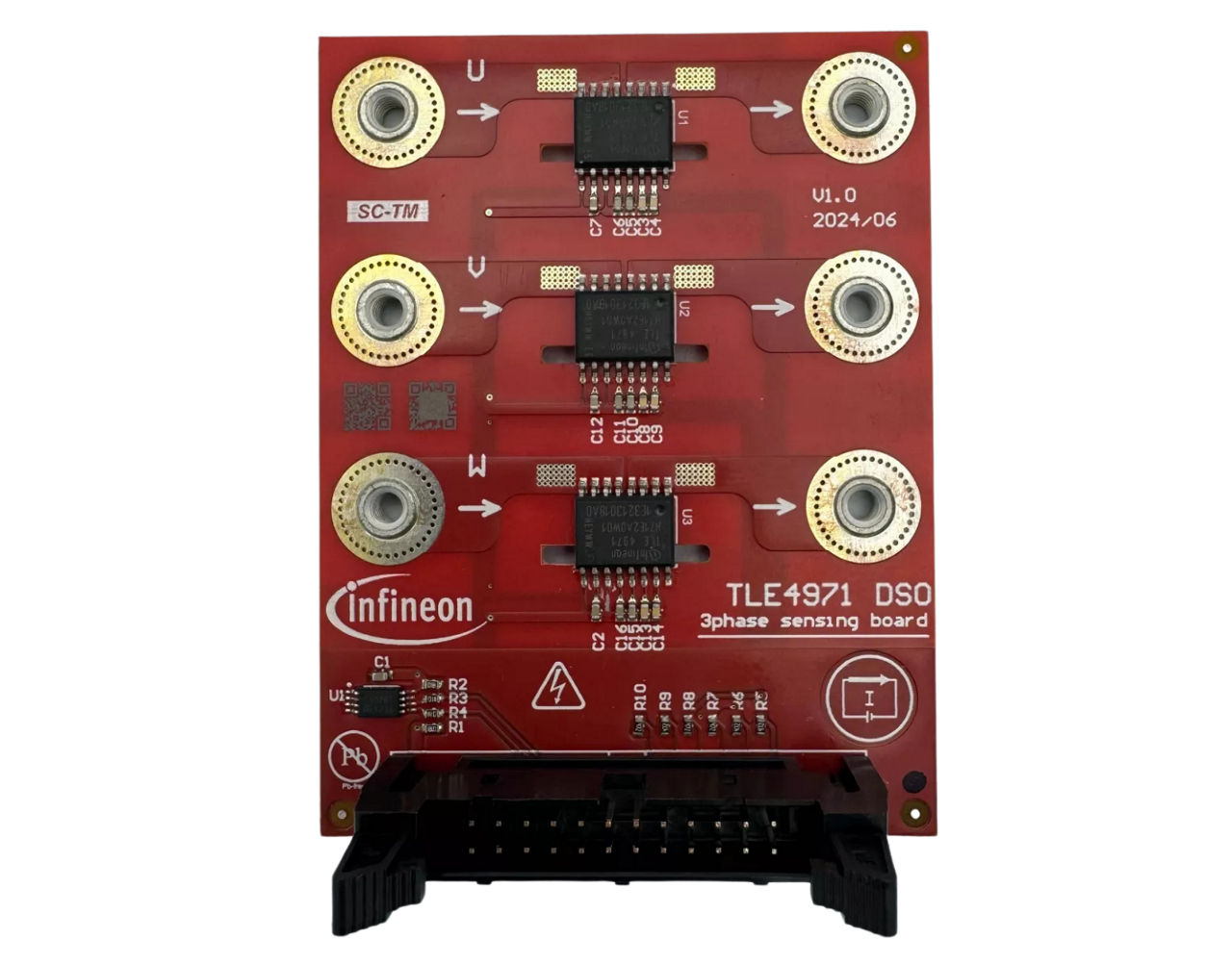

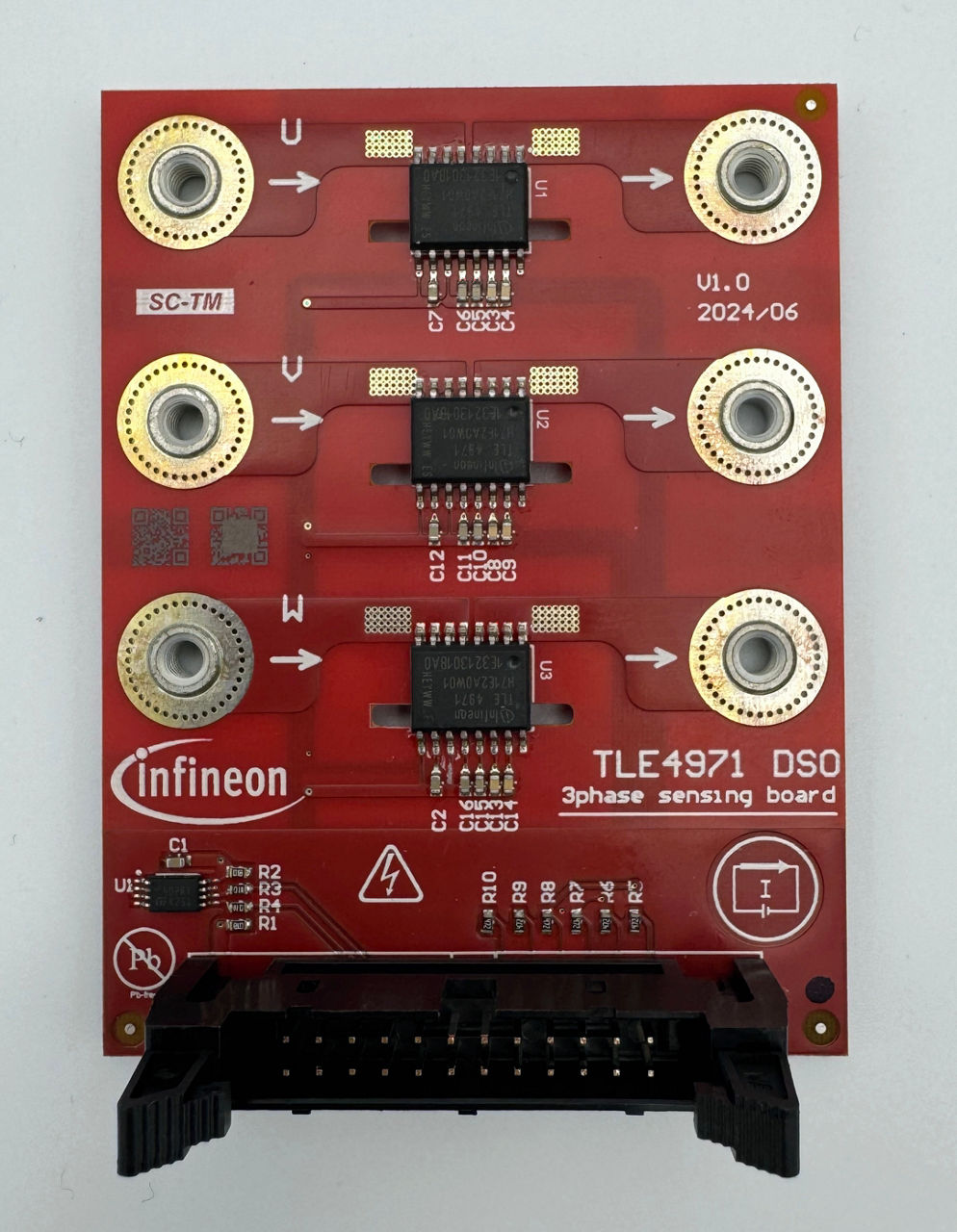

The TLE4971 EVAL 50 A is a three-phase current sensor board equipped with three TLE4971 current sensors. It's designed to enable a fast verification of the capabilities of the TLE4971 and TLI4971 in a three-phase on single-phase configuration. The pre-programmed TLE4971 sensors are designed for the 50 A peak current measurement range.

Features

  • Very high accuracy
  • Two fast over current detection channels
  • Three-phase board for 50 A peak current
  • Connectable to Programmer Board

Benefits

  • Pre-programmed 50 A evlauation board
  • No need of external calibration
  • Error < 0.5° over temperature
  • For accurate control and metering
  • Basic and reinforced insulation
  • 8 mm clearance and creepage
