TLD7002-16SHIELD

TLD7002-16SHIELD for Arduino
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD7002-16SHIELD
TLD7002-16SHIELD
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Description

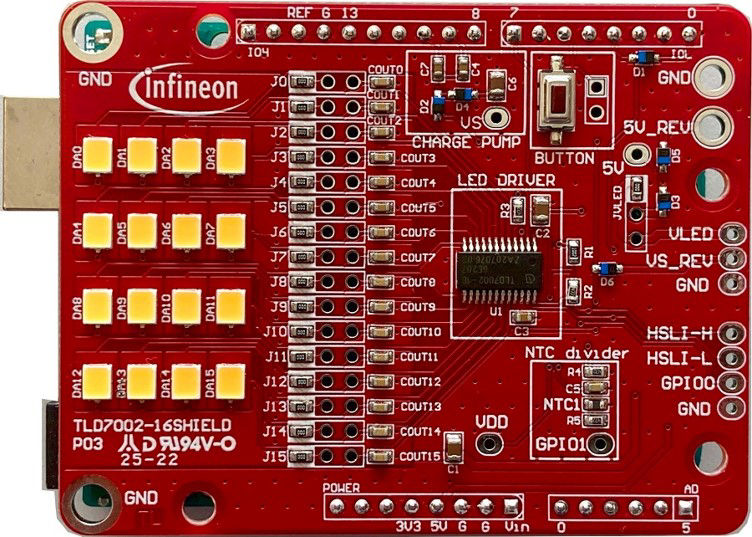

    The TLD7002-16SHIELD is an LED driver shield compatible with Arduino UNO.
  • Family
    LITIX™ Pixel Rear
  • Input Type
    DC
  • Output Current
    5 mA to 76 mA
  • Output Voltage
    0 V to 20 V
  • Qualification
    Automotive
  • Sub Application
    Lighting
  • Supply Voltage
    4.5 V to 5.5 V
  • Target Application
    Automotive
  • Topology
    Linear
Recommended
OPN
TLD700216SHIELDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLD7002-16SHIELD is an LED driver shield compatible with Arduino UNO. The TLD7002-16ES is a 16 independent-channel-LED driver with individual output current from 5 mA to 76 mA and UART over CAN interface. The only needed connection from Arduino to drive 16 mid power LEDs is an UART interface and optionally the TLD7002-16ES GPIN0 pin, which acts as a chip-select during the TLD7002-16ES one time programmable (OTP) memory programming/emulation.
