TLD5542-1_MULTI_EVAL
TLD5542-1_MULTI_EVAL
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    LITIX™ Power Flex
  • Input Type
    DC
  • Output Voltage
    3 V to 50 V
  • Qualification
    Automotive
  • Supply Voltage
    6 V to 18 V
  • Target Application
    Lighting, Automotive
  • Topology
    DC-DC converter, Buck, Boost
Recommended
OPN
TLD55421MULTIEVALTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

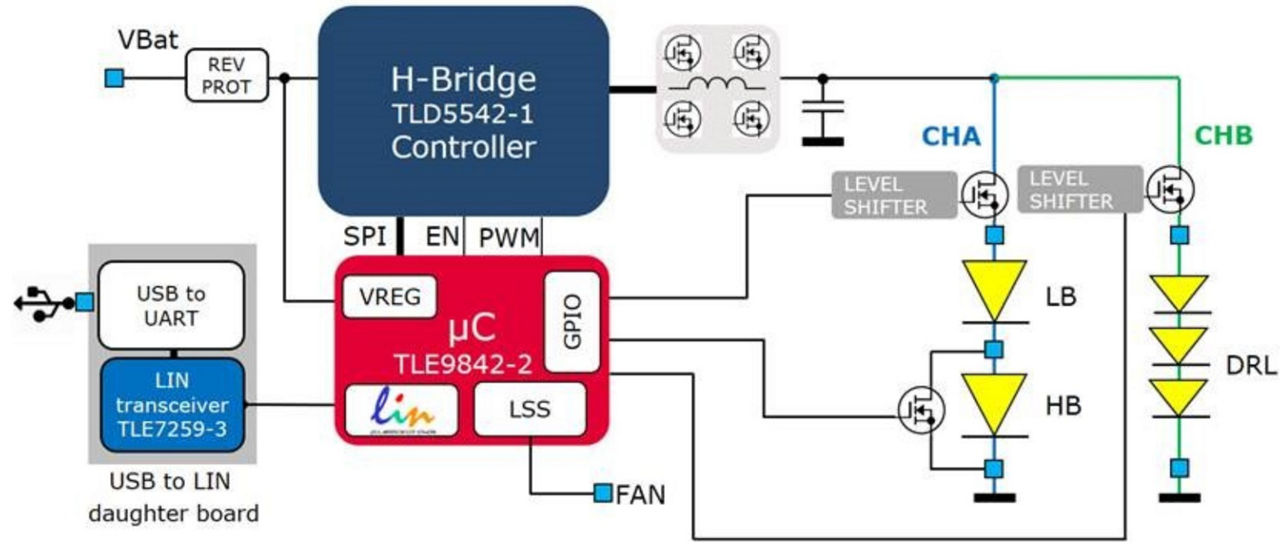

The TLD5542-1 multichannel evalboard V4.5 is an evaluation platform for the TLD5542-1, driving 3 LED functions (HB, LB, DRL) with a single DC/DC converter. Schematics and manuals are downloadable. To request the TLD5542-1 multichannel work-package, contact our sales office or distributor. The board's output can be configured easily via PC GUI, without programming, using the USB to LIN daughter board.
