TLD5501-2 BUCK DEMO

User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLD5501-2 BUCK DEMO
TLD5501-2 BUCK DEMO
User Manual

Product details

  • Board Type
    Demo Board
  • Dimensions
    100x43
  • Family
    LITIX™ Power Flex
  • Frequency
    200 kHz to 700 kHz
  • Input Type
    DC
  • Mounting
    SMD
  • Output Current
    0 A to 7 A
  • Output Voltage
    11.5 V
  • Pout
    0 W to 40 W
  • Qualification
    Automotive
  • Sub Application
    Automotive, Lighting
  • Supply Voltage
    12 V
  • Target Application
    Automotive
  • Topology
    DC-DC converter
Recommended
OPN
TLD55012BUCKDEMOTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

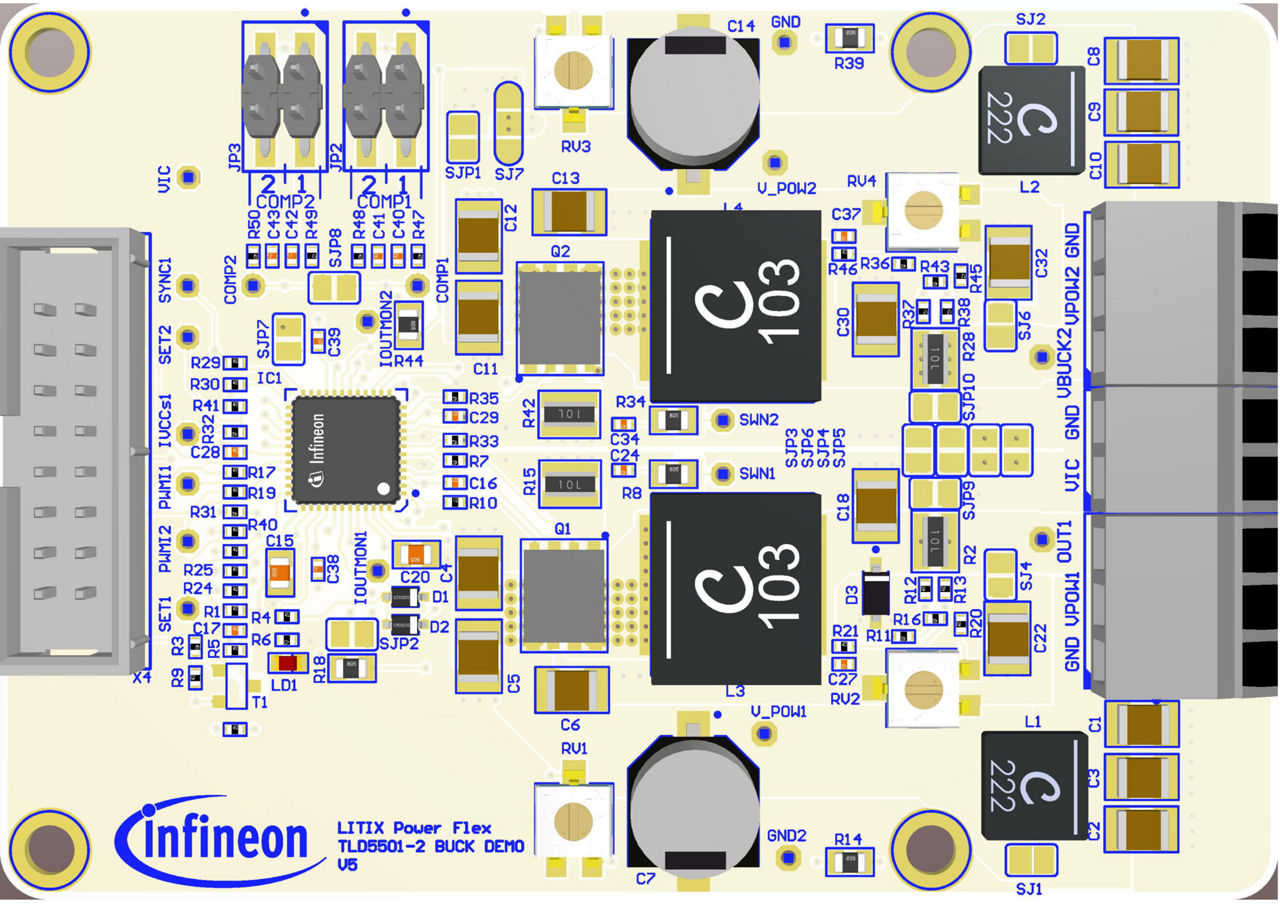

Optimize high power LED applications with TLD5501-2QV evaluation board. Drive LEDs efficiently with "Dual Buck Parallel Voltage Regulator", delivering over 80W with 90%+ efficiency. Configure board for various topologies: "Dual Buck Parallel Current Regulator," "Dual Buck Independent Voltage Regulators," "Dual Buck Independent Current Regulators," or "Single Buck Independent Current Regulator + Single Buck Independent Voltage Regulator."

Benefits

  • Dual-Channel synchronous DC/DC Controller for HIGH POWER LED drivers
  • Wide LED forward voltage Range (2 V up to 50 V)
  • Wide VIN Range (IC 4.5 V to 40 V, Power 4.5 V to 55 V)
  • Switching Frequency Range from 200 kHz to 700 kHz
  • SPI for diagnostics and control
  • Maximum Efficiency in every condition (up to 96%)
  • Constant Current (LED) and Constant Voltage Regulation
  • Limp Home Function (Fail Safe Mode)
  • EMC optimized device: Features an auto Spread Spectrum
  • LED current sense with dedicated monitor Output
  • Advanced protection features for device and load
  • Enhanced Dimming features: Analog and PWM dimming
  • LED current accuracy +/- 3%
  • Available in a small thermally enhanced PG-VQFN-48-31 package
  • Automotive AEC Qualified
