TLD5098EP_VB2G
TLD5098EP_VB2G
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    DC-DC Converter
  • Input Type
    DC
  • Output Voltage
    48 V
  • Pout max
    17 W
  • Qualification
    Automotive
  • Sub Application
    Constant voltage output Pre-regulator for rear LED lamp, Constant voltage output, Pre-regulator for rear LED lamp
  • Supply Voltage
    8 V to 27 V
  • Target Application
    Automotive Lighting
  • Topology
    Boost
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

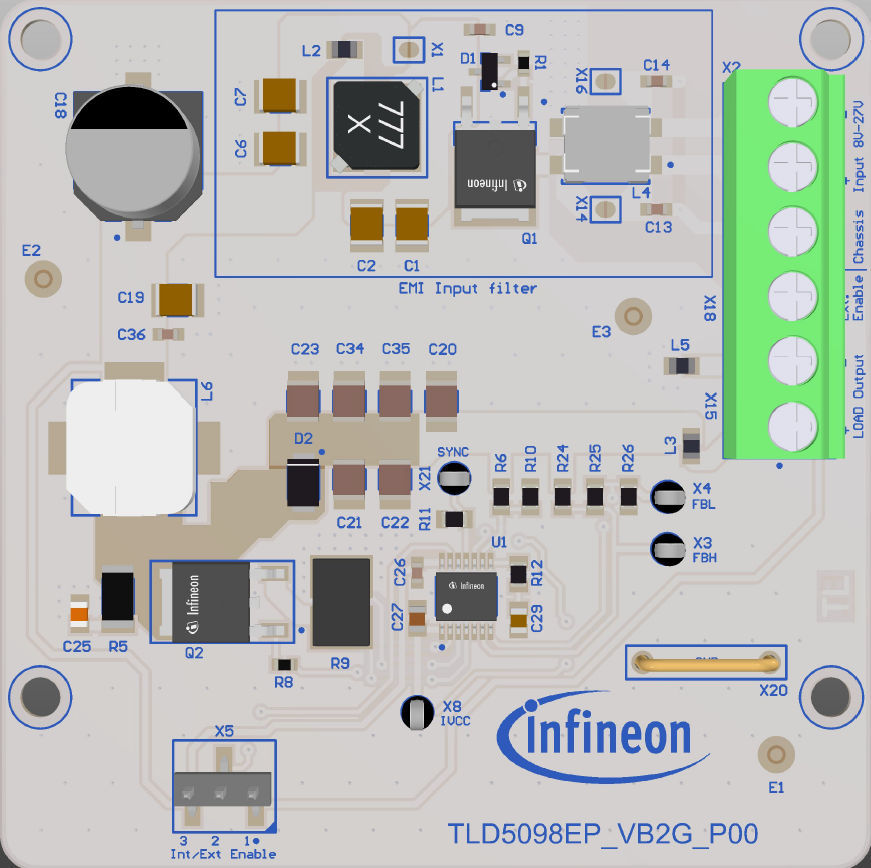

TLD5098EP_VB2G is an evaluation board in boost to ground topology designed as constant voltage regulator. It can deliver up to 17W with efficiency above 91 %.
