SHIELD_LED_PLATFORM

NEW

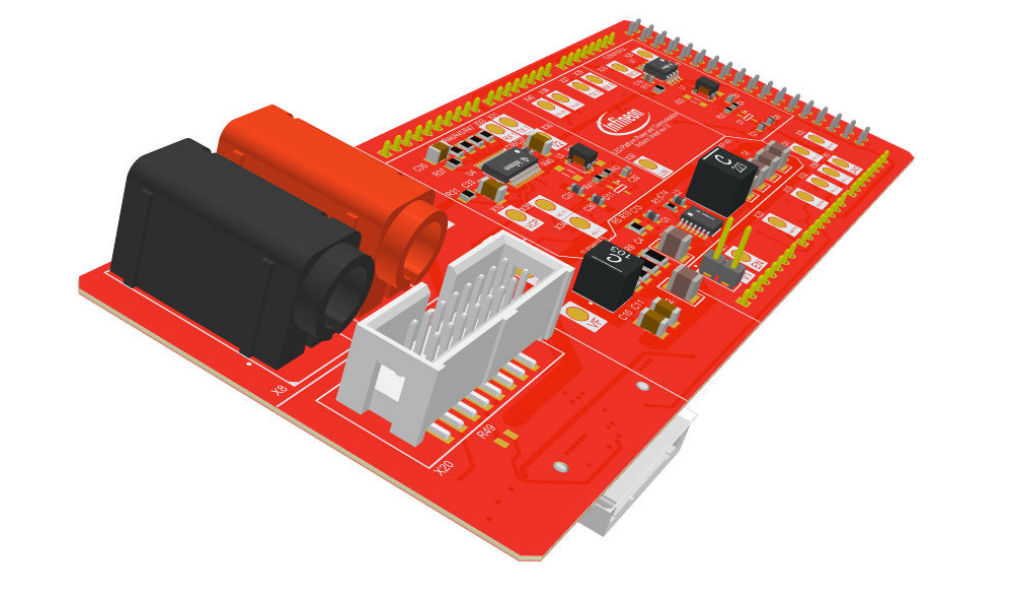

LITIX™ SHIELD_LED_PLATFORM Arduino shield
Getting Started
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SHIELD_LED_PLATFORM
SHIELD_LED_PLATFORM
Getting Started

Product details

  • Board Type
    Reference Board
  • Description
    The SHIELD_LED_PLATFORM is an Arduino shield that supplies the LED Platform reference designs.
  • Dimensions
    133.4 mm x 55 mm
  • Family
    LITIX™
  • Input Type
    DC
  • Interfaces
    LIN , UART over CAN
  • Output Current
    0 A to 2.5 A
  • Qualification
    Automotive
  • Supply Voltage
    6 V to 18 V
  • Target Application
    Lighting, Automotive
  • Topology
    Buck, Linear
OPN
SHIELDLEDPLATFORMTOBO1
Product Status coming soon
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The SHIELD_LED_PLATFORM is an Arduino shield that supplies the LED Platform reference designs and enables communication between the Traveo II Starter Kit or the uIO-Stick v2 and the LED Platform reference designs. In a complete system offering, SHIELD_LED_PLATFORM is used alongside LITIX™ REF_LEDP_ANI_EXT Animated Exterior reference design, Traveo™ II Starter Kit, and uIO-Stick V2.

Features

  • Reverse Polarity Protection
  • Compatible with Traveo II Starter Kit
  • Compatible with uIO-Stick v2

Benefits

  • Easy evaluation
  • High compatibility

Applications
