OptiMOS™ 7 40 V S3O8 MOSFET, MOTIX™ MCU (SoC) TLE987x
User Manual
board
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

S3O8_MOS_GENERIC
S3O8_MOS_GENERIC
User Manual

Product details

  • Board Type
    Reference Board
  • Country of Assembly (Last BE site, current, subject to change)
    Germany
  • Country of Diffusion (Last FE site, current, subject to change)
    Germany
  • Description

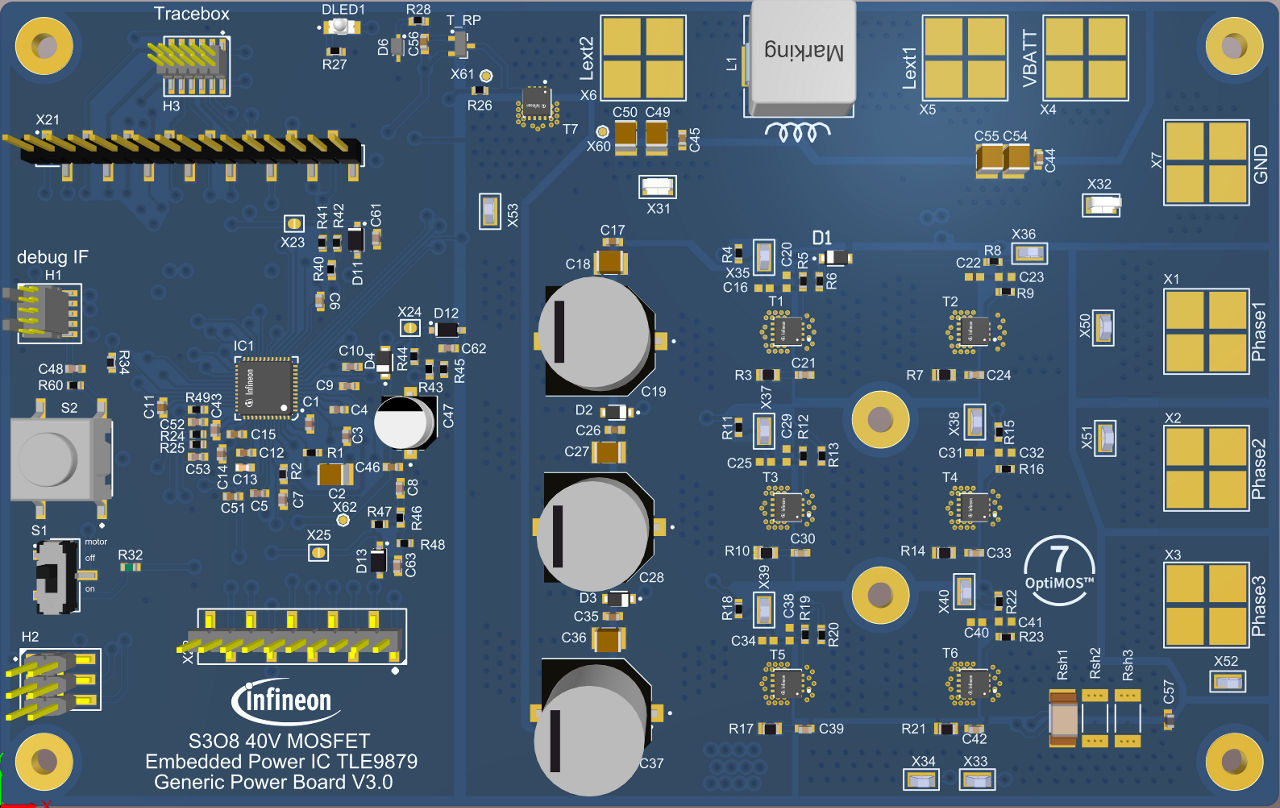

    Evaluation board for the implementation of an automotive inverter application for controlling fans or pumps driven by BLDC motors. The system is controlled by a MOTIX™ MCU(SoC) system-on-chip with integrated MOSFET drivers in combination with OptiMOS™ 7 leadless MOSFETs.
  • Family
    S3O8 with OptiMOS™ 7, MOTIX™ 32-bit motor control SoC
  • Input Type
    DC
  • Pout max
    400 W
  • Qualification
    Automotive (some passive components do not have AECQ qualification. Details in the user manual)
  • Supply Voltage range
    7 V to 18 V
  • Target Application
    Automotive fan and pump, 400 W BLDC motor for 12V application, Radiator fans, Water pumps
  • Topology
    3-phase full-bridge
Recommended
OPN
S3O8MOSGENERICTOBO1
Product Status active and preferred
Infineon Package L-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package L-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The Generic Power evaluation board is a complete solution for BLDC motor control applications. Powered by MOTIX™ TLE9879QXA40 32-bit motor control (SoC), featuring OptiMOS™ 7 MOSFETs, it is capable to drive loads up to 400W supplied by a battery voltage of 12 V. This user manual contains a description of the design, schematics and measurement reports.

Features

  • Drive loads up to 400 W
  • EMC optimized
  • Thermally optimized

Benefits

  • Automotive engine cooling fan application
  • Controlled by MOSFET driver integrated in SoC
  • Drive loads up to 400 W at a battery voltage of 12 V
  • Design description, schematics and measurements
  • EMC testing according to CISPR25 standard

Applications
