RIC70115EVAL1
coming soon

RIC70115EVAL1

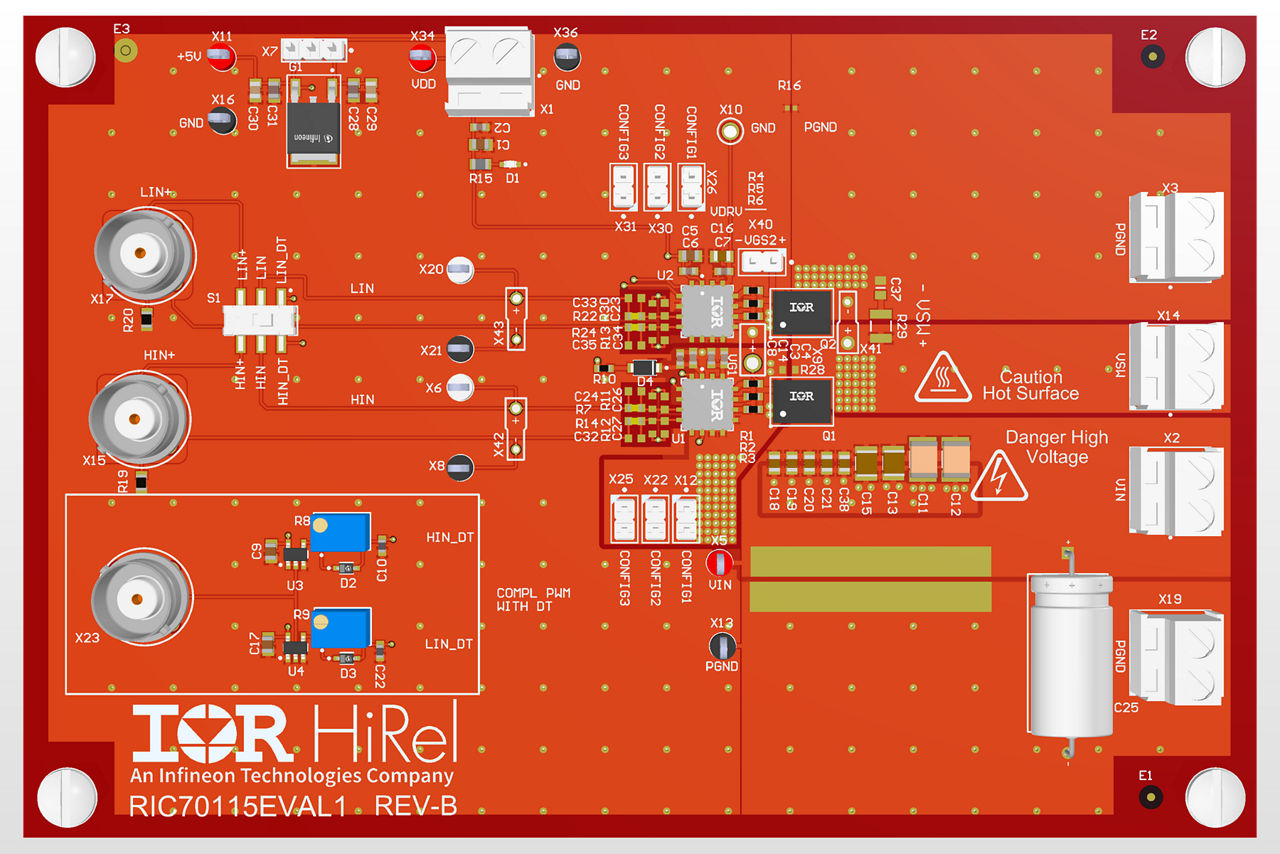

RIC70115EVAL1 is an evaluation board for RIC70115, a radiation hardened (rad hard) gate driver optimized to control GaN HEMTs.
User manual
Video

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

RIC70115EVAL1
RIC70115EVAL1
User manual


Product details

  • Board Type
    Evaluation Board
  • Configuration
    RIC70115, IG1NT052N10R
  • Family
    Rad Hard gate driver
  • Supply Voltage range
    5 V to 13.2 V
  • Target Application
    Space applications
  • Topology
    Half bridge

OPN
Product Status coming soon
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant No

Product Status coming soon
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
RIC70115EVAL1 is an evaluation board for RIC70115, a radiation hardened (rad hard) gate driver optimized to control GaN HEMTs. RIC70115 is the industry’s only GaN-based driver for high- and low-side configuration. The evaluation board was created to showcase operation with the industry’s first JANS-qualified rad hard GaN transistor, IG1NT052N10R.

Features

  • Implements truly differential input(TDI)
  • Internal LDO
  • High gate current
  • Low propagation delay
  • Supports fast switching speeds
  • Miller clamp protection
