REF_TX15W_PD60W_N1

USB-C PD and Qi wireless charging transmitter multi-charger with shared power
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

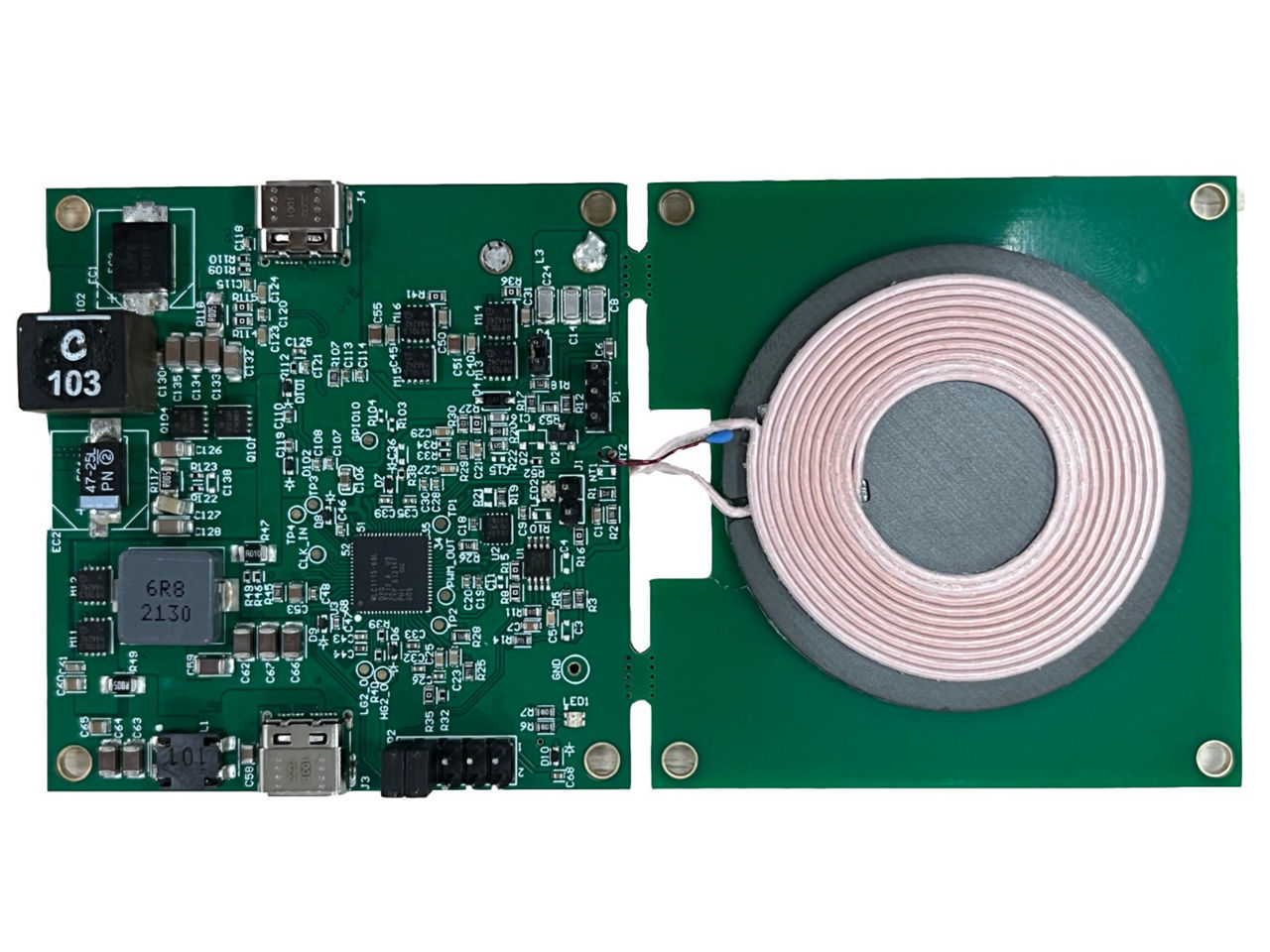

REF_TX15W_PD60W_N1
REF_TX15W_PD60W_N1
User Manual

Product details

  • Board Type
    Reference Board
  • Configuration
    WLC1115-68LQXQ CYPD7171-40LQXQ, WLC1115-68LQXQ, CYPD7171-40LQXQ
  • Dimensions
    65mm x 63mm
  • Family
    Transmitter
  • Frequency
    127 kHz to 300 kHz
  • Input Type
    DC
  • Interfaces
    I2C/USB-PD
  • Output Current
    2.5 A to 3 A
  • Output Voltage max
    20 V
  • Qualification
    Consumer
  • Sub Application
    Consumer
  • Supply Voltage
    9 V to 20 V
  • Target Application
    Power Supplies
  • Topology
    USB
OPN
REFTX15WPD60WN1TOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 0
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The REF_TX15W_PD60W_N1 is a PD and Qi multi-charger that can output power through a USB-C PD charging port and a Qi wireless power transmitter. The output power of 60 W and 15 W respectively, is shared and varies based on the connected power adapter and devices connected to the wireless transmitter and USB-C charging port. REF_TX15W_PD60W_N1 is available on demand, please contact us here to receive more information.

Features

  • USB-C PD compliant with USB PD 3.1
  • USB PD supports SPR standard with PPS
  • WLC Tx compliant with Qi v1.3.2
  • WLC Tx supporting BPP & EPP
  • Max output power USB-C PD 60 W
  • Max output power WLC 15 W
  • Power pass-through mode
  • Efficiency optimization
  • Peak output power
  • Powered by USB-C PD adapter

Benefits

  • Highly integrated system solution
  • Multi-function chargers
  • Improved customer experience
  • Highly efficient system solution

Applications
