REF_SSCB_AC_DC_1PH_SIC

Efficient kit for AC-DC solid state circuit breaker evaluation: Interactive GUI, versatile topologies, and passive cooling
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_SSCB_AC_DC_1PH_SIC
REF_SSCB_AC_DC_1PH_SIC
ea.
User Manual

Product details

Recommended
OPN
REFSSCBACDC1PHSICTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

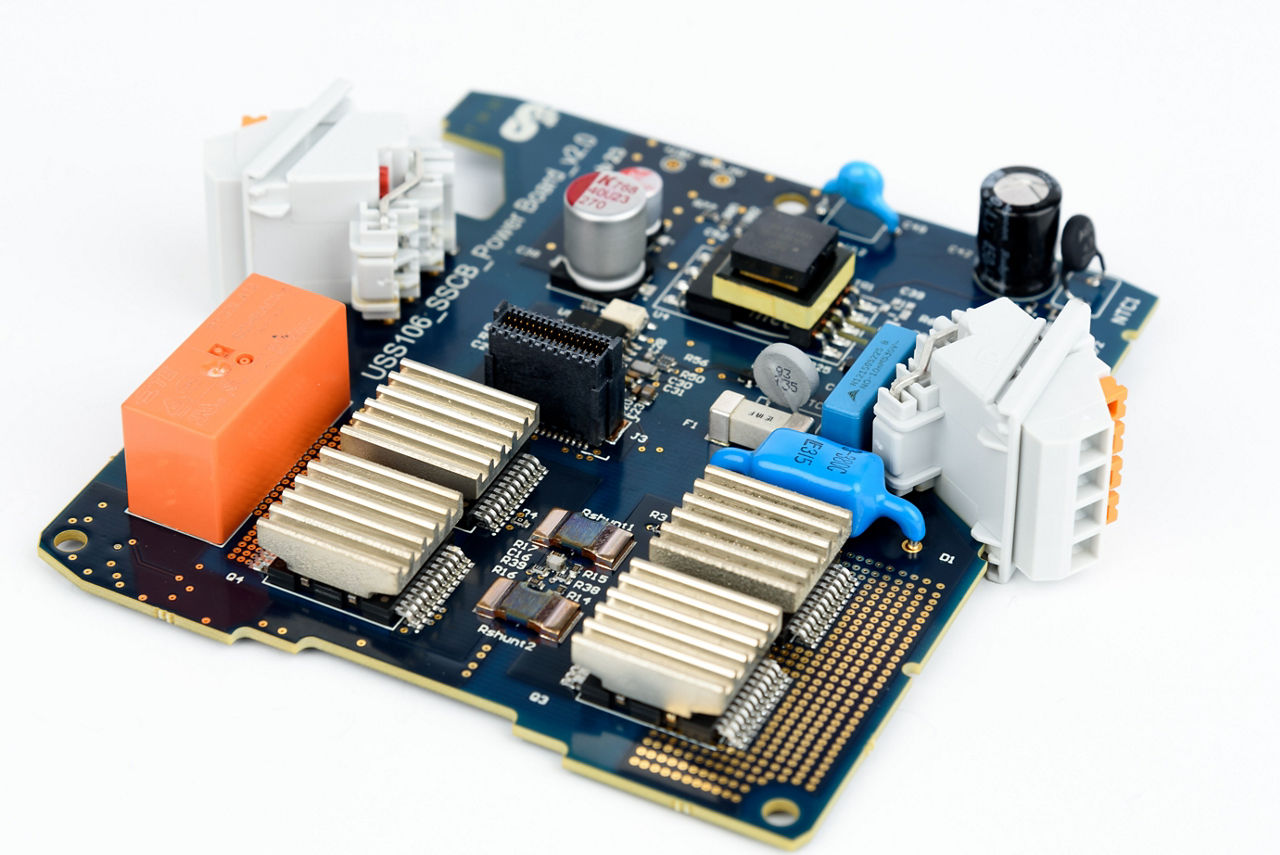

This solid-state circuit breaker (SSCB) kit allows to easily evaluate AC and DC type circuit breakers with help of an interactive GUI. This kit supports 110 VAC or 230 VAC or 350 VDC operation and 16A nominal current. It can support different SSCB topologies like 1P - N, 3P - N (stacked, cascaded), L+ - L-. It is having non-isolated integrated coolers mounted over top side cooling (TSC) SiC MOSFET packages to support passive cooling.

Features

  • Bidirectional MOSFET switch
  • Actuation: ZVS, ZCS for AC version
  • Mechanical switch for physical air gap
  • Overload and overcurrent protection
  • User programmable protection shemes
  • DC measurements: I, U, P
  • AC measurements: I, U, P, Q, S, THDi, PF
  • NTC interface
  • Shunt based overcurrent detection
  • COM interfaces (CAN, UART, Inhibit IO)

Benefits

  • Evaluate AC and DC type circuit breaker
  • Interactive GUI
  • Supports 110/230VAC or 350VDC, 16A Inom
  • Support different SSCB topologies like
    • 1P - N
    • 3P - N (stacked, cascaded)
    • L+ - L-
  • Non-isolated integrated coolers
  • Top side cooling SiC MOSFET
