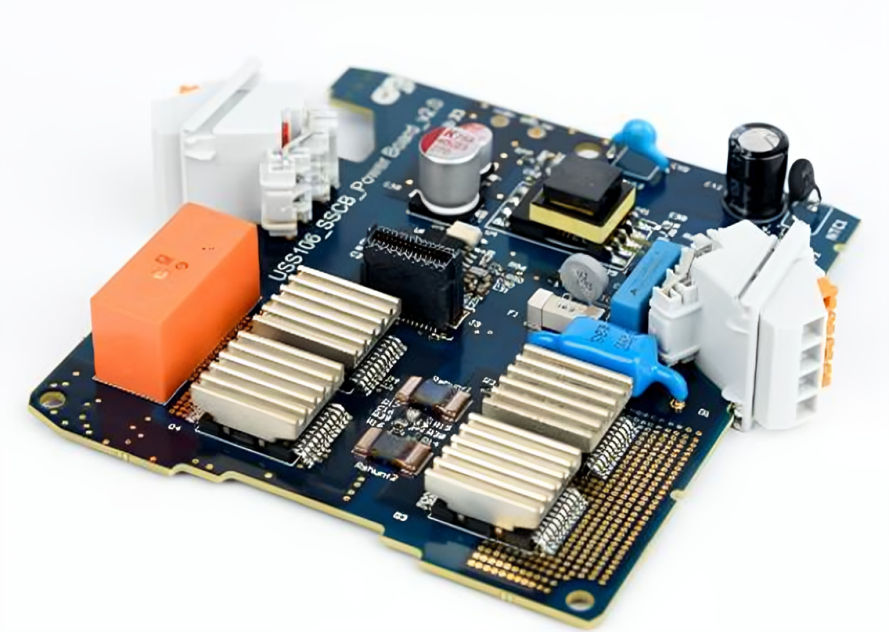

REF_SSCB_AC_DC_1PH_16A

Efficient kit for AC-DC solid state circuit breaker evaluation: Interactive GUI, versatile topologies, and passive cooling
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_SSCB_AC_DC_1PH_16A
REF_SSCB_AC_DC_1PH_16A
ea.
User Manual

Product details

  • Board Type
    Reference Board
  • Configuration
    TLS810A1LD V50, IPDQ60T010S7A, 1EDN8550, XMC4502-F100K768 AC, XMC1302-Q024X0016 AB, TLS810A1LD V33, TLS805B1SJV, TLE9350VSJ, IPD80R1K4CE, ICE5AR4770AG, 4DIR2401H, 2DIB1401F, 2DIB1400F, 1EDN7512B
  • Description
    This solid-state circuit breaker (SSCB) kit helps to quickly evaluate AC and DC-type circuit breakers with an interactive GUI. Fully featured with two boards, this kit supports 230V AC or 350V DC operation and 16A nominal current. It can support different SSCB topologies like 1P - N, 3P - N (stacked, cascaded), L+ - L-. It supports passive cooling with non-isolated integrated coolers mounted over top-side cooling (TSC) MOSFET packages.
  • Family
    MOSFET
  • Frequency max
    60 Hz
  • Input Type
    AC
  • Interfaces
    CAN
  • Output Current
    16 A to 80 A
  • Qualification
    Industrial
  • Target Application
    Industrial, Solid State Circuit Breaker, Automation
Recommended
OPN
REFSSCBACDC1PH16ATOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This solid-state circuit breaker (SSCB) kit helps to quickly evaluate AC and DC-type circuit breakers with an interactive GUI. Fully featured with two boards, this kit supports 230 VAC or 350 VDC operation and 16 A nominal current. It can support different SSCB topologies like 1 P - N, 3 P - N (stacked, cascaded), L+ - L-. It supports passive cooling with non-isolated integrated coolers mounted over top-side cooling (TSC) MOSFET packages.

Features

  • Bidirectional MOSFET switch
  • Actuation: ZVS, ZCS for AC version
  • Mechanical switch for physical air gap
  • Overload and overcurrent protection
  • DC: I, U, P measurements
  • AC: I, U, P, Q, S, THDi, PF measurements
  • No FuSa or state-of-health diagnostics
  • S7T integrated temp.sensor/NTC interface
  • Shunt based overcurrent detection
  • Ports: CAN, UART, Inhibit IO

Benefits

  • Supports 230 VAC or 350 VDC operation, 16 A
  • Interactive GUI
  • Evaluate AC & DC type circuit breakers
  • Supports various SSCB topologies like
    • 1 P - N
    • 3 P - N (stacked, cascaded)
    • L+ - L-
  • Non-isolated integrated coolers
  • Top side cooling MOSFET
  • Passive cooling

Applications
