REF-MHA0K2IMC101T

Integrated turnkey reference design for rotary fridge compressor drives
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-MHA0K2IMC101T
REF-MHA0K2IMC101T
ea.
User Manual

Product details

  • Applications
    Home Appliances
  • Board Type
    Reference Board
  • Dimensions
    78x78x46 mm
  • Family
    iMOTION™ Motor Control ICs
  • Input Voltage range
    165 - 265 V
  • Input Voltage
    220 V
  • Interfaces
    iMOTION Link, AC Line, Motorphase
  • Product Name
    REF-MHA0K2IMC101T
  • Qualification
    Industrial
  • Topology
    Full Bridge Inverter
Recommended
OPN
REFMHA0K2IMC101TTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

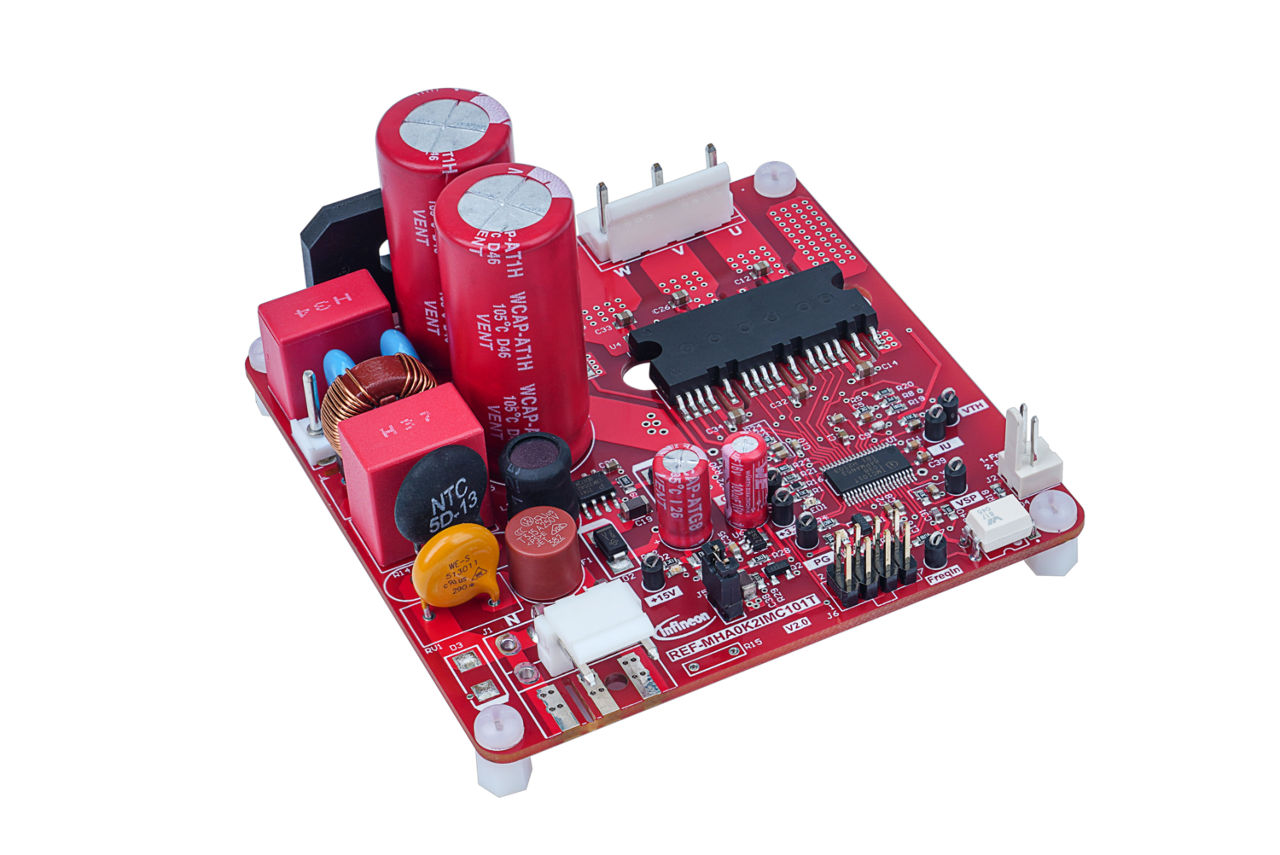

The REF-MHA0K2IMC101T is a easy-to-use solution for efficient control of refrigerator compressors. The iMOTION™ IMC100 motor controller IMC101T-T038 offers a turnkey motor control where the CIPOS™ Micro 600 V, 6 A three-phase IPM (IM241-L6S1B) provides a high integration level. This design can easily be copied to final mass-production boards and therefore enables faster time to market. This board is the successor board from REF_FRIDGE_C101T_IM231.

Features

  • 200 W max. power without heat-sink
  • CIPOS™ Micro IPM based on Reverse Conducting IGBT Gen 2 (RCD2)
  • Accurate overcurrent protection (±5 %) and built-in temperature sensor
  • MCE2.0 firmware Class B pre-certified (IEC60335)

Benefits

  • Turnkey motor control based on iMOTION™ controller with Motion Control Engine (MCE 2.0)
  • High speed accuracy of +/- 0.6% and vibration suppression with torque compensation
  • High integration based on IM241-L6S1B with built in overcurrent protection and UL certified temperature sensor

Applications

Home appliances

Bill of Material

Documents

Documents

Design resources

Diagrams

Block-diagram-REF-MHA0K2IMC101T
Block-diagram-REF-MHA0K2IMC101T
Block-diagram-REF-MHA0K2IMC101T Block-diagram-REF-MHA0K2IMC101T Block-diagram-REF-MHA0K2IMC101T

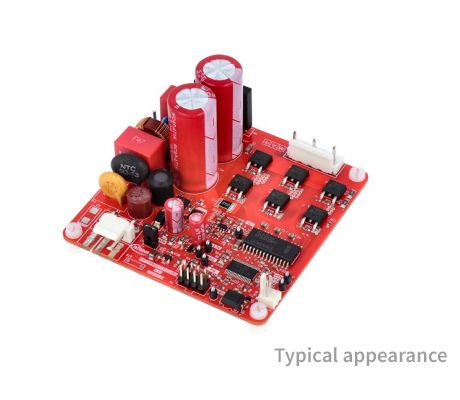

REF-Fridge-C101T-6ED REF-Fridge-C101T-6ED REF-Fridge-C101T-6ED

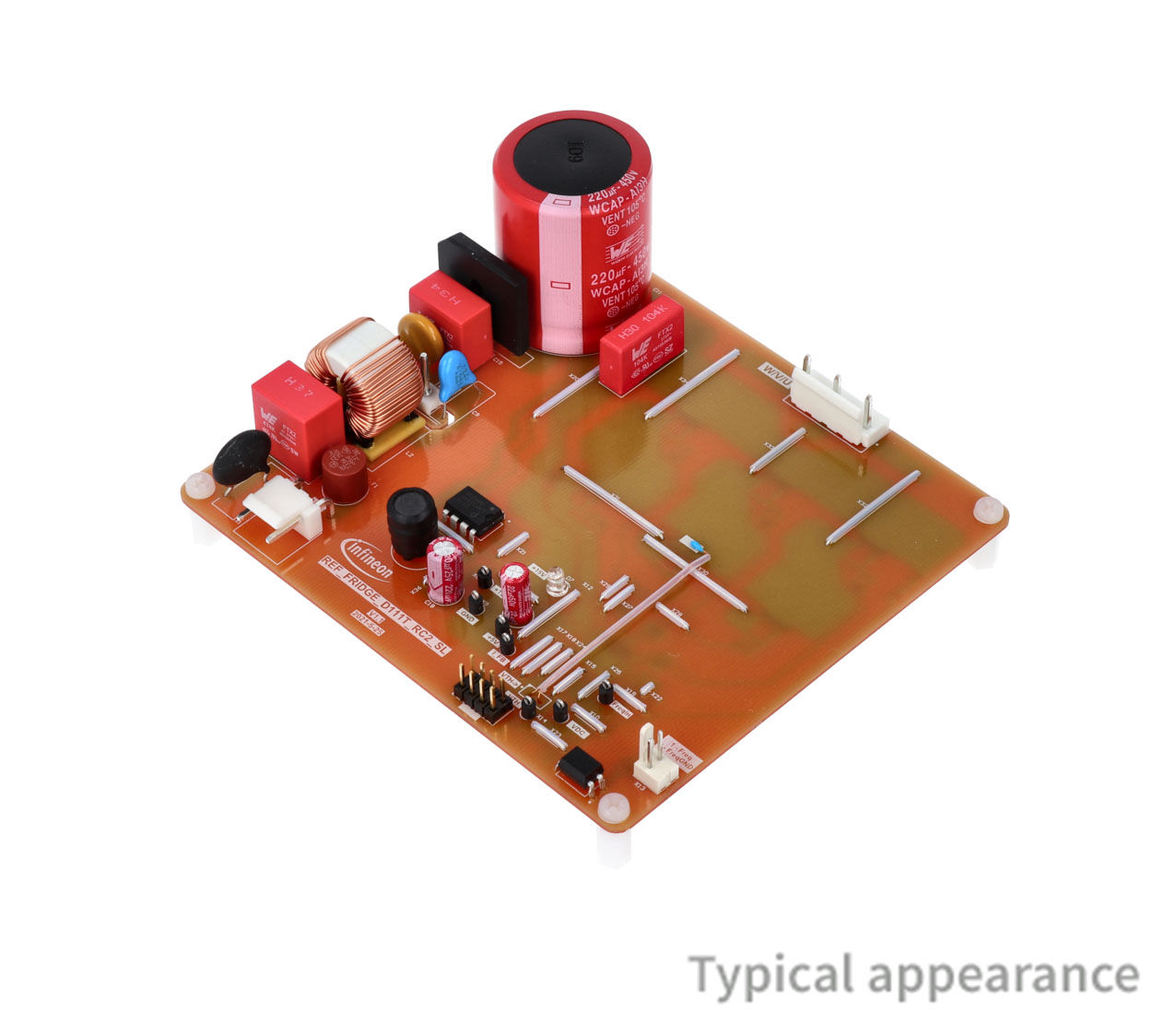

REF-Fridge-D111T-RC2-SL-4 REF-Fridge-D111T-RC2-SL-4 REF-Fridge-D111T-RC2-SL-4

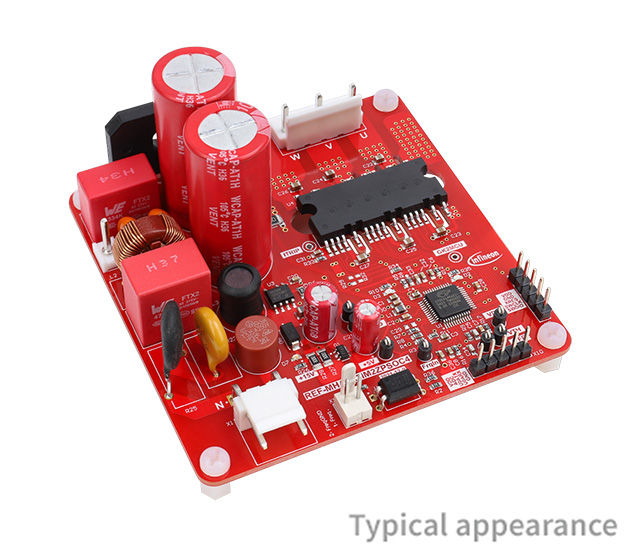

REF-MHA0K2IM2ZPSOC4 REF-MHA0K2IM2ZPSOC4 REF-MHA0K2IM2ZPSOC4

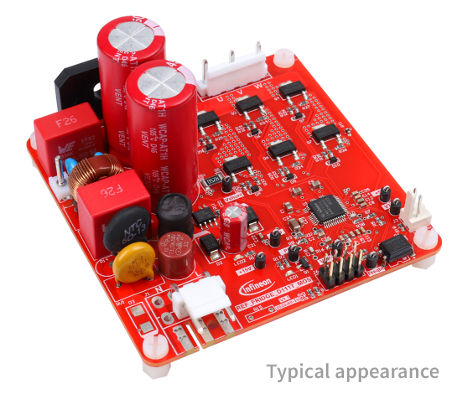

REF-Fridge-d111t-mos REF-Fridge-d111t-mos REF-Fridge-d111t-mos
×
