REF_LLC_BUCK_4CH_320W

320W high power LED driver with four constant current output channels
Application Notes
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_LLC_BUCK_4CH_320W
REF_LLC_BUCK_4CH_320W
Application Notes

Product details

  • Board Type
    Reference Board
  • Dimensions
    248mm×58mm×80mm
  • Family
    LED Driver
  • Input Type
    AC, DC
  • Output Current
    0 A to 1.5 A
  • Output Voltage
    3 V to 71 V
  • Pout max
    320 W
  • Qualification
    Standard
  • Supply Voltage
    90 V to 277 V
  • Target Application
    LED Lighting, Lighting
  • Topology
    Buck, LLC, PFC
Recommended
OPN
REFLLCBUCK4CH320WTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

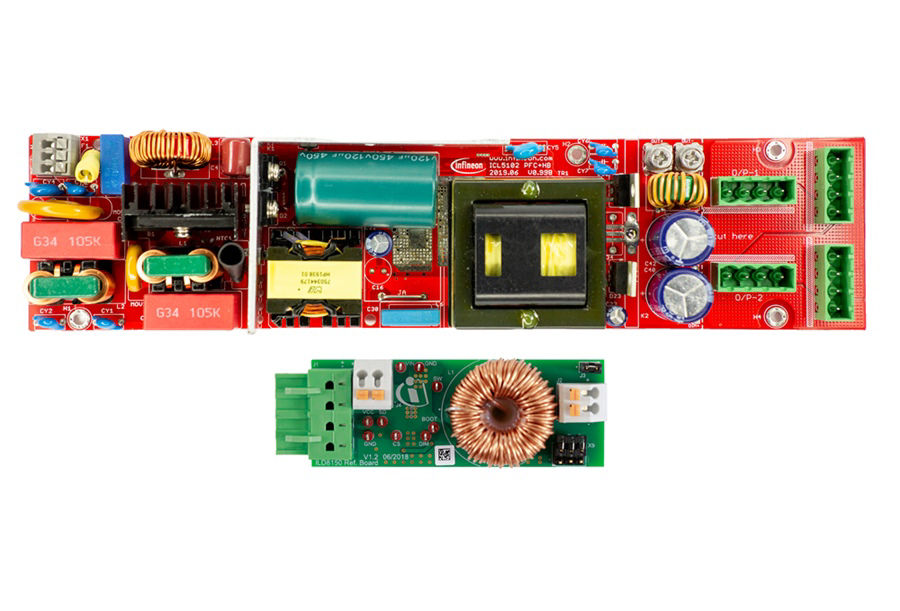

The four-channel reference design features a dual-stage half-bridge LLC and separated PFC stage, providing high-precision constant voltage output with deep dimming and flicker-free light on the secondary side. It offers significant cost savings, scalability, and low input current total harmonic distortion (iTHD less than 15%) across a universal input voltage range.

Features

  • 320W high-power design
  • High performance LLC design
  • Up to 1.5A average output current per channel
  • PWM dimming input with 250Hz to 20kHz PWM dimming frequency
  • Analog dimming 100 to 12.5%
    PWM dimming 12.5 to 0.5% with 3.4kHz flicker-free modulation

Benefits

  • Ready to go AC-DC and DC-DC solution with four channels
  • High efficiency
  • High light quality
  • Balanced BOM performance

Applications
