REF_LEDP_INT_RGB

NEW

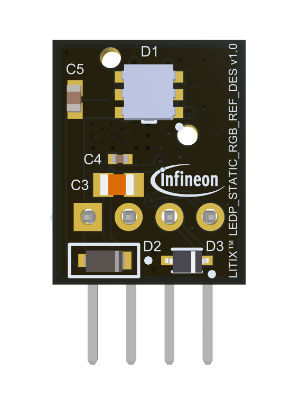

LITIX™ LED Platform Static Interior RGB reference design - to be used with SHIELD_LED_PLATFORM Arduino shield
board
Video

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_LEDP_INT_RGB
REF_LEDP_INT_RGB


Product details

  • Configuration
    Linear current sink
  • Description
    The REF_LEDP_INT_RGB is a reference design developed for automotive static RGB interior lighting application
  • Family
    LITIX™ Interior
  • Input Type
    DC
  • Interfaces
    LIN
  • Output Current range
    0 mA to 51.5 mA
  • Qualification
    Automotive, Ligthing
  • Supply Voltage range
    5.5 V to 29 V
  • Topology
    Linear

OPN
REFLEDPINTRGBTOBO1
Product Status coming soon
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes

Product Status coming soon
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The REF_LEDP_INT_RGB is a reference design developed for automotive static interior lighting application. This reference design serves as a reference for electrical design, optimized in BOM and PCB size. In a complete system offering, REF_LEDP_INT_RGB is used alongside LITIX™ SHIELD_LED_PLATFORM Arduino Shield, Traveo™ II Starter Kit, and uIO-Stick V2.
