REF-ISOPLCSSR24V

Isolated Digital Output Ref Board: 2x ITS6035S, 1x 4DIR2400H, TLS810 for 2x 24V digital outputs
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF-ISOPLCSSR24V
REF-ISOPLCSSR24V
ea.
User Manual

Product details

  • Applications
    industrial
  • Board Type
    Evaluation Board
  • Dimensions
    160 x 100 x 32 mm L*W*H
  • Family
    ProFET™ ITS6035S, ISOFACE™ 4DIR2400H
  • Input Type
    DC
  • Output Voltage max
    24 V
  • Pout
    0 W to 4 W
  • Product Name
    REF-ISOPLCSSR24V
  • Qualification
    Industrial
  • Sub Application
    industrial automation
  • Supply Voltage
    24 V
  • Target Application
    Industrial
Recommended
OPN
REFISOPLCSSR24VTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

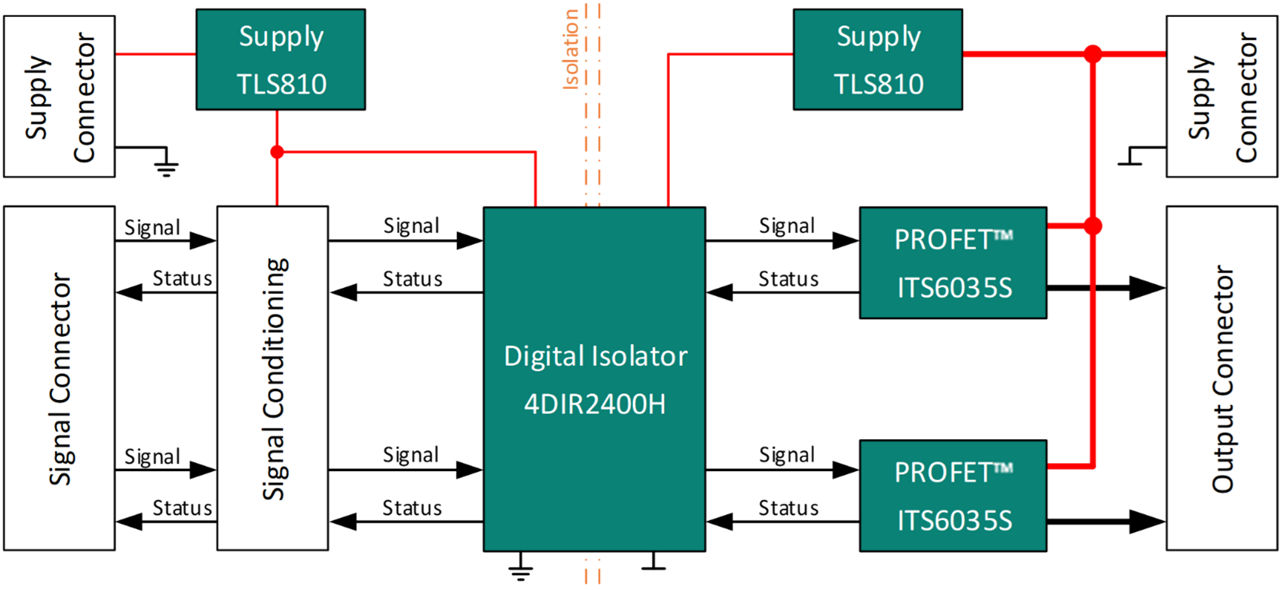

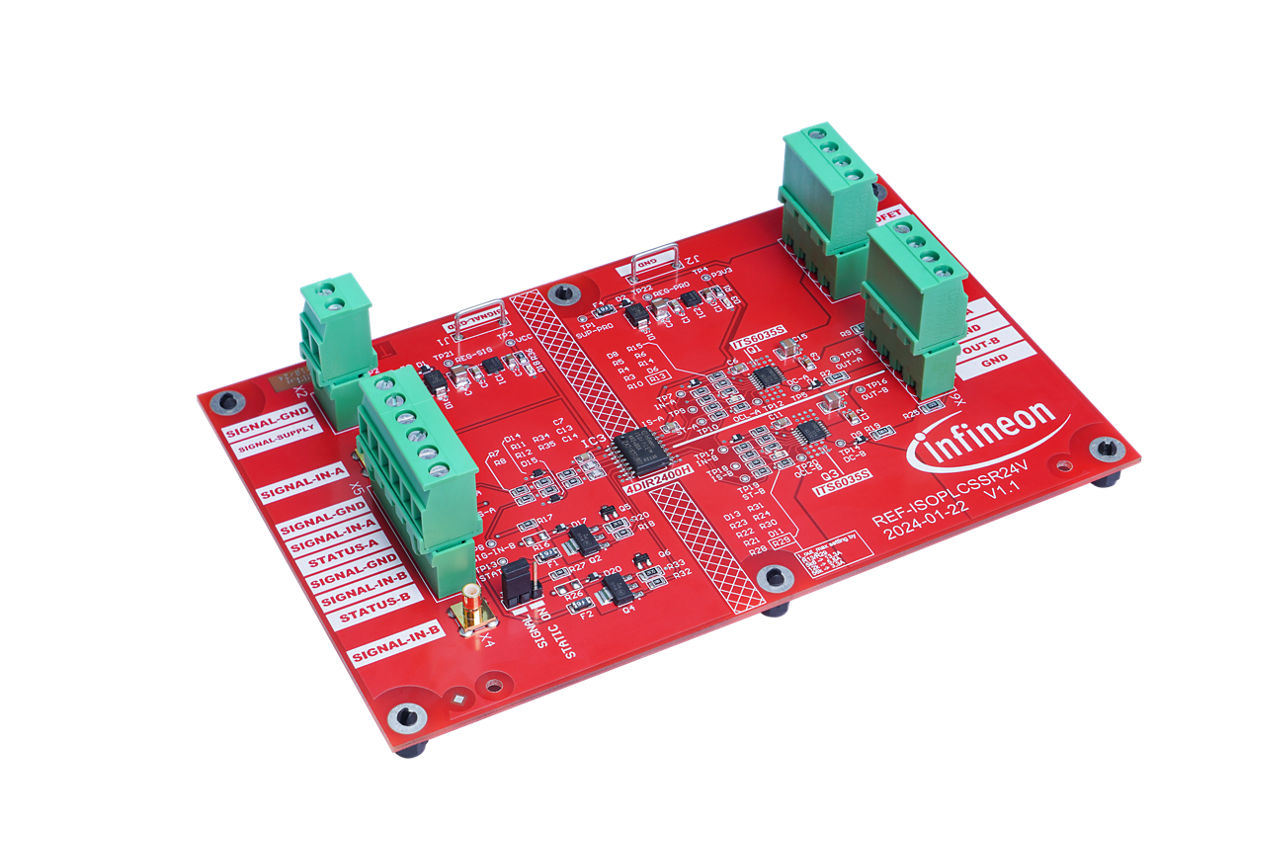

The board combines two Infineon ProFET™ ITS6035S with a digital Isolator 4DIR2400H for two 24 V digital outputs with a current capability up to 4 A DC. The reference board supports two high-side power switches with integrated diagnosis and withstands up to 5700 Vrms isolation voltage suitable for safety isolation.

Features

  • 2-channel high side switch module
  • User-adjustable current limit
  • Short-circuit protection
  • Overtemperature protection
  • Synchronized discharge
  • Galvanic input/output isolation
  • Diagnosis feedback
  • +3.3V logic supplies on board
  • Signal level 3.3V configurable
  • Static ON/OFF with jumper
  • High-side switch for industry
  • Robust power switching solution

Benefits

  • Galvanic isolation for safety
  • Precise current monitoring
  • Versatile input voltage

Applications
