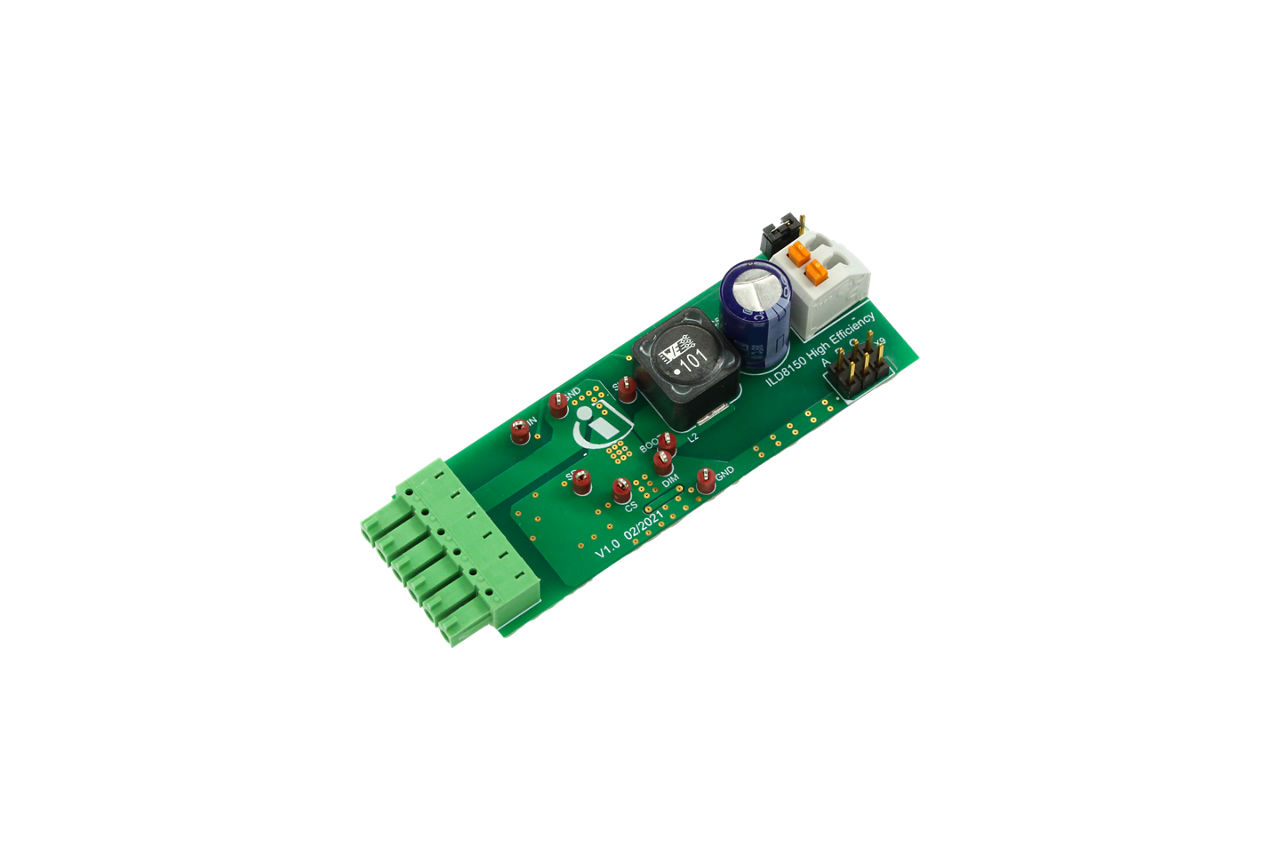

REF_ILD8150E_HE

ILD8150E high efficiency reference design with headroom voltage control
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_ILD8150E_HE
REF_ILD8150E_HE
ea.
Application Notes

Product details

  • Board Type
    Reference Board
  • Family
    ILD8150
  • Input Type
    DC
  • Interfaces
    XDPL8219 Reference design
  • Output Voltage
    30 V to 59 V
  • Package
    PG-DSO-8
  • Pout
    45 W to 88.5 W
  • Qualification
    Industrial
  • Supply Voltage
    8 V to 80 V
  • Target Application
    LED Lighting
  • Topology
    Buck
Recommended
OPN
REFILD8150EHETOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The reference board REF_ILD8150E_HE shows how to enable headroom voltage control in LED drivers by combining an AC-DC flyback controller and a DC-DC buck converter, enhancing system performance and reducing design costs.

Features

  • Input voltage up to 80Vdc
  • Up to 1.5 A output current
  • Hybrid dimming from 0.5 % to 100%
  • Digital soft-start
  • Typical ±3% output current accuracy
  • Cycle by cycle current limit
  • PG-DSO-8 package with exposed pad

Benefits

  • No external MOSFET needed
  • Deep dimming and flicker-free light
  • High efficiency headroom voltage control
  • Current always under control
