REF-DR3KIMBGSICMA

SiC reference design for integrated servo motor and drive, powered by 1200V CoolSiC™ MOSFET and EiceDRIVER™
User Manual
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

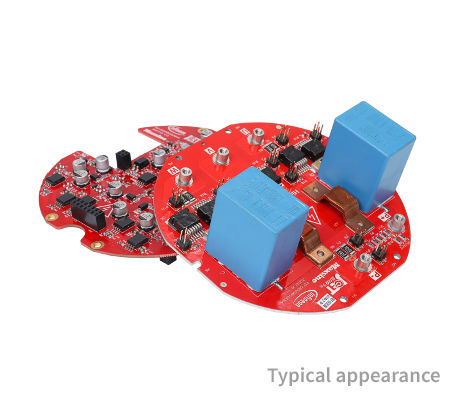

REF-DR3KIMBGSICMA
REF-DR3KIMBGSICMA
User Manual

Product details

  • Board Type
    Reference Board
  • Dimensions
    11.3x10x12 mm
  • Family
    CoolSiC™ MOSFET
  • Input Type
    DC
  • Interfaces
    EVAL-M1-101T
  • Pout max
    15000 W
  • Product Name
    REF-DR3KIMBGSICMA
  • Qualification
    Industrial
  • Target Application
    Servo, Motor Control & Drives, Robotics - Automated Guided
  • Topology
    3-Phase Motor
Recommended
OPN
REFDR3KIMBGSICMATOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The REF-DR3KIMBGSICMA reference design includes a driver board and a power board, featuring a driver circuit and a 3-phase inverter for motor-drive applications. The driver circuit is based on EiceDRIVER™ - 1EDI20I12MH and the board evaluates the CoolSiC™ MOSFET – IMBG120R045M1H solution in integrated servo drive applications. The iMOTION™ MADK EVAL-M1-101T control board can be used to evaluate the electrical performance of the system.

Features

  • 3-phase servo motor
  • Integrated drive
  • 1200 V, 45 mΩ CoolSiC™ MOSFET
  • Insulated Metallic Substrate PCB
  • Input voltage 350 – 800 VDC
  • Output volt. 220VAC, 380VAC, 480VAC
  • 1200 V single high-side gate driver
