REF_CCG7SA4F_65W_RSC
on request
RoHS Compliant

REF_CCG7SA4F_65W_RSC

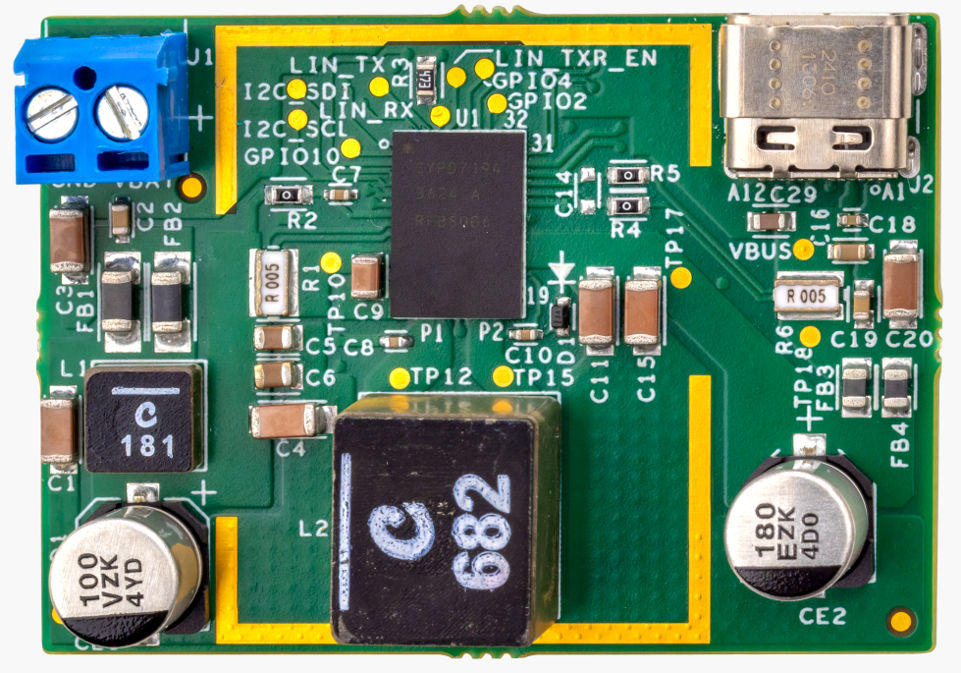

EZ-PD™ CCG7S automotive rear-seat charging solution demo with integrated MOSFETs
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_CCG7SA4F_65W_RSC
REF_CCG7SA4F_65W_RSC
User Manual

Product details

  • Board Type
    Reference Board
  • Configuration
    EZ-PD™ CCG7S single port 65 W
  • Description
    EZ-PD™ CCG7S automotive rear-seat charging solution demo with integrated MOSFETs
  • Family
    USB PD Controller
  • Input Type
    DC
  • Output Current max
    3.25 A
  • Output Voltage range
    5 V to 21 V
  • Pout max
    65 W
  • Qualification
    Automotive
  • Sub Application
    Automotive
  • Supply Voltage range
    5.5 V to 18 V
  • Target Application
    Automotive USB-C
  • Topology
    USB
OPN
REFCCG7SA4F65WRSCTOBO1
Product Status on request
Infineon Package LG-MADK-1
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level NA
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package LG-MADK-1
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level NA
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
EZ-PD™ CCG7S 65 W RSC solution reference kit is designed to meet the small form factor requirement for rear seat charger design. The new CCG7S devices offer high integration including MOSFETs while offering outstanding thermal and efficiency performance. The design can meet ISO 7637-2 and ISO 16750-2 standards in automotive application.

Features

  • 65 W output in small form factor
  • Integrate PD, BuckBoost, and MOSFETs
  • 5.5 V - 18 V operating input
  • Compliant to PD3.2 with PPS and AVS
  • Dp/Dm legacy charging protocols
  • Programmable with Cortex® M0 and flash
  • Switching frequency = 400 kHz and FCCM
  • Configurable switching frequency
  • Frequency dithering
  • Meet ISO 7637-2 and ISO 16750-2
  • VBAT to GND short circuit protection
  • GND compensation for long cable

Benefits

  • Outstanding thermal performance
  • Low BOM cost
  • Meet 12 V Vbatt automotive requirements
  • Meet CISPR 25 Class 5
  • Low standby current <100uA
  • System cost saving due to GND compensation
  • SDK support for custom features
  • Support authenticated firmware upgrade
  • USB-IF certified
  • Fast time to market

Applications
