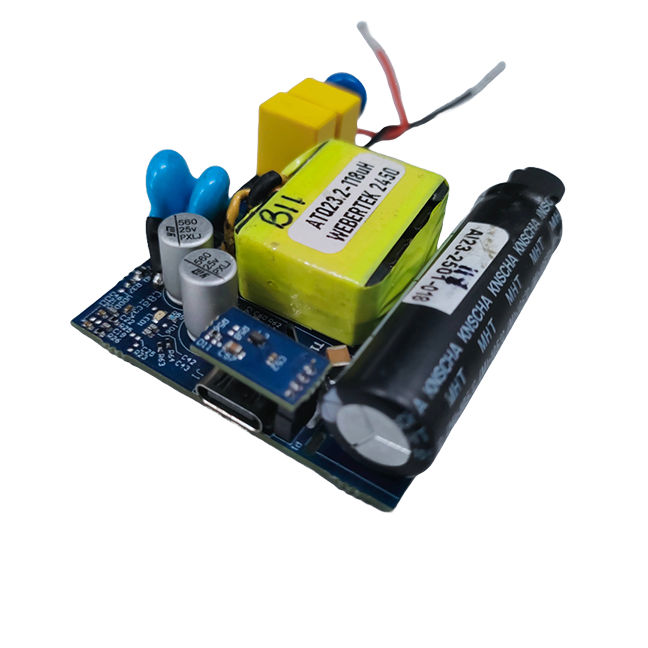

REF_65W_HFZVS_LP_PAG2

Low profile 65 W USB-C PD power adapter
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_65W_HFZVS_LP_PAG2
REF_65W_HFZVS_LP_PAG2
ea.
User Manual

Product details

  • Board Type
    Reference Board
  • Family
    USB PD Controller
  • Frequency
    20 kHz to 200 kHz
  • Input Type
    AC
  • Interfaces
    Type-C *1
  • Output Current
    0 A to 3.25 A
  • Output Voltage
    5 V to 21 V
  • Pout
    0 W to 65 W
  • Qualification
    Consumer
  • Supply Voltage
    90 V to 256 V
  • Target Application
    Power Supplies
  • Topology
    Flyback
Recommended
OPN
REF65WHFZVSLPPAG2TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The REF_65W_HFZVS_LP_PAG2 is developed for a notebook USB-PD adapter based on secondary-side controlled ZVS flyback with 100 V(AC) - 240 V(AC) operation and output voltage from 5 V to 20 V. The output power is 65 W. The design meets the new EuP Lot6 tiny load and notebook adapter peak load requirement. It features a low profile (16.25 mm Z height) design with a power density of 26.6 W/in3.

Features

  • Best-in-class tiny load efficiency
  • Supports laptop peak load
  • High power density (uncased 26 W/in³)
  • 65 W output wattage
  • Supports PD 3.2
  • Operates on BC1.2, Apple charging, QC5.0
  • High frequency operation
  • 100 - 240 V input voltage
  • 5 - 20 V output voltage
  • Integrated X-cap discharge feature
  • Firmware upgrade over CC

Benefits

  • Highly integrated system solution
  • Compliance with DoE VI and CoC Tier2
  • IEC62368 x-capacitor discharge
  • Low standby power consumption < 30 mW
  • Support firmware upgrade over USB-C
  • Meets EuP Lot6 5 V and 20 V tiny load
