33W USB-PD Type-C charger with PPS support using ICE5QSBG
Application Notes
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_5QSBG_33W1
REF_5QSBG_33W1
Application Notes

Product details

  • Applications
    USB PD Charger/Adapter
  • ccm operation
    no
  • Device
    ICE5QSBG
  • Dimensions
    40mmx40mmx18mm
  • Family
    Power Controller (PWM, PFC), MOSFET
  • Full Power
    33
  • Gen
    5
  • IC Temp (@25°C 85Vac)
    83.6
  • Inductance
    400uH
  • Input Type
    AC
  • Input Voltage range
    wide
  • Input Voltage
    90 V to 265 V
  • Iout (1)
    12V/2.25A, 11V/3A, 9V/3A, 5V/3A
  • Isolated
    yes
  • Mode
    QR
  • Number of Outputs
    1
  • Output Current
    0 A to 3 A
  • Output Voltage
    3.3 V to 12 V
  • Package
    DSO-8
  • Pout max
    33 W
  • PowerESIM
    no
  • Product Name
    REF_5QSBG_33W1
  • Qualification
    Standard
  • Remark
    high efficiency
  • Stand-by max (@ Vin 230V)
    56 with x cap discharge
  • Stand-by max (@ max Vin (typ.300V))
    60 with x cap discharge
  • Stand-by max (@ Vin 115V)
    35 with x cap discharge
  • Sub Application
    Charger, Offline SMPS
  • Supply Voltage
    90 V to 264 V
  • Target Application
    SMPS, Consumer, Power Supplies, Charger
  • Topology
    Isolated, Flyback
  • transformer footprint
    RM8
  • Type
    IC only
  • Vout (1)
    12V/2.25A, 11V/3A, 9V/3A, 5V/3A
OPN
REF5QSBG33W1TOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

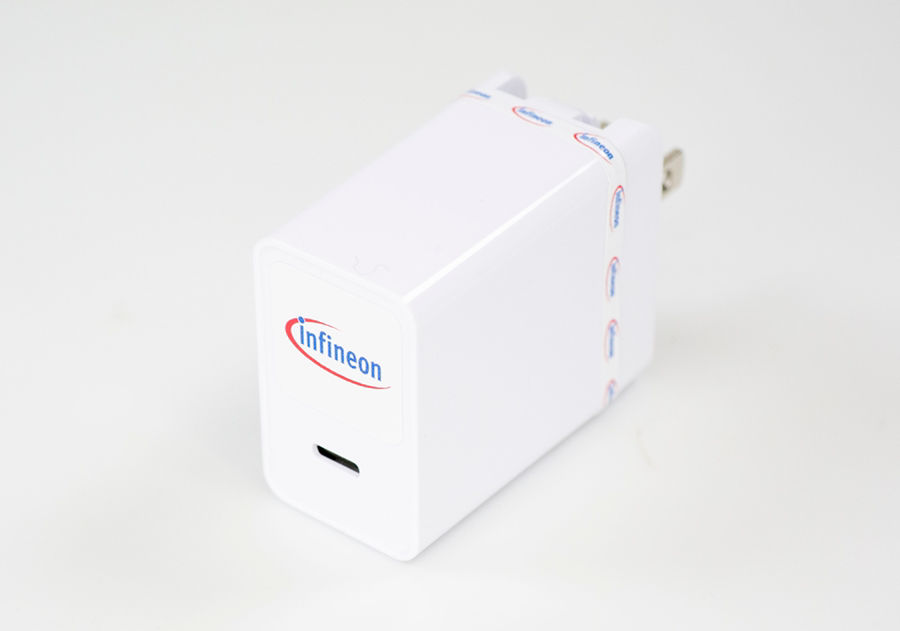

The REF_5QSBG_33W1 is a 33W USB-PD Type-C charger reference design showcasing high performance within regulatory limits and a small form factor. It supports a universal input voltage range of 90264VAC, offering 5V/3A, 9V/3A, 12V/2.25A, and 3.311V/3A (PPS) outputs. With a peak efficiency of 90% and low standby input power of <60mW, it delivers efficient and versatile charging capabilities.
