16W isolated flyback auxiliary power supply for smart metering and industrial applications
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_5BR3995CZ_16W1
REF_5BR3995CZ_16W1
ea.
Application Notes

Product details

  • Board Type
    Reference Board
  • Dimensions
    140 (L) x 45 (W) x 35 (H) mm
  • Family
    CoolSET™
  • Frequency
    65 kHz
  • Input Type
    AC
  • Input Voltage
    230 V
  • Iout
    0.5 A
  • Output Current
    1 A, 0.2 A, 0.2 A
  • Output Voltage
    12 V, 5 V, 5 V
  • Pout max
    16 W
  • Product Name
    REF_5BR3995CZ_16W1
  • Qualification
    Industrial
  • Sub Application
    Offline SMPS
  • Target Application
    Home Appliances, Metering, SMPS, Consumer, Industrial, Power Supplies
  • Topology
    Flyback
  • Type
    integrated
Recommended
OPN
REF5BR3995CZ16W1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

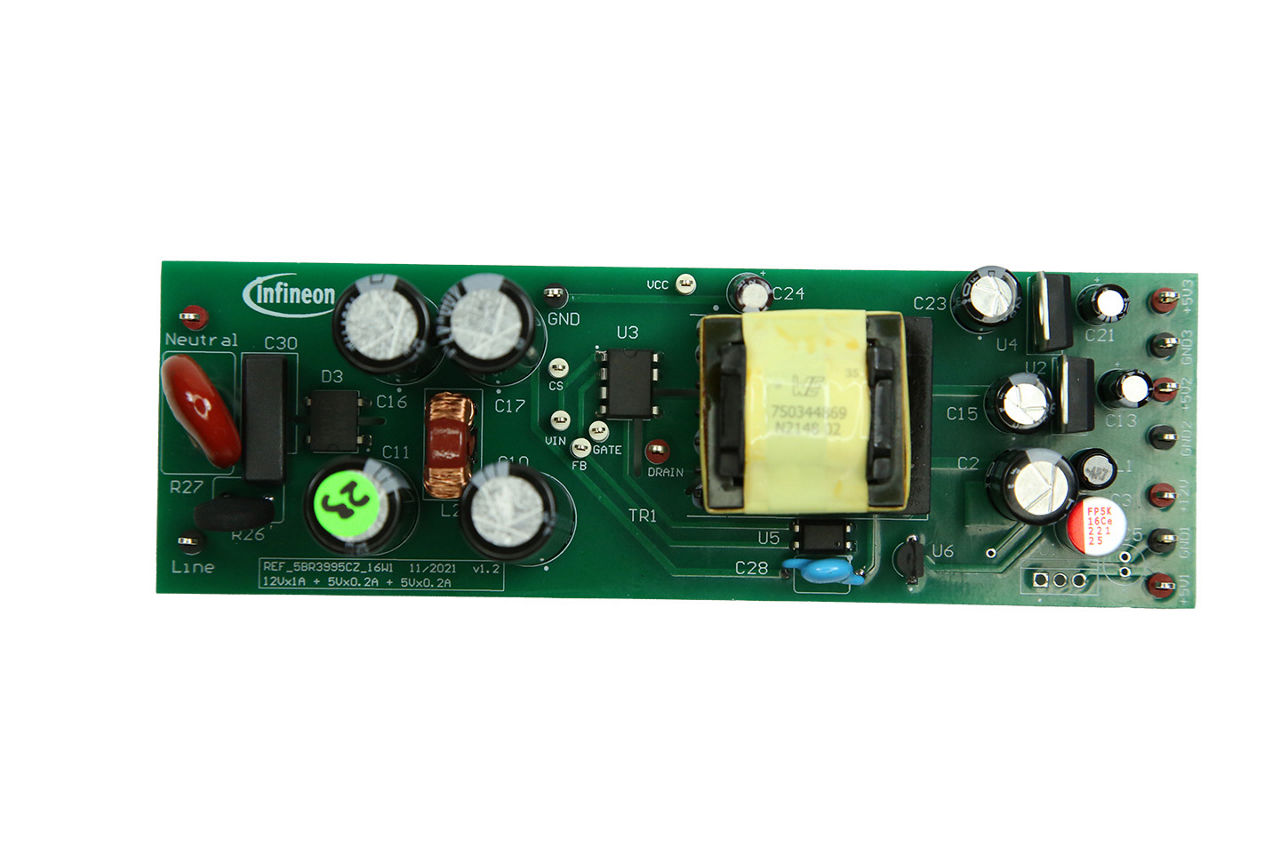

The REF_5BR3995CZ_16W1 is an auxiliary power supply reference design configured in a flyback topology and is based on Infineon’s ICE5BR3995CZ , a product of the 5th generation fixed frequency CoolSET™ family .The power supply supports an ultra-wide input range up to 460 VAC with 12 V / 1 A, 5 V / 0.2 A and 5 V / 0.2 A isolated outputs.

Features

  • Universal input 85~460 VAC
  • Output #1: 12 V / 1 A
  • Output #2: 5 V / 200 mA
  • Output #3: 5 V / 200 mA
  • > 74% full-load efficiency @ 230 VAC

Benefits

  • Ultra-wide input range up to 460 VAC
  • Multi-output support for relay, MCU and communication module
  • Robust operation with integrated 950 V MOSFET and line over voltage protection
