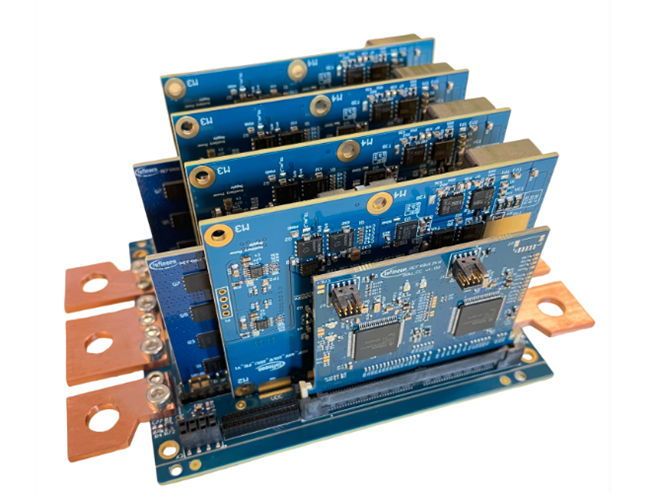

REF_48V_12KW_BBU_PPC_SI

Reference design for server battery backup unit (BBU) based on partial power concept (PPC)
Product Brief

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_48V_12KW_BBU_PPC_SI
REF_48V_12KW_BBU_PPC_SI
Product Brief

Product details

  • Board Type
    Reference Board
  • Configuration
    TLS205B0EJ V50, TLT9251VLE, TLS208D1EJ V33, TLE4973-AE35D5-S0001, PSC3M5FDS2AFQ1, ISCH42N04LM7, ISC031N08NM6, BAT 54-04W H6327, 2EDB7259KQ1, 2EDL8124G, 2EP130R, BAS 3005A-02V H6327, BAS 3010S-02LRH, E6327, BAT 165 E6327, ISC014N08NM6
  • Efficiency
    99%
  • Input Type
    DC
  • Input Voltage
    48 V
  • Output Current
    250 A
  • Power max
    12000 W
  • Target Application
    Data centers , AI data centers
  • Topology
    DC/DC, Buck-boost, Full-bridge, High side bi-directional protection switch, Non-isolated DC-DC converter
Recommended
OPN
REF48V12KWBBUPPCSITOBO1
Product Status active and preferred
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The reference design is a compact and high-efficiency,bi-directional battery backup unit (BBU) solution. It combines high power density with fast dynamic performance, robust protection, and seamless integration into rack management, making it ideal for modern, space- and energy‑constrained deployments such as AI data centers.
