REF_45W1_ZVS_184XM

CoolSET™ SiP ICE184XM reference design
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_45W1_ZVS_184XM
REF_45W1_ZVS_184XM
Application Notes

Product details

Recommended
OPN
REF45W1ZVS184XMTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

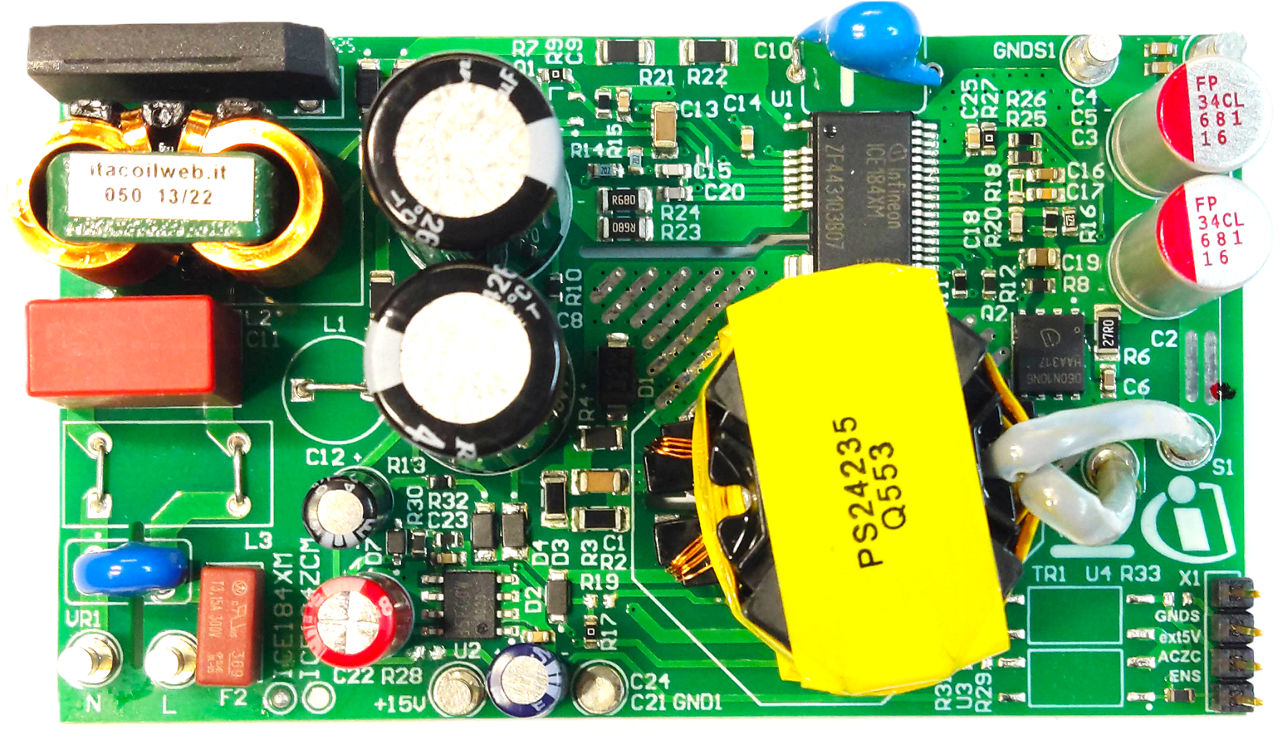

ICE184XM reference design for home appliances auxiliary power supply with Infineon’s latest CoolSET™ SiP ICE184XM integrated 800 V MOSFET flyback controller IC, having a comprehensive set of features and protections like X-Cap discharge, line over-voltage protection and over-current protection, LDO enable. The nominal power is 45 W with two outputs, 12 V and 3.75 A isolated output and 15 V 150 mA non-isolated output that can be disabled.

Features

  • Universal Input: 90 ~ 264 VAC, 50/60 Hz
  • Output 1: 12 V
  • Output Current 1: 3.75 A
  • Output 2: 15 V (non isolated)
  • Output Current 2: 0.15 A
  • >92% full load efficiency at 230 V
  • X-Cap discharge

Benefits

  • Additional non isolated 15 V output
  • High-efficiency design with SR
  • Robust operation
  • 800 V MOSFET integration
  • Simplified circuitry-low component count
  • LDO output disable via integrated CT
