Active and preferred

REF_3K3W_HFHD_PSU

500 kHz high density 3 kW GaN rectifier for server and telecom applications
Application Notes
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_3K3W_HFHD_PSU
REF_3K3W_HFHD_PSU
ea.
Application Notes

Product details

  • Efficiency
    97.4%
  • Input Type
    AC
  • Output Voltage Type
    DC
  • Output Voltage
    48 V to 51 V
  • Power max
    3300 W
Recommended
OPN
REF3K3WHFHDPSUTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

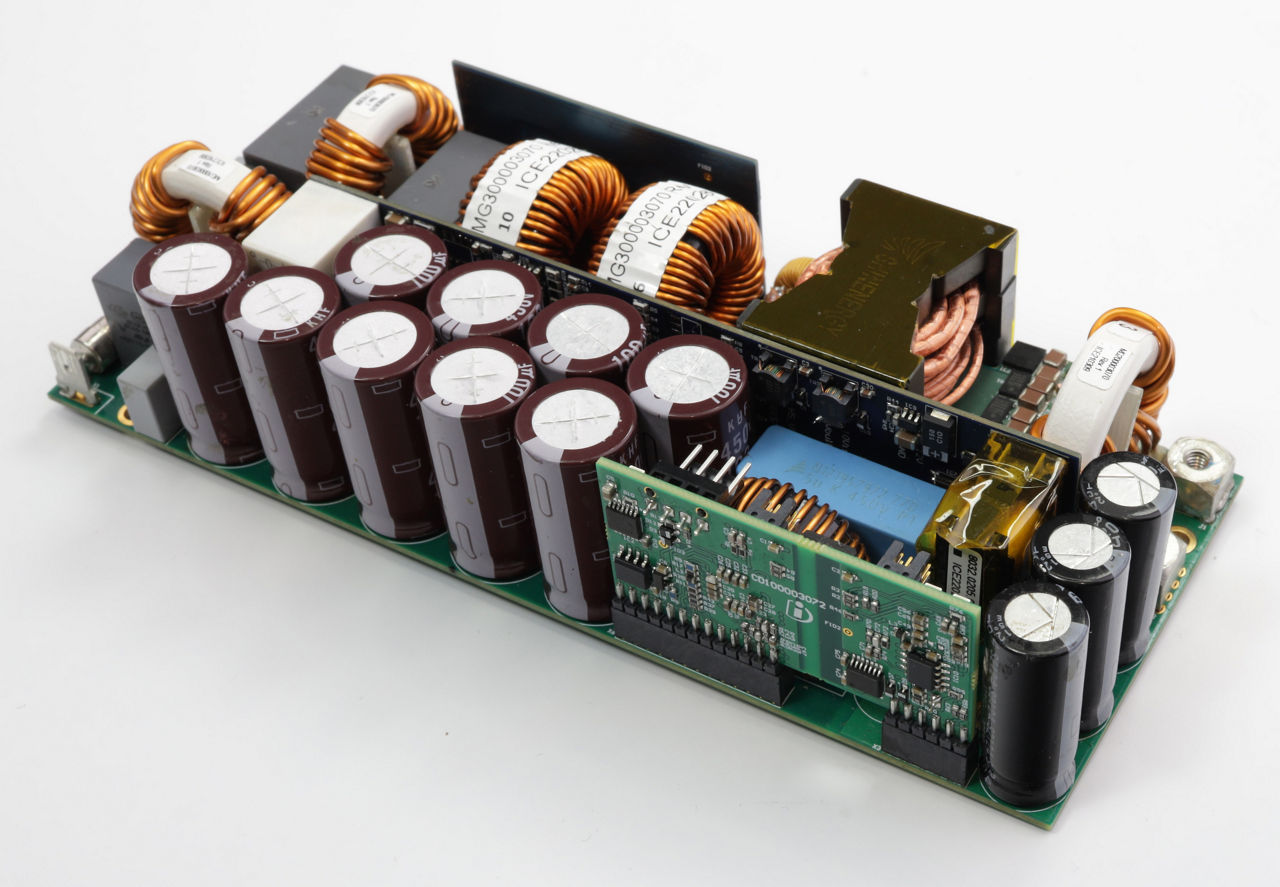

REF_3K3W_HFHD_PSU is a 3.3 kW, 95 W/in³ power supply for server and telecom using GaN, SiC and Si devices. The front-end AC-DC converter is a two-phase SiC interleaved bridgeless totem-pole stage for power factor correction, while the high-frequency (500 kHz) DC-DC converter to provide isolation and regulate output voltage is a GaN LLC half-bridge, with full-bridge rectification. The PSU includes a baby-boost stage to hold-up time requirements.Be the first to receive this board. Pre-order here.

Features

  • 97.4% efficiency @95 W/in³
  • High frequency GaN LLC design (500 kHz)
  • Fully integrated transformer structure
  • 2-ph interleaved totem-pole SiC AC-DC

Benefits

  • Infineon solution using GaN, SiC and Si
  • Highest efficiency and power density
  • Digital control for both converters
  • Hold up time extension circuit
