REF_10WTX_QI_4102

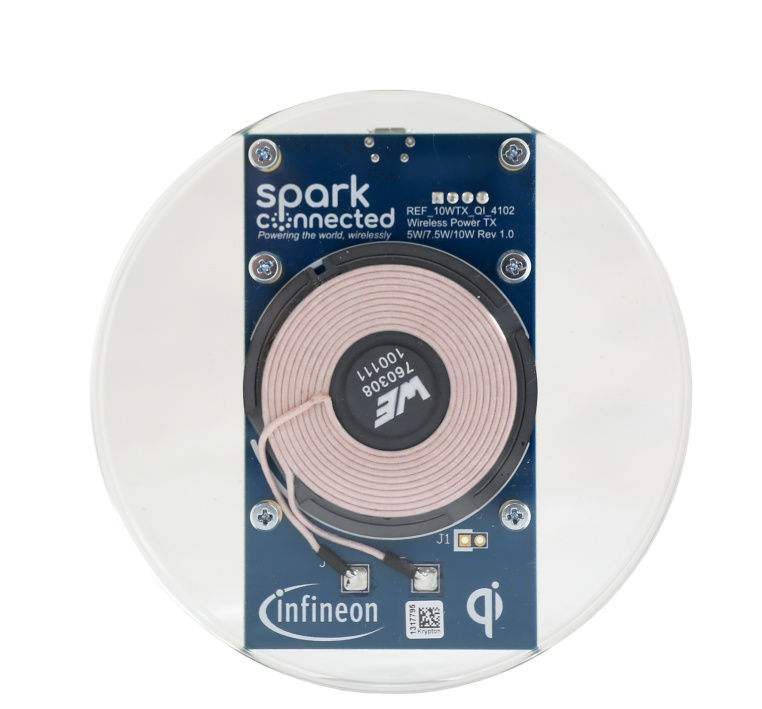

Reference design board - 15W Qi transmitter for charging smartphones featuring XMC6521SC-Q040X & WCDSC006

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_10WTX_QI_4102
REF_10WTX_QI_4102

Product details

  • Board Type
    Reference Board
  • Dimensions
    50mm*88mm
  • Family
    OptiMOS™, P-Channel MOSFET, Small signal MOSFETs
  • Frequency
    127.8 kHz to 127.8 kHz
  • Interfaces
    UART
  • Pout
    0 W to 15 W
  • Product Name
    REF_10WTX_QI_4102
  • Qualification
    Consumer
  • Sub Application
    wireless charging
  • Supply Voltage
    5 V to 12 V
  • Target Application
    Consumer
  • Topology
    Boost, Half Bridge
Recommended
OPN
REF10WTXQI4102TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 15W wireless power transmitter evaluation module supports 9-12V input voltage and QC 3.0 adapters. It provides a certified platform for WPC v1.2.4 receivers and smartphones with fast charge capability, offering up to 15W power transfer, fixed frequency power transfer, and improved accuracy of foreign object detection (FOD). This cost-optimized architecture reduces development time for end applications.
