REF_100W_2C_SSFB_PAG1

100 W USB-C dual-port charger reference design with single stage PFC
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_100W_2C_SSFB_PAG1
REF_100W_2C_SSFB_PAG1
User Manual

Product details

  • Configuration
    PAG1S, PAG1P, CCG7DC, IPA80R280P7XKSA1, BSC093N15NS5, IPZ40N04S53R1ATMA1, ESD245, ESD239
  • Dimensions
    60*60*28 (mm^3)
  • Family
    USB PD Controller
  • Frequency
    47 Hz to 63 Hz
  • Input Type
    AC
  • Output Current
    0 A to 5 A
  • Output Voltage
    3.3 V to 21 V
  • Pout max
    100 W
  • Qualification
    Consumer
  • Sub Application
    USB-C Chargers
  • Target Application
    Power Supplies
  • Topology
    Flyback
Recommended
OPN
REF100W2CSSFBPAG1TOBO2
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

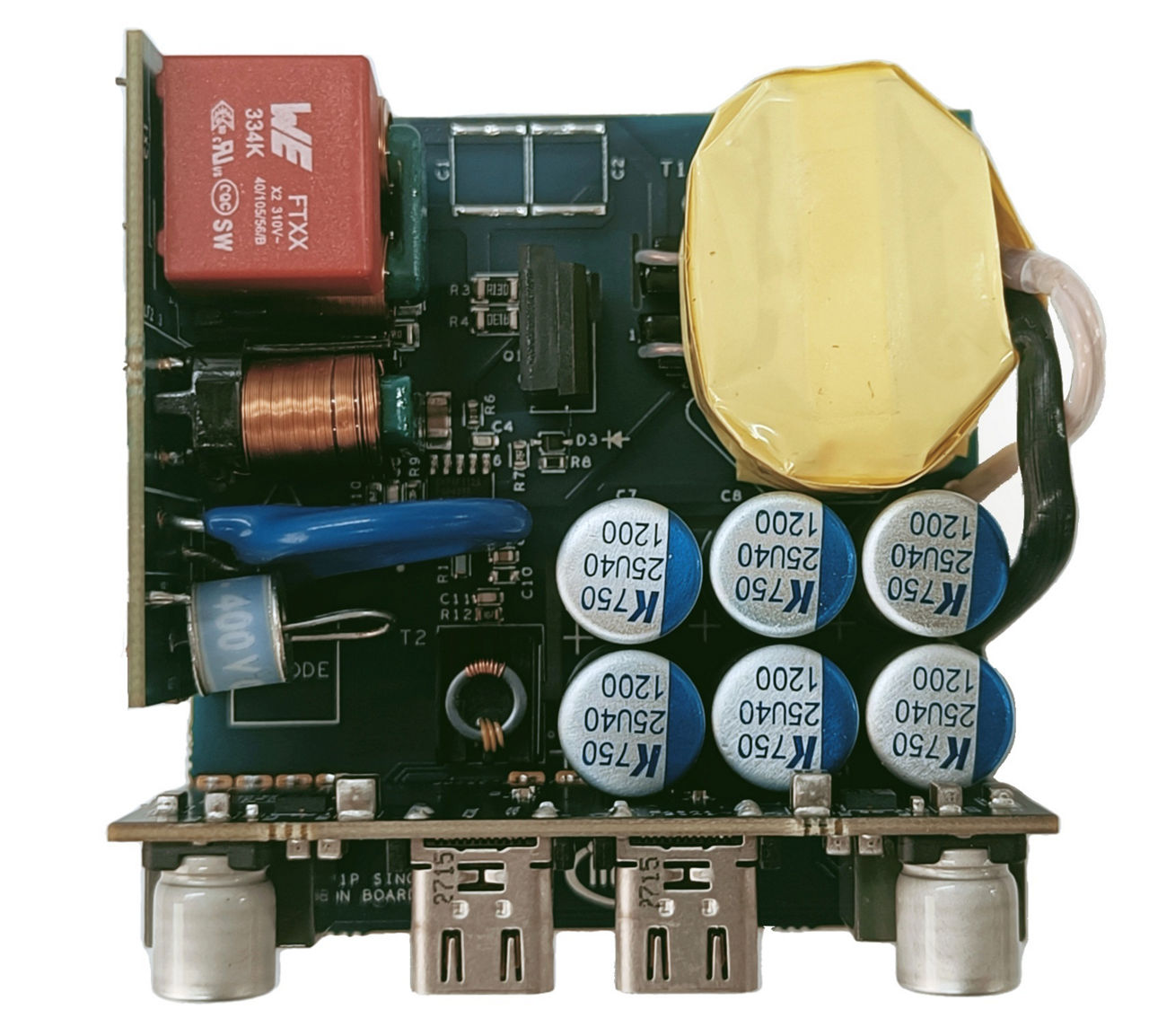

The REF_100W_2C_SSFB_PAG1 is a USB-PD multiport charger delivering 100W per USB-C port with dynamic power sharing. The EZ-PD™ PAG1 offers single-stage PFC + fixed frequency controller and synchronous rectification for BOM saving, achieving a power factor > 0.95. With a power density of 16.25 W/in³, it meets DOE Level VI efficiency requirements. Contact us for details.

Features

  • Dual USB-C PD 100 W Charger
  • Single stage PFC
  • Dynamic loadsharing
  • Power density of 16.25 W/in³
  • Integrated EZ-PD™ PAGx & EZ-PD™ CCG7DC
  • 60 mm x 60 mm x 28 mm board dimension
  • CE passing

Benefits

  • USB-C single-stage PFC Charger
  • Meets the DoE Level VI
  • Low standby power consumption
  • EN 55032 B standard compliant
  • Support firmware updgrade

Applications
